纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-006-00[01]) - HYDRAULIC CIRCUIT - OIL FILTER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
401 次

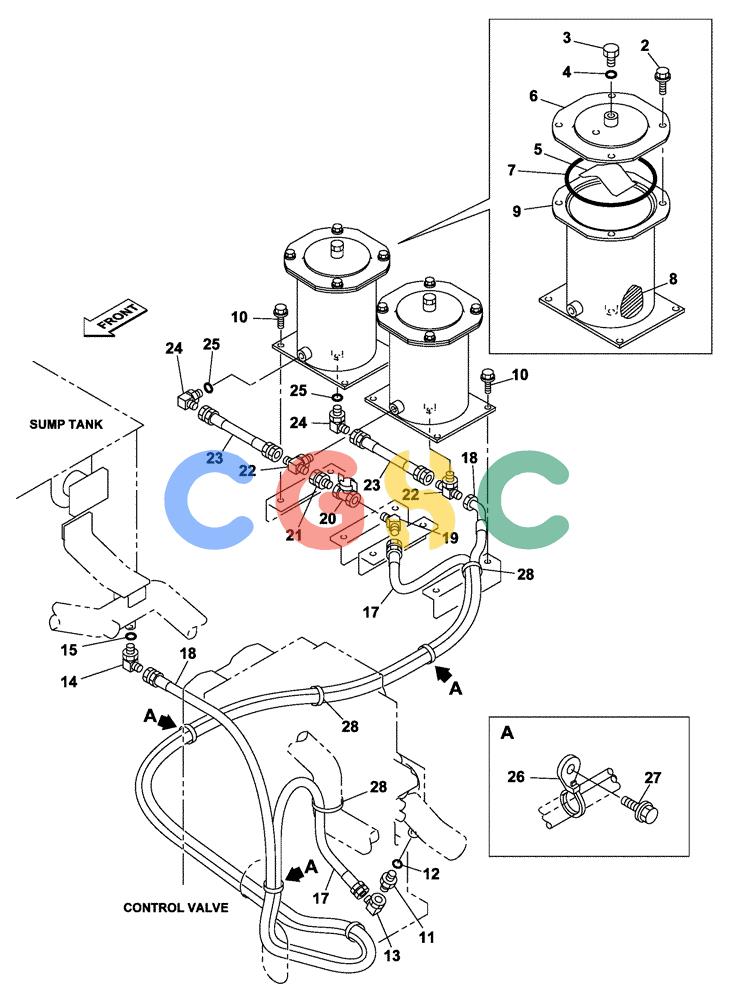

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | 166351A1 | [8] | BOLT,Sems, M10 x 20mm | SUMM10 x 20 |
| 3. | 159285A1 | [2] | PLUG | SUM |
| 4. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 5. | KHJ1588 | [2] | SPRING | SUM |
| 6. | KHJ1564 | [2] | COVER | SUM |
| 7. | KHJ1404 | [2] | O-RING | SUM |
| 8. | 159282A1 | [2] | HYDRAULIC OIL FILTER | SUM |
| 9. | KHJ2592 | [2] | HOUSING | SUM |
| 10. | 166347A1 | [8] | BOLT,Sems, M10 x 30mm | SUMM10 x 30 |
| 11. | 159848A1 | [1] | ORIFICE | SUM |
| 13. | 163814A1 | [1] | ELBOW | SUMG 1/4 |
| 14. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 17. | KHJ1766 | [1] | HOSE | SUM3200 mm |
| 18. | KHJ10070 | [1] | HYDRAULIC HOSE | SUM3600 mm |
| 19. | 153599A1 | [1] | ADAPTER | SUM |
| 20. | 158923A1 | [1] | DRAIN VALVE | SUM |
| 21. | 153601A1 | [1] | ADAPTER | SUM |
| 22. | 167321A1 | [2] | TEE | SUMG1/4 x G1/4 |
| 23. | KHJ2419 | [2] | HYDRAULIC HOSE,6.30 mm ID x 270.00 mm | SUM |
| 26. | KHR2584 | [3] | CLAMP | SUM |
| 27. | KHJ1215 | [3] | BOLT,Spcl | SUMM8 x 25 |
| 28. | 150071A1 | [1] | MOUNTING CLIP | SUM |
