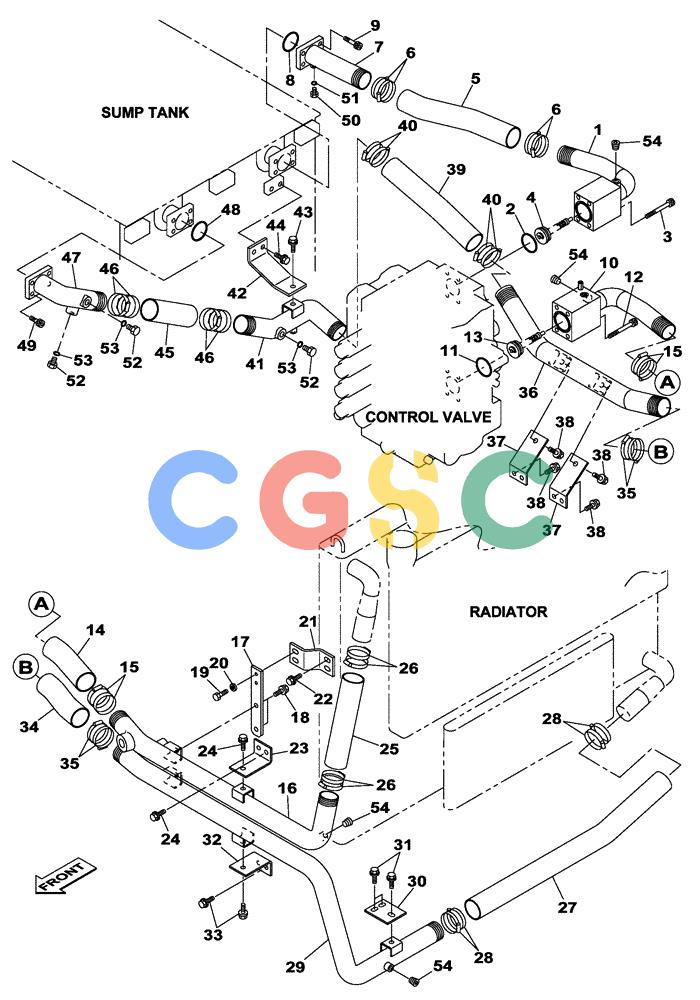

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-005-00[01]) - HYDRAULIC CIRCUIT - COOLER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
275 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ10420 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 2. | 154681A1 | [1] | O-RING | SUM |
| 3. | KBJ0340 | [4] | BOLT,Spcl | SUMM12 x 150 |
| 4. | KHJ1551 | [1] | CHECK VALVE | SUM Superseded by part number: KHJ18441 |
| 5. | KHJ12570 | [1] | HYDRAULIC HOSE | SUM430 mm |
| 6. | 150893A1 | [4] | CLAMP | SUM Superseded by part number: 152796A1 |
| 7. | KUJ10410 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 8. | 154641A1 | [1] | O-RING | SUM |
| 9. | 862-12035 | [4] | HEX SOC SCREW,M12 x 35mm, Cl 12.9 | SUM |
| 10. | KUJ10570 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 13. | KHJ1863 | [1] | CHECK VALVE | SUM Superseded by part number: KHJ18410 |
| 14. | KHJ10180 | [1] | HYDRAULIC HOSE | SUM370 mm |
| 16. | KUJ10430 | [1] | HYD. TUBE | SUM |
| 17. | KWJ0032 | [1] | SUPPORT | SUM |
| 18. | 166352A1 | [2] | BOLT | SUMM12 x 30 |
| 19. | 627-12035 | [2] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 20. | 150811A1 | [2] | WASHER | SUMW 12 Superseded by part number: 86625255 |
| 21. | KWJ0031 | [1] | SUPPORT | SUM |
| 22. | 152718A1 | [2] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 23. | KWJ0033 | [1] | SUPPORT | SUM |
| 25. | KHJ10170 | [1] | HYDRAULIC HOSE | SUM320 mm |
| 27. | KHJ10200 | [1] | HYDRAULIC HOSE | SUM900 mm |
| 29. | KUJ10440 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 30. | KWJ0034 | [1] | SUPPORT | SUM |
| 36. | KUJ10450 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 37. | KWJ0028 | [2] | SUPPORT | SUM |
| 41. | KUJ10400 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 42. | KWJ0026 | [1] | SUPPORT | SUM |
| 45. | KHJ1259 | [1] | HYDRAULIC HOSE | SUM |
| 47. | KWJ0024 | [1] | HYD. TUBE,52.9 mm ID x 60.5 mm OD | SUM |
| 50. | 153105A1 | [1] | PLUG | SUM |
| 51. | 154475A1 | [1] | O-RING | SUM |
| 52. | 152924A1 | [3] | PLUG | SUM |
| 53. | 150542A1 | [1] | O-RING | SUM Superseded by part number: 154503A1 |
| 54. | 150824A1 | [4] | PLUG | SUM |
