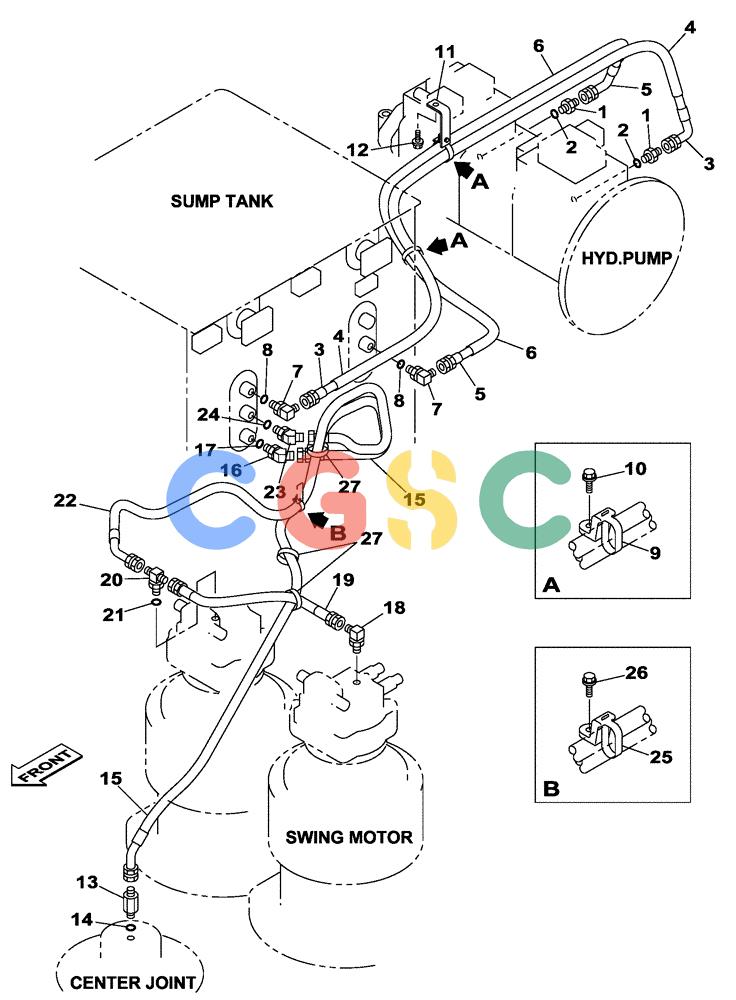

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-008-00[01]) - HYDRAULIC CIRCUIT - LEAK-OFF RETURN (WITH VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
350 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 151654A1 | [2] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 2. | 154503A1 | [1] | O-RING | SUM |
| 3. | MFJ60090 | [1] | HYDRAULIC HOSE | SUM2200 mm |
| 4. | 157868A1 | [1] | PLASTIC-RUBBER TUBE | SUM2000 mm Superseded by part number: KHR21080 |
| 5. | KUJ10520 | [1] | HYDRAULIC HOSE,19.00 mm ID x 1720.00 mm | SUM |
| 6. | 157867A1 | [1] | PLASTIC-RUBBER TUBE | SUM1500 mm Superseded by part number: KHR21080 |
| 7. | 157580A1 | [2] | ELBOW,90º, 3/4" O-Ring x 3/4" | SUMG 3/4 |
| 9. | KHR2581 | [2] | CLAMP | SUM |
| 10. | KHJ1215 | [2] | BOLT,Spcl | SUMM8 x 25 |
| 11. | KUJ10550 | [1] | SUPPORT | SUM |
| 12. | 152718A1 | [1] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 13. | 156664A1 | [1] | STUD | SUM |
| 15. | KAJ4862 | [1] | HOSE ASSY. | SUM2450 mm Superseded by part number: KAJ5037 |
| 16. | 157586A1 | [1] | ELBOW | SUMG 3/4 |
| 18. | 168609A1 | [1] | ELBOW | SUMG 1/2 x G3/4 |
| 19. | KUJ0238 | [1] | HYDRAULIC HOSE,19.00 mm ID x 470.00 mm | SUM |
| 20. | 163114A1 | [1] | TEE | SUMG 1/2 x G3/4 x G3/4 |
| 21. | 154487A1 | [1] | O-RING | SUM |
| 22. | KUJ10540 | [1] | HYDRAULIC HOSE,19.00 mm ID x 1450.00 mm | SUM |
| 27. | 150071A1 | [1] | MOUNTING CLIP | SUML=380 mm |
