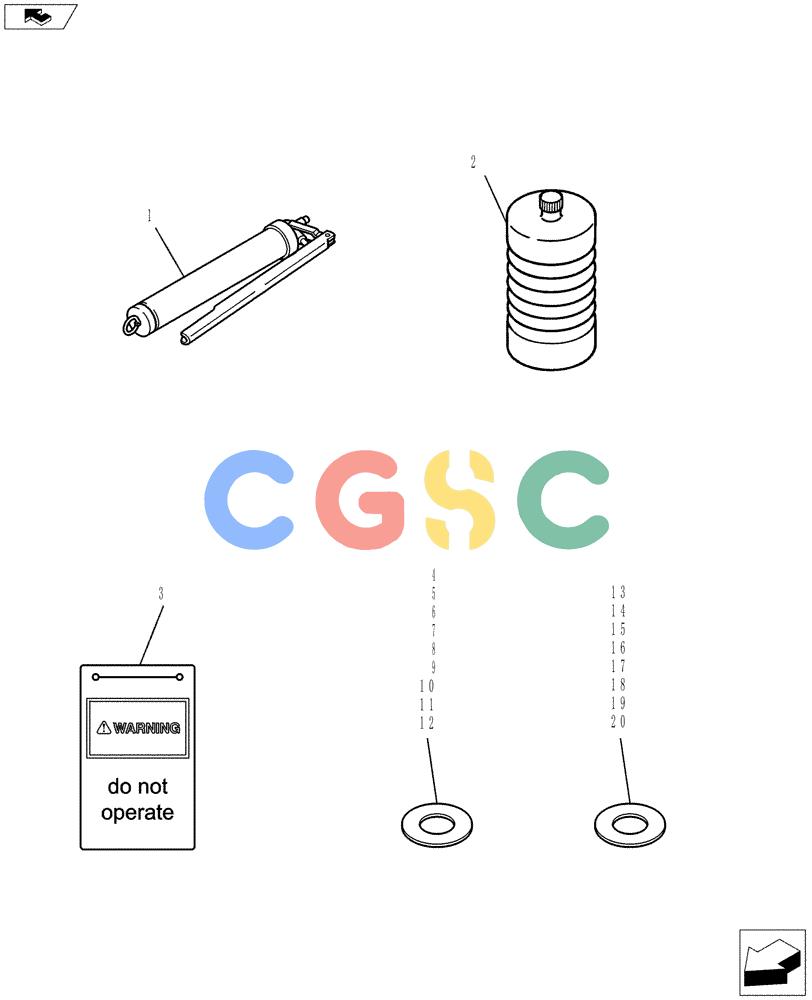

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (04-001[00]) - TOOL & ACCESSORY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
244 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY01T00029F3 | [1] | TOOL | KOB |
| 1. | YT01T01009F1 | [1] | GREASE GUN | KOBGrease |
| 2. | 2421Z183 | [1] | GREASE | KOBCartridge |
| 3. | YN20T01320P1 | [1] | LABEL | KOB |
| 4. | B16T0442D56 | [2] | SHIM,62mm ID x 100mm OD x 0.5mm Thk | KOB0.5 |
| 5. | B16T0442D43 | [2] | SHIM,62mm ID x 100mm OD x 0.9mm Thk | KOB0.9 |
| 6. | B16T0442D19 | [2] | SHIM,62mm ID x 100mm OD x 1.6mm Thk | KOB1.6 |
| 7. | YN12B01610D1 | [4] | SHIM | KOB2.0 |
| 8. | 2418T4037D7 | [2] | SHIM,67mm ID x 110mm OD x 0.5mm Thk | KOB0.5 |
| 9. | 2418T4037D3 | [2] | SHIM,67mm ID x 110mm OD x 0.9mm Thk | KOB0.9 |
| 10. | 2418T4037D5 | [2] | SHIM,67mm ID x 110mm OD x 1.6mm thk | KOB1.6 |
| 11. | YM12B01063D1 | [4] | SHIM,67mm ID x 110mm OD x 2mm Thk | KOB2.0 |
| 12. | B16T0442D57 | [2] | SHIM,72mm ID x 130mm OD x 0.5mm Thk | KOB0.5 |
| 13. | B16T0442D44 | [2] | SHIM,72mm ID x 130mm OD x 0.9mm Thk | KOB0.9 |
| 14. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB1.6 |
| 15. | YN12B01602D1 | [6] | SHIM,72mm ID x 130mm OD x 2mm Thk | KOB2.0 |
| 16. | B16T0442D5 | [1] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOB2.3 |
| 17. | LP02B01060D1 | [1] | SHIM | KOB0.5 |
| 18. | LP02B01060D2 | [1] | SHIM | KOB0.9 |
| 19. | LP02B01060D4 | [1] | SHIM | KOB1.6 |
| 20. | YN12B01601D1 | [2] | SHIM,82mm ID x 140mm OD x 2mm Thk | KOB2.0 |
