纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-012-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER (WITHOUT VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
386 次

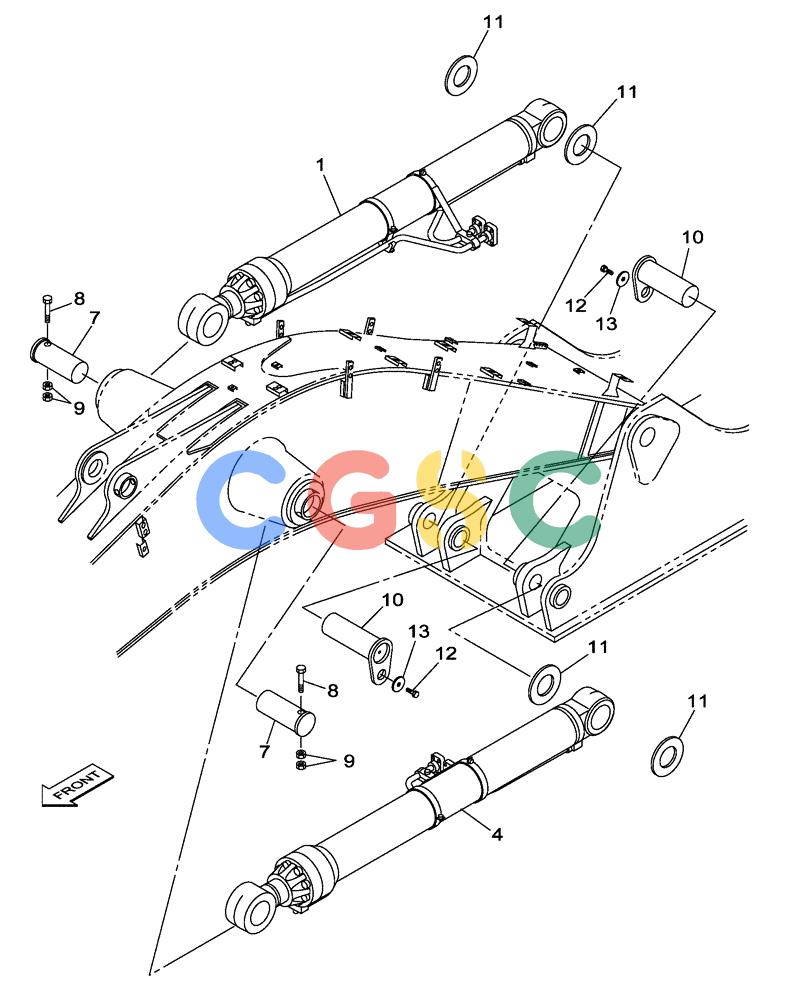

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV10010 | [1] | HYDRAULIC CYLINDER | SUM |
| 4. | KUV10020 | [1] | HYDRAULIC CYLINDER | SUM |
| 7. | KUV0026 | [2] | PIN | SUM |
| 8. | 132R030W240N | [2] | BOLT,M30 x 2 x 240mm | SUMM30 x 2 x 240 |
| 9. | 829-13430 | [4] | NUT,M30 x 1.5, Cl 10 | CASM30 x 2 Superseded by part number: 12166721 |
| 10. | KUV10200 | [2] | PIN | SUM |
| 11. | KHV0287 | [1] | SHIM | SUM |
| 12. | 102R020Y035R | [2] | BOLT | SUMM20 x 35 |
| 13. | KWV0090 | [2] | SPACER | SUM |
