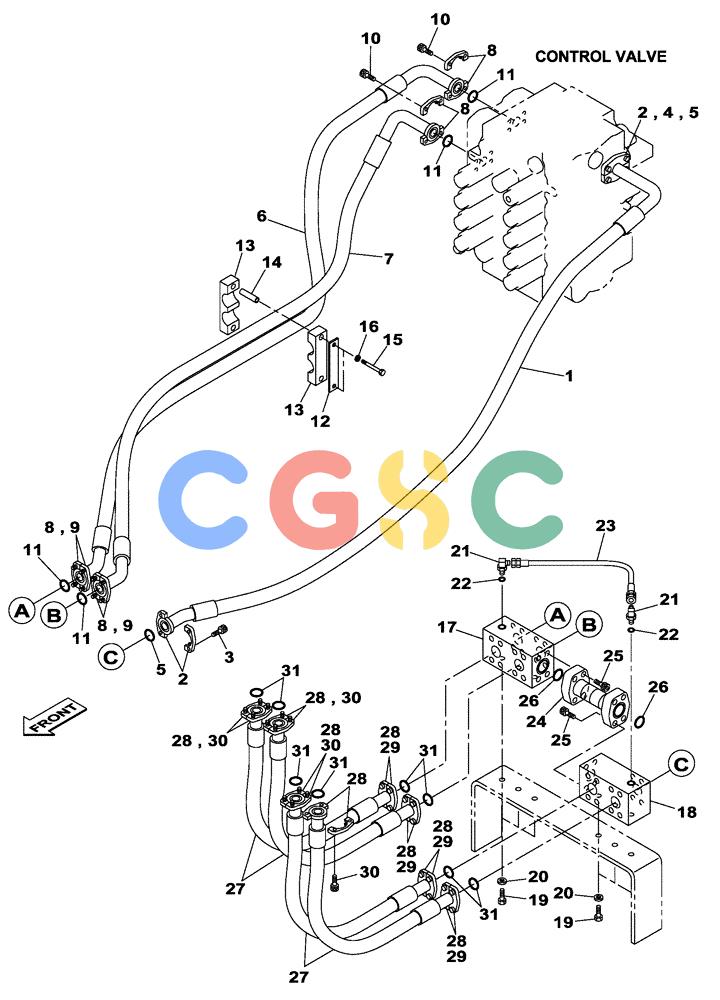

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-011-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
413 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUJ0216 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2510.00 mm | SUM |
| 2. | 150124A1 | [4] | FLANGE | SUM |
| 3. | 862-14040 | [4] | HEX SOC SCREW,M14 x 40mm, Cl 12.9 | CAS |
| 4. | 108R014Y045R | [8] | BOLT,Hex Skt, M14 x 45mm, Cl 12.9 | SUMM14 x 45 |
| 5. | 164450A1 | [2] | O-RING | SUM |
| 6. | KUJ0215 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2470.00 mm | SUM |
| 7. | KUJ10320 | [1] | HYDRAULIC HOSE,31.80 mm ID x 2220.00 mm | SUM |
| 12. | 152888A1 | [1] | PLATE, SPACER | SUMPLATE,SPACER |
| 13. | KUJ0213 | [2] | HOSE CLAMP | SUM |
| 14. | KUJ0036 | [2] | SPACER | SUM |
| 15. | 827-10090 | [2] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9 | CASM10 x 90 Superseded by part number: 828-10090 |
| 16. | 150409A1 | [2] | WASHER | SUMW M10 |
| 17. | KUJ0071 | [1] | MANIFOLD VALVE | SUM |
| 18. | KUJ0072 | [1] | MANIFOLD VALVE | SUM |
| 19. | 102R014Y030R | [6] | BOLT | SUMM14 x 30 |
| 20. | 150418A1 | [6] | WASHER | SUMW M14 |
| 21. | 150913A1 | [2] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 22. | 154467A1 | [2] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 23. | KUJ0074 | [1] | HYDRAULIC HOSE,6.30 mm ID x 420.00 mm | SUM |
| 24. | KUJ0073 | [1] | TUBE ASSY.,34.7 mm ID x 42.7 mm OD | SUM |
| 27. | KWJ10300 | [4] | HYDRAULIC HOSE,31.80 mm ID x 1280.00 mm | SUM |
