神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (02-003[00]) - SLEWING RING ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
938 次

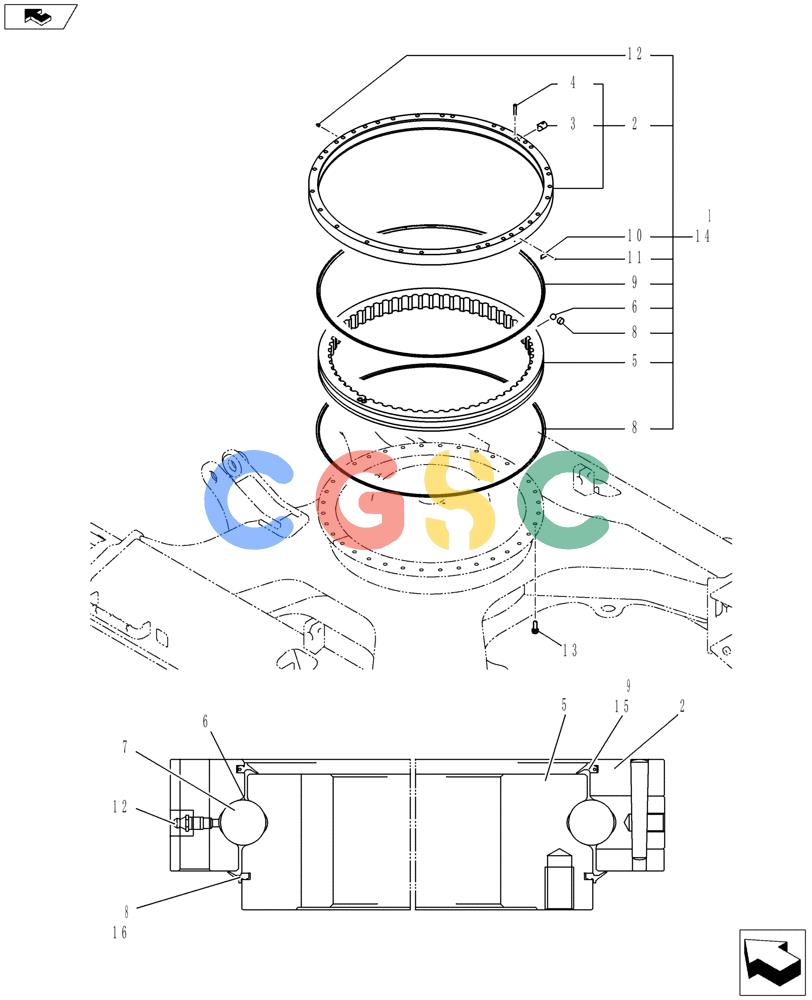

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY40F00008F1 | [1] | Slewing | |
| 1. | YY40F00009F1 | [1] | RING | KOBSlewing |
| 2. | YY40F01007P1 | [1] | Outer | |
| 3. | YY40F01010P1 | [1] | | |
| 4. | 2419T1964D7 | [1] | PIN,10mm OD x 56mm L | KOB |
| 5. | YY40F01008P1 | [1] | RACE | KOBInner Superseded by part number: YY40F00009F1 |
| 6. | 2425T321 | [105] | BALL | KOB |
| 7. | YY40F01009P1 | [105] | | |
| 8. | YN40F01024DD | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 9. | YN40F01024DE | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 10. | YN22T00194P1 | [1] | TYPE PLATE | KOB |
| 11. | 2420Z1036D3 | [2] | CLEVIS | KOB |
| 12. | ZG91S02000 | [1] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 13. | LP53D01001P1 | [36] | BOLT,Hex, M16 x 2 x 45mm | KOBCap Superseded by part number: LP53D01001P2 |
| . . | YY40F00008F2 | [1] | Slewing, Purchased Product (Antex) | |
| 14. | YY40F00011F2 | [1] | SLEWING RING | KOBSlewing |
| 15. | YN40F01024DE | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
| 16. | YN40F01024DD | [1] | SEAL | KOB Superseded by part number: YN40F01024D4 |
