神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (02-002[00]) - LOW GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
814 次

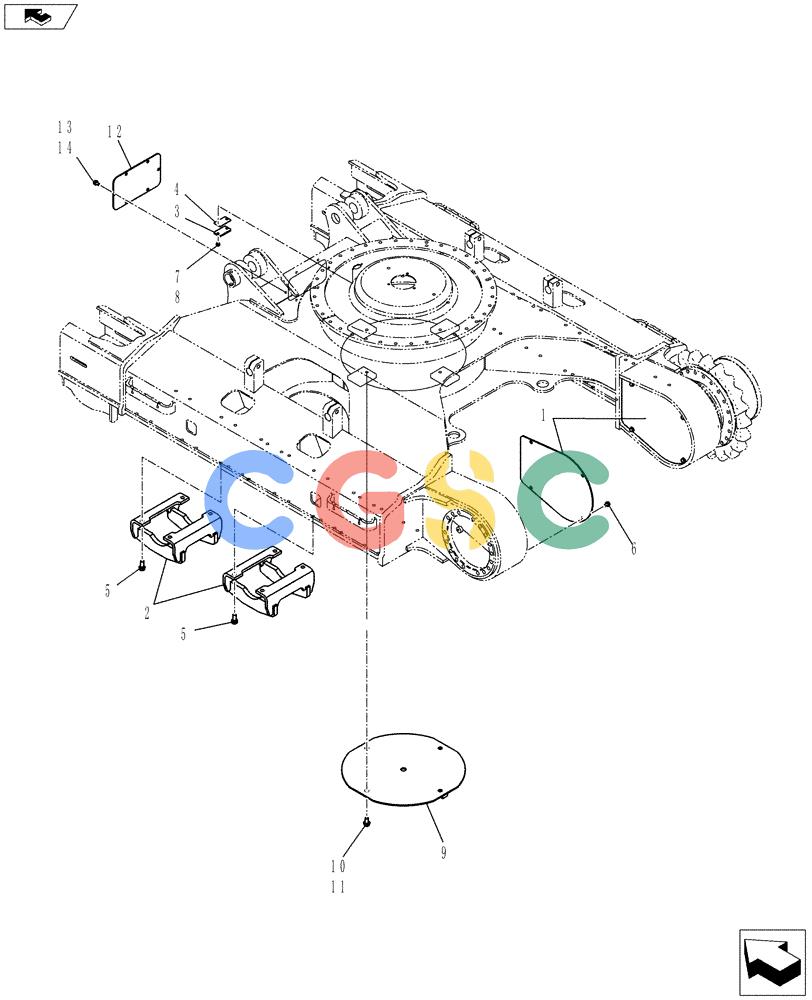

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY01F00014F1 | [1] | | |
| 1. | YN01F01080P1 | [2] | COVER | KOB |
| 2. | YN63D00003P1 | [4] | GUIDE | KOBTrack Superseded by part number: YN63D00003P2 |
| 3. | 2422T556 | [1] | PLATE | KOB |
| 4. | 2418T12274 | [1] | PACKING | KOB |
| 5. | 2420P1580D1 | [16] | SCREW,M18 x 1.5 x 40mm | KOBCap |
| 6. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBSems |
| 7. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBCap |
| 8. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| 9. | YY24C01031P1 | [1] | COVER ASSY | KOB |
| 10. | ZS13C18035 | [4] | CAPSCREW | KOBSCREW Cap |
| 11. | ZW13H18000 | [4] | WASHER | KOB |
| 12. | YY02F01066P1 | [1] | COVER | KOB |
| 13. | ZW16H12000 | [6] | WASHER | KOB |
| 14. | ZS18C12025 | [6] | SCREW,Hex, M12 x 25mm | KOBCap |
