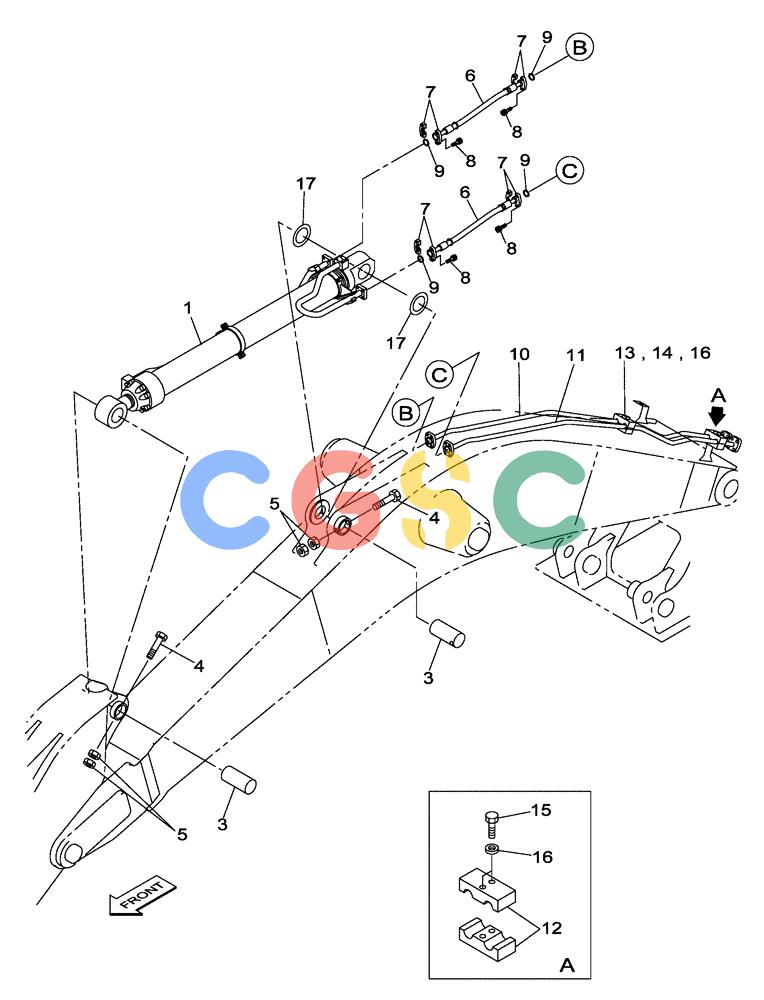

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-017-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (8.40 M) - (WITHOUT VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
577 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV10030 | [1] | HYDRAULIC CYLINDER | SUM |
| 3. | KUV0025 | [2] | PIN | SUM |
| 4.. | 132R030W260N | [2] | BOLT,M30 x 2 x 260mm | SUMM30 x 2 x 260 |
| 5. | 829-13430 | [4] | NUT,M30 x 1.5, Cl 10 | CASM30 x 2 Superseded by part number: 12166721 |
| 6. | KUV0051 | [2] | HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm | SUM |
| 7. | KTJ0169 | [8] | FLANGE | SUM |
| 8. | 862-16050 | [16] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50 Superseded by part number: 9817243 |
| 9. | 168211A1 | [4] | O-RING | SUM |
| 10. | KUV0246 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 11. | KUV0245 | [1] | HYD. TUBE,38.6 mm ID x 48.6 mm OD | SUM |
| 12. | KUV0175 | [2] | CLAMP BRACKET | SUM |
| 13. | KUV0058 | [2] | CLAMP BRACKET | SUM |
| 14. | 827-16090 | [2] | BOLT,Hex, M16 x 2 x 90mm, Cl 10.9 | CAS Superseded by part number: 86521733 |
| 15. | 827-16110 | [2] | BOLT,Hex, M16 x 2 x 110mm, Cl 10.9 | CAS Superseded by part number: 84036080 |
| 16. | 150814A1 | [4] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | SUMW 16 |
| 17. | KHV0287 | [1] | SHIM | SUM |
