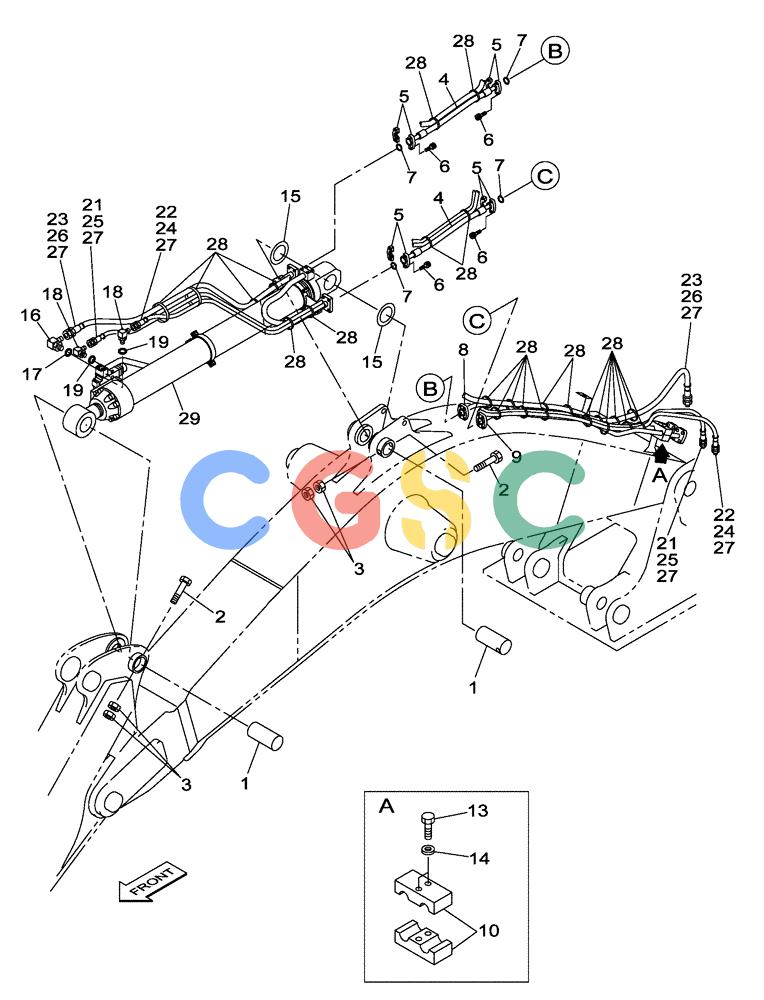

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-018-00[01]) - HYDRAULIC CIRCUIT - DIPPER CYLINDER - BOOM (7.25 M) - (WITH VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
236 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUV0025 | [2] | PIN | SUM |
| 2. | 132R030W260N | [2] | BOLT,M30 x 2 x 260mm | SUMM30 x 2 x 260 |
| 3. | 829-13430 | [4] | NUT,M30 x 1.5, Cl 10 | CASM30 x 2 Superseded by part number: 12166721 |
| 4. | KUV0051 | [2] | HYDRAULIC HOSE,38.10 mm ID x 1550.00 mm | SUM |
| 5. | KTJ0169 | [8] | FLANGE | SUM |
| 6. | 862-16050 | [16] | HEX SOC SCREW,M16 x 50mm, Cl 12.9 | CASM16 x 50 Superseded by part number: 9817243 |
| 7. | 168211A1 | [4] | O-RING | SUM |
| 8. | KUV0332 | [1] | HYD. TUBE | SUM |
| 9. | KUV0333 | [1] | HYD. TUBE | SUM |
| 10. | KUV0175 | [2] | CLAMP BRACKET | SUM |
| 13. | 827-16110 | [2] | BOLT,Hex, M16 x 2 x 110mm, Cl 10.9 | CAS Superseded by part number: 84036080 |
| 14. | 150814A1 | [2] | WASHER,17mm ID x 32mm OD x 4.5mm Thk | SUMW 16 |
| 15. | KHV0287 | [1] | SHIM | SUM |
| 16. | 157580A1 | [1] | ELBOW,90º, 3/4" O-Ring x 3/4" | SUM |
| 17. | 154503A1 | [1] | O-RING | SUM |
| 18. | 150916A1 | [2] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 19. | 154475A1 | [1] | O-RING | SUM |
| 21. | KHJ2557 | [1] | HOSE | SUM8000 mm |
| 22. | KHJ2558 | [1] | HOSE | SUM8300 mm |
| 23. | KUV0324 | [1] | HYDRAULIC HOSE,19.00 mm ID x 7700.00 mm | SUM |
| 24. | 168877A1 | [1] | PLASTIC-RUBBER TUBE | SUM7600 mm Superseded by part number: KHV11590 |
| 25. | 168876A1 | [1] | PLASTIC-RUBBER TUBE | SUM7200 mm Superseded by part number: KHV11590 |
| 26. | KHV0482 | [1] | PLASTIC-RUBBER TUBE | SUM7500 mm Superseded by part number: KHV11600 |
| 27. | 150067A1 | [6] | MOUNTING CLIP | SUM150 mm |
| 28. | 150071A1 | [25] | MOUNTING CLIP | SUM380 mm |
