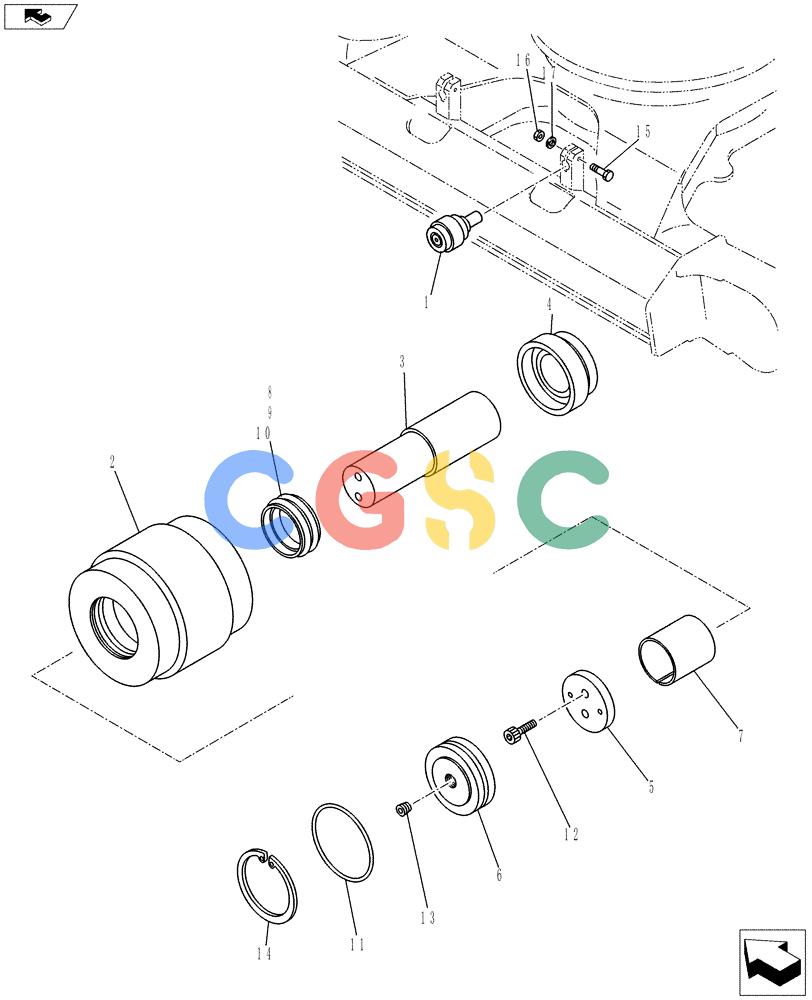

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (02-008[00]) - UPPER ROLLER ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
994 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN64D01068F1 | [4] | ROLLER | KOBAssembly, Incl 2 - 14, Serial Range: LH02-01501-LH02-01528 Superseded by part number: YN64D01144F1 |
| 2. | 2413N469 | [1] | ROLLER | KOB |
| 3. | YN64D01069P1 | [1] | SHAFT | KOB Superseded by part number: YN64D01144F1 |
| 4. | 2418P21176 | [1] | COLLAR | KOB Superseded by part number: 2418P22958 |
| 5. | YN64D01038P1 | [1] | PLATE | KOB |
| 6. | YN64D01026P1 | [1] | COVER | KOB |
| 7. | 2405T852 | [1] | BUSHING,45mm ID x 50mm OD x 50mm L | KOB |
| 8. | 2445R361F1 | [1] | SEAL,48mm ID x 68.6mm OD x 27mm Thk | KOBFloating |
| 9. | 2445R361S1 | [2] | SEAL | KOB |
| 10. | 2445R361S2 | [2] | O-RING | KOB |
| 11. | ZD11P06500 | [1] | O-RING | KOB |
| 12. | YN64D01016P1 | [2] | BOLT | KOB |
| 13. | YN55V01090P1 | [1] | PLUG | SM |
| 14. | ZR26X07500 | [1] | RING | KOBSnap |
| 15. | YN52F01100D3 | [4] | CAP | KOBScrew |
| 16. | ZN13C20016 | [4] | NUT | KOB |
| 17. | ZW13H20000 | [4] | WASHER | KOB |
