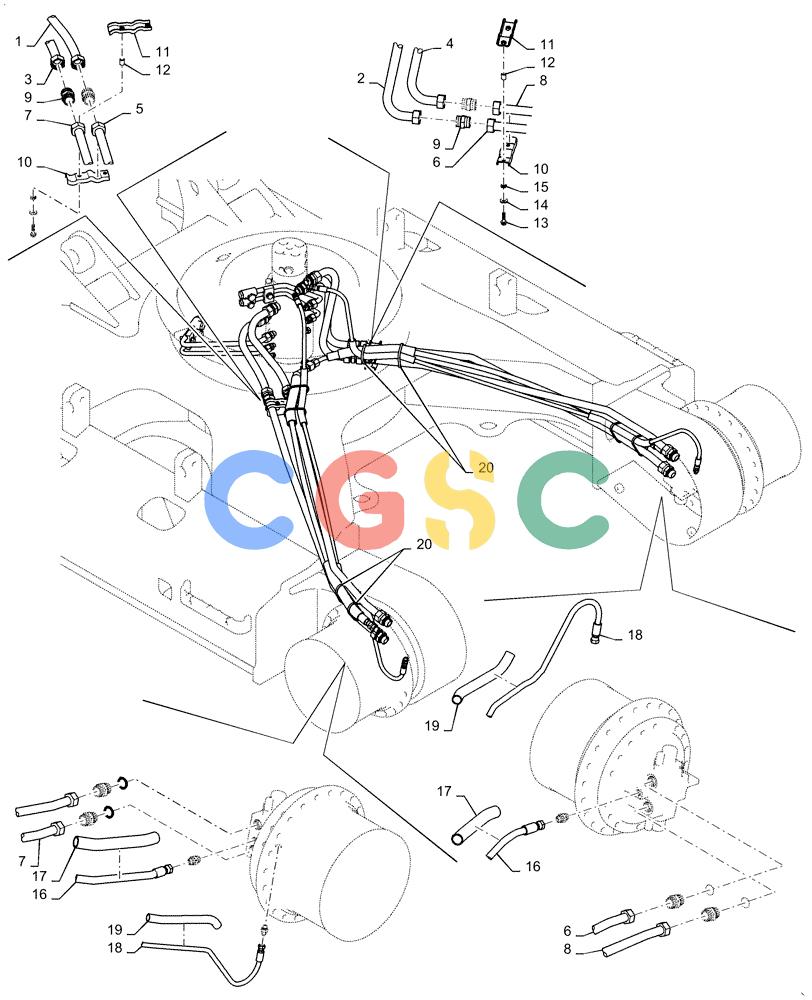

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (02-012[01]) - HYDRAULIC LINES, LOWER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
863 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY02H01328P1 | [1] | TUBE | KOB |
| 2. | YY02H01329P1 | [1] | TUBE | KOB |
| 3. | YY02H01330P1 | [1] | TUBE | KOB |
| 4. | YY02H01331P1 | [1] | TUBE | KOB |
| 5. | YY02H01332P1 | [1] | TUBE | KOB |
| 6. | YY02H01333P1 | [1] | TUBE | KOB |
| 7. | YY02H01334P1 | [1] | TUBE | KOB |
| 8. | YY02H01335P1 | [1] | TUBE | KOB |
| 9. | ZA23B28000 | [4] | CONNECTION | KOB |
| 10. | YN02H01187P1 | [2] | CLAMP | KOB |
| 11. | YN02H01188P1 | [2] | CLAMP | KOB |
| 12. | 2418T24324D2 | [4] | SPACER | KOB |
| 13. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOB |
| 14. | ZW26X08000 | [4] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 15. | ZS18C08040 | [4] | SCREW,Hex, M8 x 40mm | KOBCap |
| 16. | ZX41M08155 | [2] | HOSE | KOB |
| 17. | YN02H01511D1 | [4] | HYDRAULIC HOSE | KOB |
| 18. | ZX23M04210 | [2] | HOSE | KOB |
| 19. | 2420Z1224D4 | [4] | HOSE | KOB |
| 20. | PY01P01043D8 | [8] | CABLE TIE,102mm L | KOB |
