神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (02-013[00]) - DOZER ASSEMBLY (PTPA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
832 次

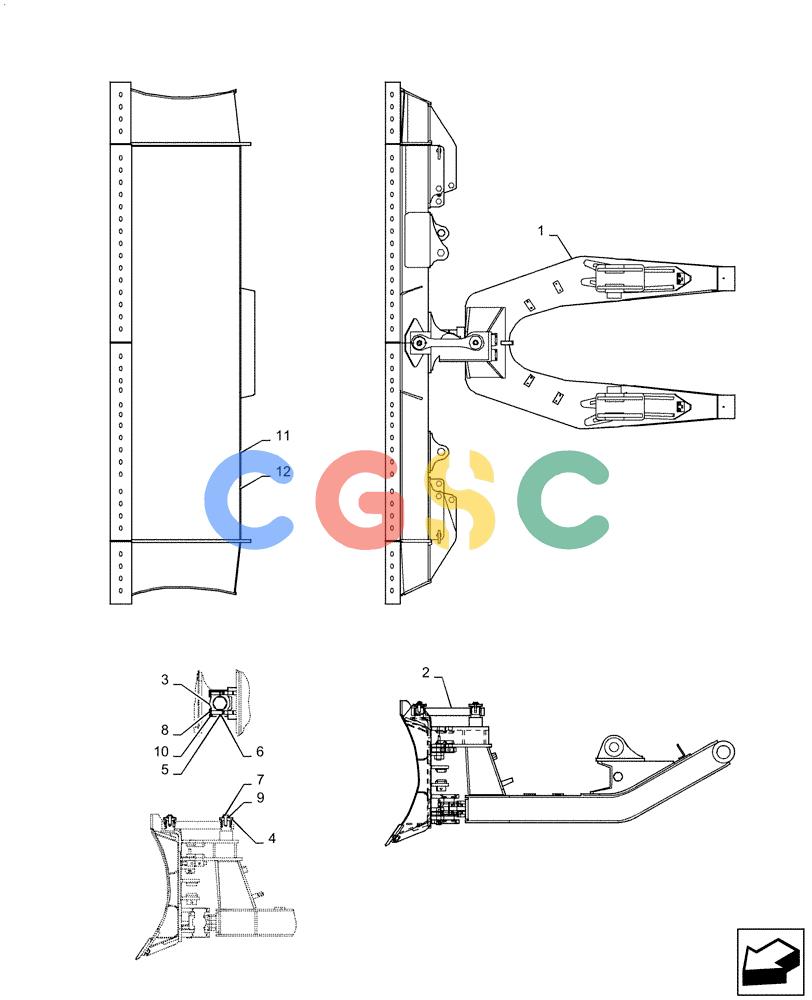

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY51BU1021F1 | [1] | ARM | KOB |
| 2. | YY51B01043F1 | [1] | LINK | KOB |
| 3. | YY51BU1096P1 | [1] | BRACKET | KOBTrunion Ball Assembly With Mounting Bracket |
| 3. | YY51B01038P1 | [1] | CAP | KOBAttaches to Bracket |
| 3. | YY51BU1032P1 | [1] | BRACKET | KOBMounting, (Welded to Blade) |
| 4. | YY51B01050P1 | [2] | RETAINER | KOB |
| 5. | YY51B01052P1 | [2] | SHIM | KOB |
| 6. | YY51B01053P1 | [8] | SHIM | KOBF1 Only |
| 7. | ZS18C16045 | [2] | SCREW,Hex, M16 x 45mm | KOBCap |
| 8. | YY51B01054P1 | [4] | SCREW | KOBCap |
| 9. | ZW16H16000 | [2] | WASHER | KOB |
| 10. | ZW16H22000 | [4] | WASHER | KOB |
| 11. | YY51BU0003F1 | [1] | DOZER BLADE | SM Superseded by part number: YY51BU0003F2 |
| 12. | YY51BU0003F2 | [1] | DOZER BLADE | KOBAssy. (PTPA) |
