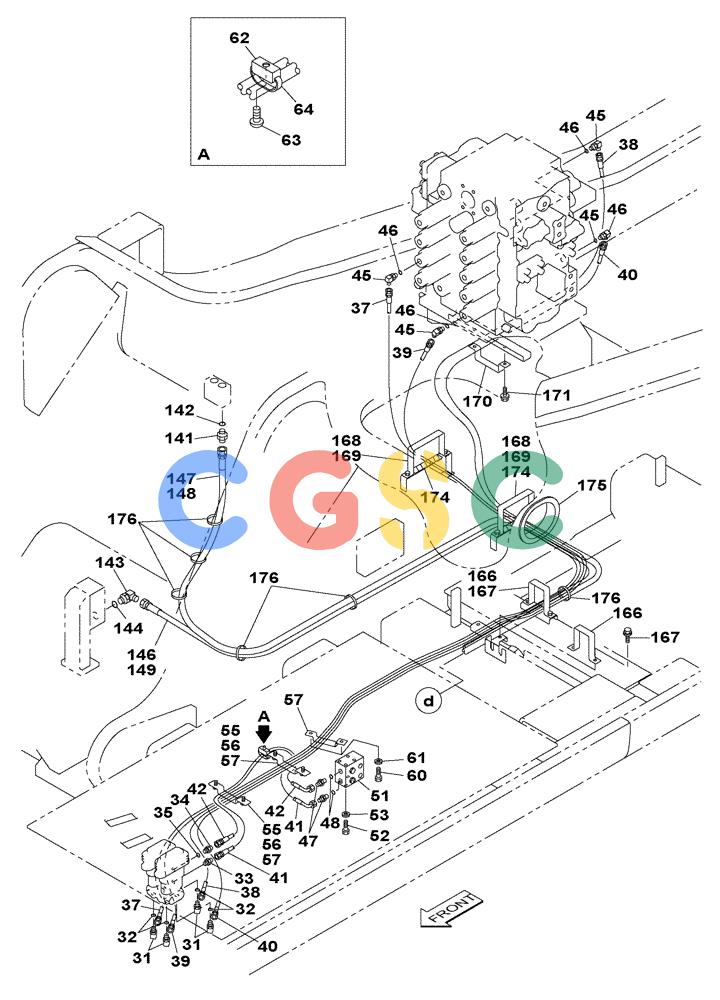

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-027-01[01]) - HYDRAULIC CIRCUIT - TRAVEL PILOT (WITH VALVE, PRESSURE RELIEF) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
346 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 31. | 150913A1 | [4] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 32. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 33. | 161841A1 | [1] | HYD CONNECTOR | SUM |
| 34. | 152127A1 | [1] | HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT | SUM |
| 37. | 157840A1 | [1] | HOSE ASSY. | SUM4250 mm |
| 38. | 164941A1 | [1] | HYDRAULIC HOSE,6.40 mm ID x 4500.00 mm | SUM4500 mm |
| 41. | KAJ3524 | [1] | HYDRAULIC HOSE | SUM900mm |
| 42. | 159019A1 | [1] | HOSE ASSY. | SUM900 mm |
| 45. | 156554A1 | [4] | ELBOW | SUM |
| 51. | KRJ5903 | [1] | MANIFOLD | SUM |
| 52. | 828-8100 | [4] | BOLT,Hex, M8 x 1.25 x 100mm, Cl 10.9 | CASM8 x 100 |
| 53. | 153081A1 | [4] | WASHER | SUMW M8 |
| 55. | 627-8012 | [4] | BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd | SUM Superseded by part number: 43231 |
| 57. | KHJ1394 | [3] | CLAMP | SUM |
| 62. | 150860A1 | [1] | COLLAR | SUM |
| 63. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 64. | 150071A1 | [1] | MOUNTING CLIP | SUM380 mm |
| 141. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 142. | 154475A1 | [1] | O-RING | SUM |
| 143. | 150916A1 | [1] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 146. | KHJ13200 | [1] | HYDRAULIC HOSE | SUM4100 mm |
| 148. | KRH1445 | [1] | PLASTIC-RUBBER TUBE | SUM3600 mm Superseded by part number: KHH12760 |
| 149. | KRH1434 | [1] | PLASTIC-RUBBER TUBE | SUM2600 mm Superseded by part number: KHH12760 |
| 166. | KHJ10250 | [2] | CLAMP | SUM |
| 167. | 166350A1 | [4] | BOLT | SUMM8 x 20 |
| 168. | KHJ1249 | [2] | CLAMP | SUM |
| 170. | 159039A1 | [1] | CLAMP | SUM |
| 174. | KHJ1250 | [3] | SEAL, RUBBER | SUMRUBBER SEAL |
| 175. | KTA1036 | [1] | SEAL, RUBBER | SUMRUBBER SEAL |
