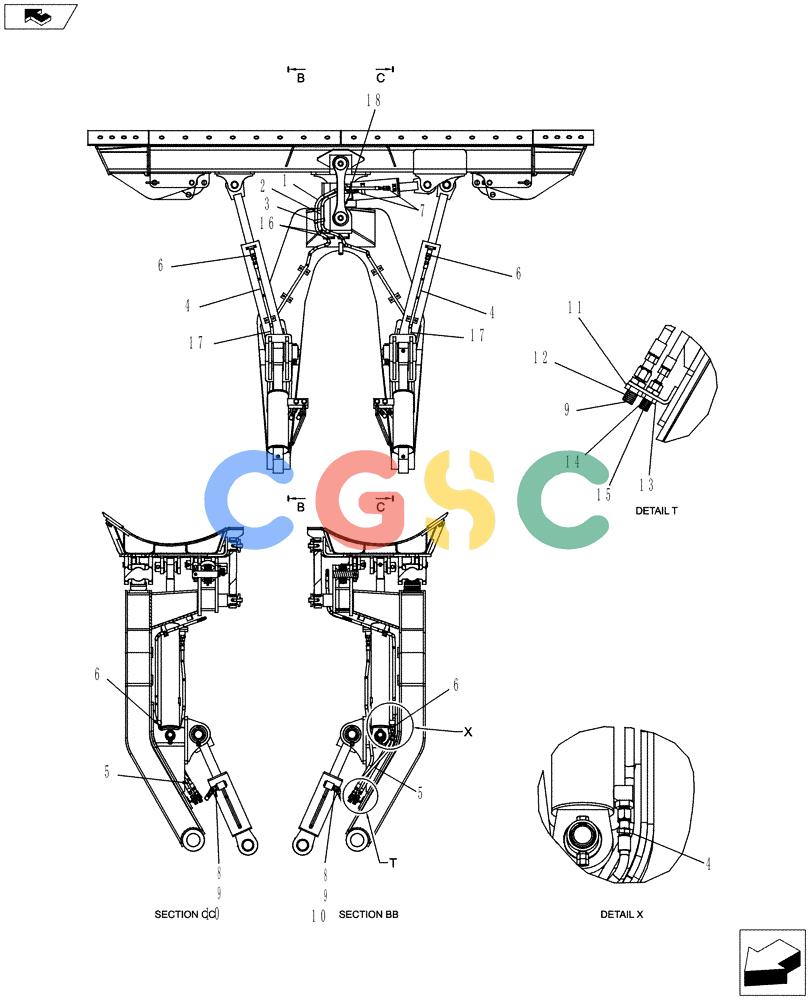

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (02-020[00]) - HYDRAULIC LINES, DOZER (PTPA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
183 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY02HU1016D4 | [1] | HOSE | KOB |
| 2. | YY02HU1016D1 | [1] | HOSE | KOB |
| 3. | YX03H01046P1 | [3] | CLIP | KOB |
| 4. | YY02HU1022D1 | [2] | HOSE | KOB |
| 5. | YY02HU1022D3 | [2] | HOSE | KOB |
| 6. | YM19HU1004P1 | [4] | HYD CONNECTOR | KOB |
| 7. | YM19HU1001P1 | [2] | ELBOW | KOB |
| 8. | YM02HU1122P1 | [4] | ELBOW | KOB |
| 9. | YM19HU1006P1 | [12] | O-RING,12.42mm ID x 1.78mm Width | KOB |
| 10. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 11. | YM02HU1120P1 | [4] | BHD LOCK NUT | KOB Superseded by part number: 86639083 |
| 12. | YY02HU1017P1 | [4] | HYD CONNECTOR | KOB |
| 13. | YM02HU1121P1 | [2] | BHD LOCK NUT | KOB Superseded by part number: 87010704 |
| 14. | YY02HU1018P1 | [2] | HYD CONNECTOR | KOB |
| 15. | YM19HU1003P1 | [4] | O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro | KOB Superseded by part number: 9993141 |
| 16. | 2414Z199D025 | [2] | PROTECTIVE SLEEVE | KOBHose |
| 17. | 2414Z199D040 | [2] | PROTECTIVE SLEEVE | KOBHose |
| 18. | PY01P01043D2 | [1] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
