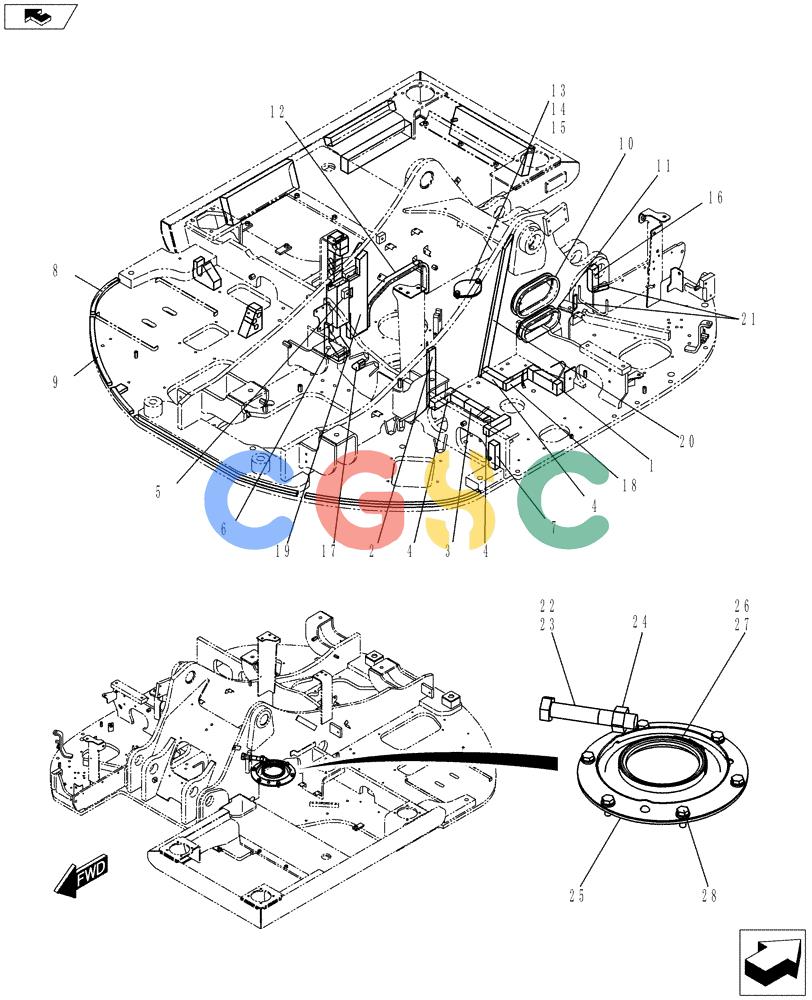

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-002[02]) - FRAME GROUP, UPPER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
866 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY52F01400P1 | [1] | FOAM INSULATION | KOB |
| 2. | YY52F01580P1 | [1] | FOAM INSULATION | KOB |
| 3. | YY52F01552P1 | [1] | FOAM INSULATION | KOB |
| 4. | YY52F01553P1 | [3] | FOAM INSULATION | KOB |
| 5. | YY52F01364P1 | [1] | FOAM INSULATION | KOB |
| 6. | YY52F01365P1 | [1] | FOAM INSULATION | KOB |
| 7. | YY52F01375P1 | [1] | FOAM INSULATION | KOB |
| 8. | YY52F01567D2 | [1] | FOAM INSULATION | KOB |
| 9. | YY52F01567D3 | [1] | FOAM INSULATION | KOB |
| 10. | YY64H01101P1 | [1] | GROMMET | KOB |
| 11. | YY64H01100P1 | [1] | GROMMET | KOB |
| 12. | YY52F01572D1 | [1] | RUBBER | KOB |
| 13. | YN52F01159P1 | [1] | PLATE | KOB |
| 14. | 2416Z434 | [1] | PACKING | KOB |
| 15. | ZM73C10025 | [2] | BOLT,M10x25mm - Course Thread | KOBSems |
| 16. | YY52F01398P1 | [1] | FOAM INSULATION | KOB |
| 17. | YY52F01399P1 | [1] | FOAM INSULATION | KOB |
| 18. | YY52F01554P1 | [1] | FOAM INSULATION | KOB |
| 19. | YY52F01574P1 | [1] | INSULATION | KOB |
| 20. | YY52F01557P1 | [1] | FOAM INSULATION | KOB |
| 21. | YY52F01590P1 | [2] | FLEXIBLE HOSE | KOBRubber |
| 22. | YY52F00156F1 | [1] | Upp. | |
| 23. | ZS18F20140 | [1] | SCREW | KOBCap |
| 24. | ZN18F20016 | [1] | NUT | KOB |
| 25. | YN52F01615P1 | [1] | PLATE | SM |
| 26. | YY52F01575P1 | [1] | SEAL | KOB |
| 27. | ZC16X14800 | [1] | CLIP | KOB |
| 28. | ZM73C10025 | [6] | BOLT,M10x25mm - Course Thread | KOBSems |
