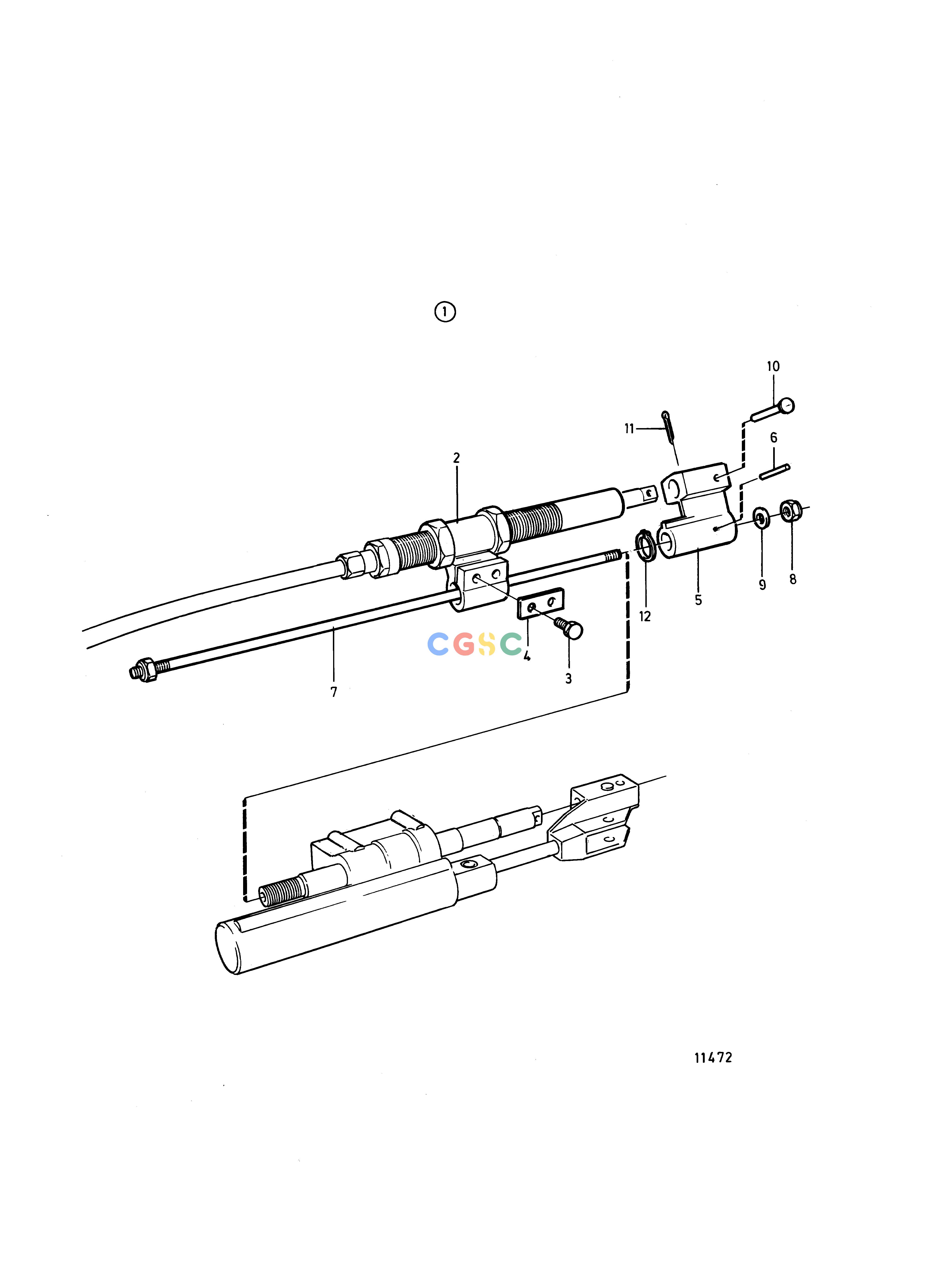

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Steering SystemConnecting Kit for Narrow HullsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
689 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872375
|
[1] |
Connector kit
|
|
| 2. |
|
|
|
|
| 3. |
955297
|
[2] |
Hexagon screw
|
|
| 4. |
872445
|
[1] |
Lock washer
|
|
| 5. |
|
|
|
|
| 6. |
951979
|
[1] |
Spring pin
|
|
| 7. |
|
|
|
|
| 8. |
966175
|
[1] |
Lock nut
|
|
| 9. |
955900
|
[1] |
Washer
|
|
| 10. |
851382
|
[1] |
Clevis pin
|
|
| 11. |
964960
|
[1] |
Split pin
|
|
| 12. |
914456
|
[1] |
Snap ring
|
|
