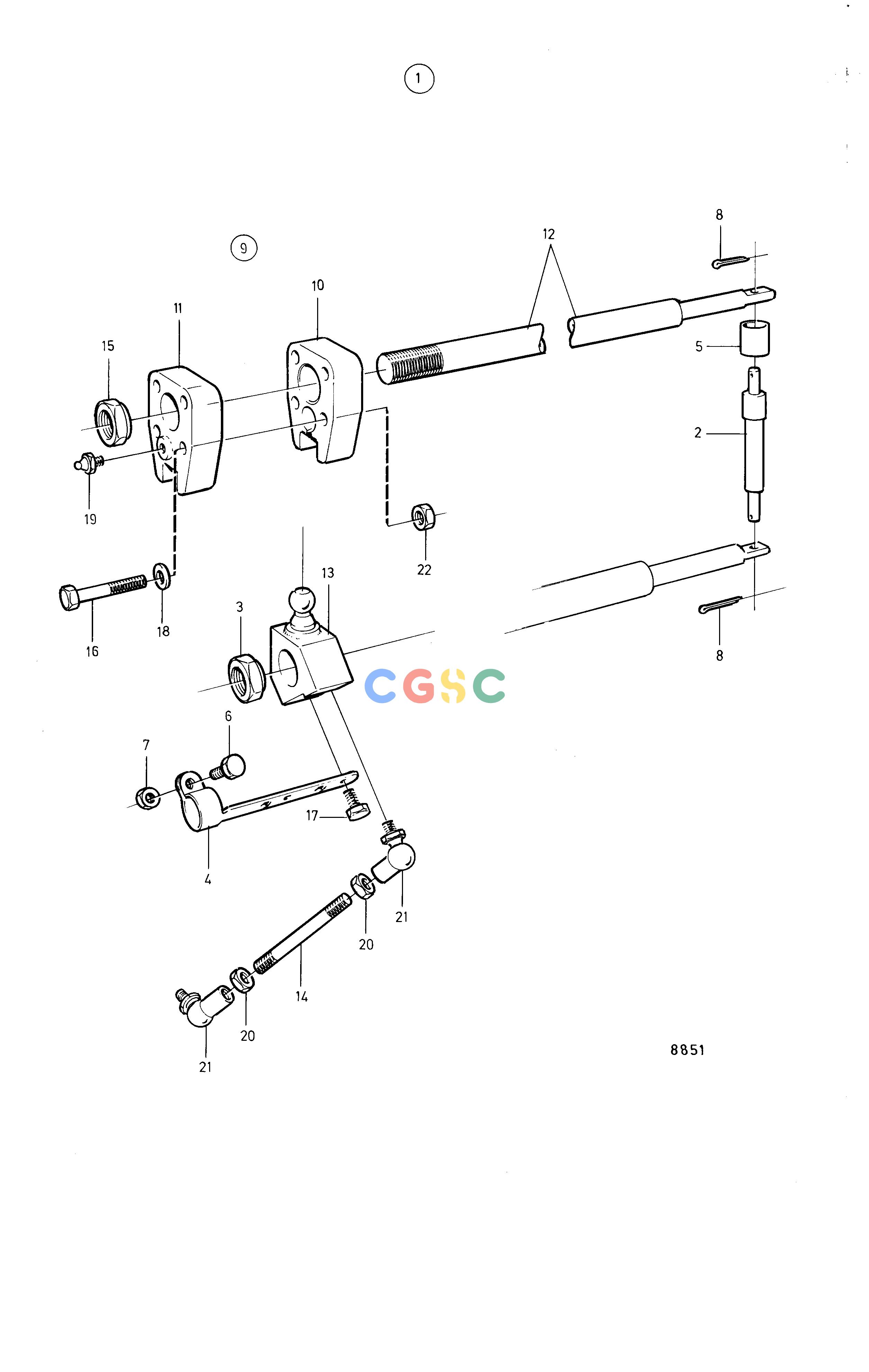

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Steering SystemDS Unit for Power SteeringEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
246 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
828963
|
[1] |
Ds kit
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
|
|
|
|
| 5. |
807183
|
[1] |
Spacer sleeve
|
|
| 6. |
955272
|
[1] |
Hexagon screw
|
|
| 7. |
963105
|
[1] |
Lock nut
|
|
| 8. |
967707
|
[2] |
Split pin
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
|
|
|
|
| 13. |
|
|
|
|
| 14. |
|
|
|
|
| 15. |
853306
|
[1] |
Nut
|
|
| 16. |
940101
|
[2] |
Hexagon screw
|
|
| 17. |
940199
|
[1] |
Hexagon screw
|
|
| 18. |
949607
|
[2] |
Spring washer
|
|
| 19. |
951739
|
[1] |
Lubricating nipple
|
|
| 20. |
955782
|
[2] |
Hexagon nut
|
|
| 21. |
959080
|
[2] |
Angle ball joint
|
|
| 22. |
963105
|
[2] |
Lock nut
|
|
