沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Steering SystemLink Rod KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
623 次

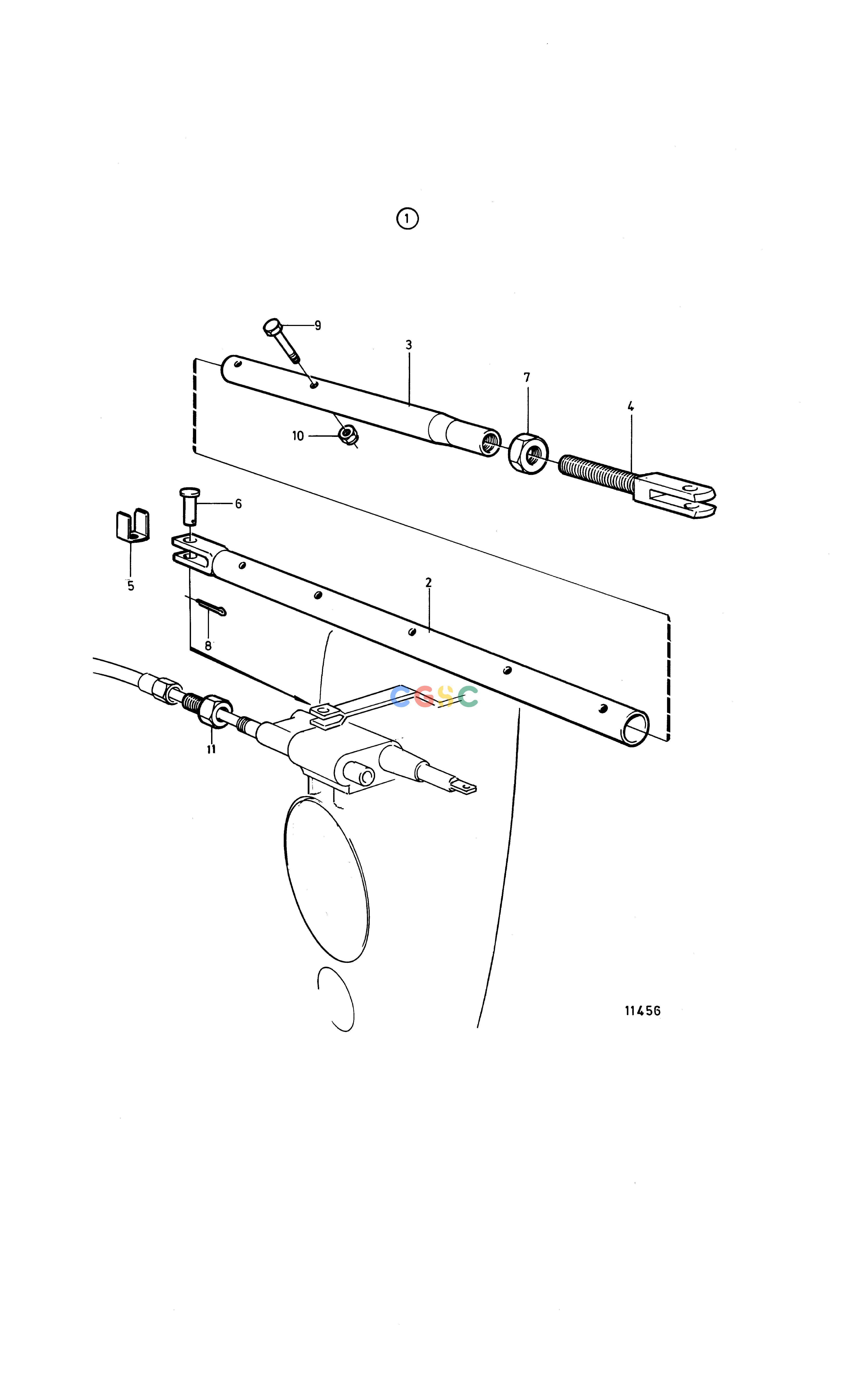

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1140610
|
[1] |
Link rod kit
|
|
| 2. |
828892
|
[1] |
Tube
|
|
| 3. |
828893
|
[1] |
Tube
|
|
| 4. |
828894
|
[1] |
Adjusting bar
|
|
| 5. |
853160
|
[2] |
Lock washer
|
|
| 6. |
913158
|
[2] |
Clevis pin
|
|
| 7. |
955806
|
[1] |
Hexagon nut
|
|
| 8. |
967707
|
[2] |
Split pin
|
|
| 9. |
970951
|
[2] |
Hexagon screw
|
|
| 10. |
971089
|
[2] |
Lock nut
|
|
| 11. |
1140020
|
[1] |
Deflection limiter
|
Can be used together kit 1140610 when power steering is installed on previous types of drives.
|
