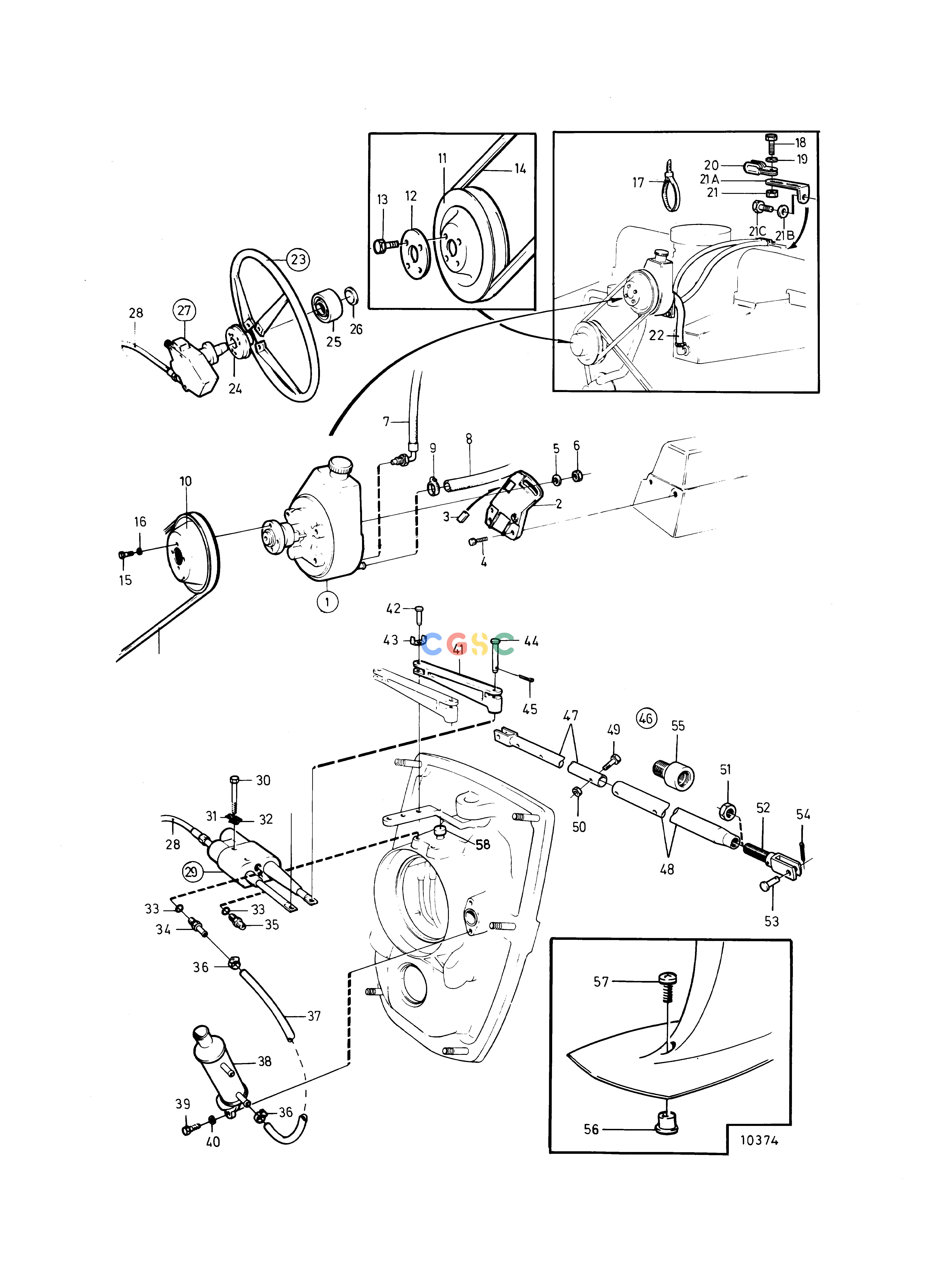

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Steering SystemPower Steering DP-A1, DP-A2,EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
235 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
855860
|
[1] |
Servo pump
|
|
| 2. |
855847
|
[1] |
Bracket
|
|
| 3. |
855868
|
[1] |
Support plate
|
|
| 4. |
955535
|
[1] |
Hexagon screw
|
L=32mm
|
| 4. |
940162
|
[2] |
Hexagon screw
|
L=38mm
|
| 5. |
464322
|
[2] |
Spacer washer
|
SN 64963-
|
| 6. |
971089
|
[2] |
Lock nut
|
(963107)
|
| 7. |
853454
|
[1] |
Pressure hose
|
|
| 8. |
838311
|
[1] |
Return hose
|
L=1800mm
|
| 9. |
961664
|
[1] |
Hose clamp
|
|
| 10. |
855353
|
[1] |
Pulley
|
|
| 11. |
1219961
|
[1] |
V-belt pulley
|
|
| 12. |
855894
|
[1] |
Adapter
|
|
| 13. |
955656
|
[4] |
Hexagon screw
|
|
| 14. |
967111
|
[1] |
V-belt
|
L=1025mm
|
| 14. |
|
|
|
SN 64997-
|
| 15. |
955293
|
[4] |
Hexagon screw
|
|
| 16. |
941907
|
[4] |
Spring washer
|
|
| 17. |
948210
|
[1] |
Cable tie
|
|
| 18. |
940100
|
[1] |
Hexagon screw
|
|
| 19. |
955893
|
[1] |
Washer
|
|
| 20. |
949386
|
[1] |
Clamp
|
|
| 21. |
955825
|
[1] |
Hexagon nut
|
|
| 21A. |
965552
|
[1] |
Bracket
|
|
| 21B. |
955894
|
[1] |
Washer
|
|
| 21C. |
955528
|
[1] |
Hexagon screw
|
|
| 22. |
952970
|
[1] |
Hose
|
L=500mm
|
| 23. |
850936
|
[1] |
Steering wheel
|
|
| 24. |
828943
|
[1] |
Steering wheel cushi
|
|
| 25. |
850938
|
[1] |
Emblem
|
|
| 26. |
853160
|
[1] |
Lock washer
|
|
| 27. |
|
|
|
|
| 28. |
853185
|
[1] |
Steering cable
|
L=3000mm
|
| 28. |
850811
|
[1] |
Steering cable
|
L=3300mm
|
| 28. |
|
|
|
Repl by 853192,853214
|
| 28. |
853188
|
[1] |
Steering cable
|
L=3750mm
|
| 28. |
853189
|
[1] |
Steering cable
|
L=4000mm
|
| 28. |
853190
|
[1] |
Steering cable
|
L=4250mm
|
| 28. |
850815
|
[1] |
Steering cable
|
L=4500mm
|
| 28. |
850816
|
[1] |
Steering cable
|
L=4800mm
|
| 28. |
853193
|
[1] |
Steering cable
|
L=5000mm
|
| 28. |
853194
|
[1] |
Steering cable
|
L=5500mm
|
| 28. |
853195
|
[1] |
Steering cable
|
L=6000mm
|
| 28. |
828866
|
[1] |
Steering cable
|
L=6750mm
|
| 28. |
853287
|
[1] |
Steering cable
|
L=7900mm
|
| 28. |
853288
|
[1] |
Steering cable
|
L=8500mm
|
| 29. |
852741
|
[1] |
Steering cylinder
|
|
| 29. |
853307
|
[1] |
Repair kit
|
|
| 30. |
968247
|
[2] |
Hexagon screw
|
|
| 31. |
853254
|
[2] |
Striker plate
|
|
| 32. |
941908
|
[2] |
Spring washer
|
|
| 33. |
958226
|
[2] |
O-ring
|
|
| 34. |
946152
|
[1] |
Nipple
|
|
| 35. |
957031
|
[1] |
Nipple
|
|
| 36. |
961664
|
[3] |
Hose clamp
|
|
| 37. |
838311
|
[1] |
Return hose
|
L=500mm
|
| 38. |
838482
|
[1] |
Oil cooler
|
|
| 39. |
955515
|
[2] |
Hexagon screw
|
|
| 40. |
941906
|
[2] |
Spring washer
|
|
| 41. |
852787
|
[1] |
Link rod
|
|
| 42. |
913158
|
[1] |
Clevis pin
|
|
| 43. |
853160
|
[1] |
Lock washer
|
|
| 44. |
852789
|
[1] |
Clevis pin
|
|
| 45. |
907856
|
[2] |
Split pin
|
|
| 46. |
828913
|
[1] |
Link stay
|
|
| 47. |
828892
|
[1] |
Tube
|
|
| 48. |
828893
|
[1] |
Tube
|
|
| 49. |
970951
|
[2] |
Hexagon screw
|
(955321)
|
| 50. |
971089
|
[2] |
Lock nut
|
(963107)
|
| 51. |
955806
|
[1] |
Hexagon nut
|
|
| 52. |
828894
|
[1] |
Adjusting bar
|
|
| 53. |
913158
|
[2] |
Clevis pin
|
|
| 54. |
967707
|
[2] |
Split pin
|
|
| 55. |
1140020
|
[1] |
Deflection limiter
|
|
| 56. |
853531
|
[1] |
Anode kit
|
For drive unit DP-A.
|
| 56. |
853589
|
[1] |
Anode kit
|
For drive unit SP-A.
|
| 57. |
959437
|
[1] |
Hex. socket screw
|
|
| 58. |
184700
|
[1] |
Roller
|
|
