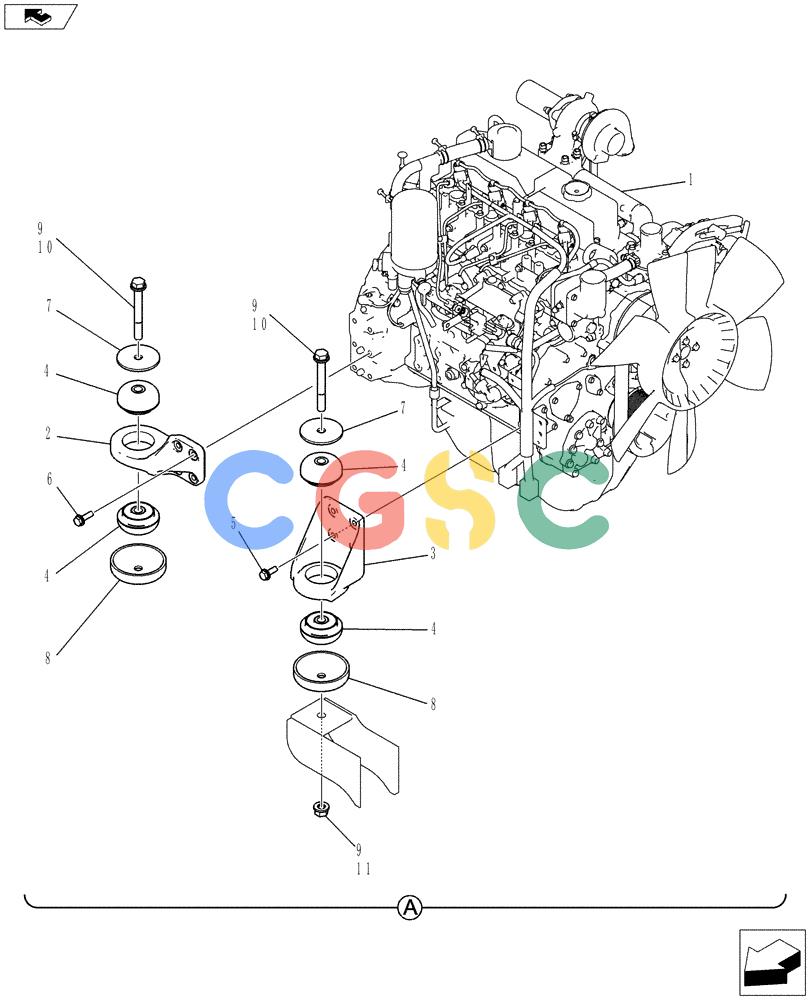

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-005[02]) - ENGINE INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
896 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY02P00016F2 | [1] | ENGINE,4 Cylinders, W/ Turbocharger | KOBAssy. Superseded by part number: YY02P00016F6 |
| 2. | YY02P01027P1 | [2] | BRACKET | KOB |
| 3. | YY02P01028P1 | [1] | BRACKET | KOB |
| 4. | YN02P01095P1 | [8] | ENGINE MOUNT | KOBRubber |
| 5. | ZM73C12035 | [8] | BOLT,M12x35mm - Course Thread | KOBSems |
| 6. | ZM73C12040 | [8] | BOLT,M12x40mm - Course Thread | KOBSems |
| 7. | YN02P01088P1 | [4] | PLATE | KOB |
| 8. | YN02P01062P1 | [4] | COVER | KOB |
| 9. | ZW16H18000 | [5] | WASHER | KOB |
| 10. | ZS18C18150 | [4] | CAP,Hex, M18 x 150mm | KOBScrew |
| 11. | ZN18C18015 | [1] | NUT | KOB |
