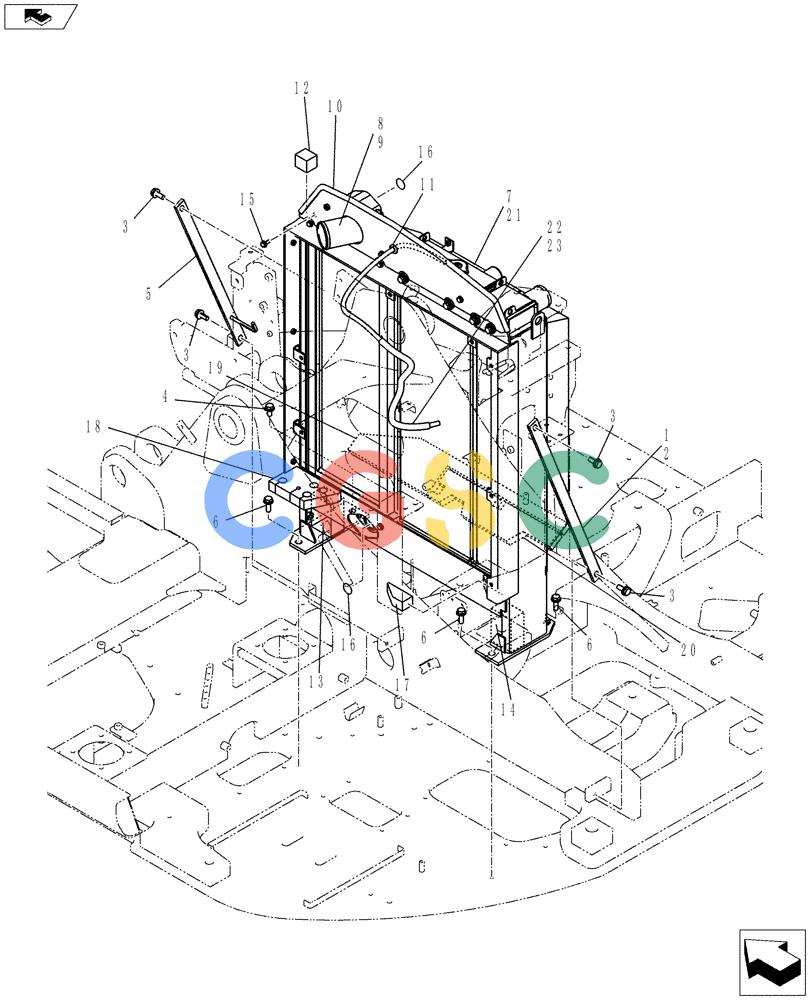

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-007[01]) - RADIATOR INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
909 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY05P00028F2 | [1] | | |
| 1. | YY05P00027F1 | [1] | | |
| 2. | LS05P01289P1 | [1] | STAY | KOB |
| 3. | ZM73C12030 | [4] | BOLT,M12x30mm - Course Thread | KOBSems |
| 4. | ZM73C12025 | [1] | BOLT,M12x25mm - Course Thread | KOBSems |
| 5. | YY05P01241P1 | [1] | STAY | KOB |
| 6. | ZM73C12035 | [3] | BOLT,M12x35mm - Course Thread | KOBSems |
| 7. | YY05P00024F2 | [1] | | |
| 8. | YY05P01233F1 | [1] | BRACKET | KOBAssy. |
| 9. | YY05P01234P1 | [1] | BRACKET, SUPPORTING | KOB |
| 10. | LS22C01024DE | [1] | TRIM | KOB |
| 11. | YN13E01431P1 | [1] | GROMMET | KOB |
| 12. | YY05P01202P1 | [1] | FOAM INSULATION | KOB |
| 13. | YY05P01262P1 | [1] | SUCTION BOWL | KOBRubber |
| 14. | YY05P01237P1 | [1] | RUBBER | KOB |
| 15. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBSems |
| 16. | YN05P01355P1 | [2] | O-RING,44.7mm ID x 51.7mm OD x 3.5mm | KOB |
| 17. | YY05P01236P1 | [1] | RUBBER | KOB |
| 18. | YY05P01249P1 | [1] | RUBBER | KOB |
| 19. | YY05P01270P1 | [1] | INSULATION | KOB |
| 20. | YY05P01271P1 | [1] | INSULATION | KOB |
| 21. | YY05P00047F1 | [1] | RADIATOR | KOB Superseded by part number: YY05P00047F2 |
| 22. | PH05P01088D6 | [2] | CLIP | KOB |
| 23. | PV21M01001DB | [1] | HOSE ASSY. | KOB Superseded by part number: PV21M01001DF |
