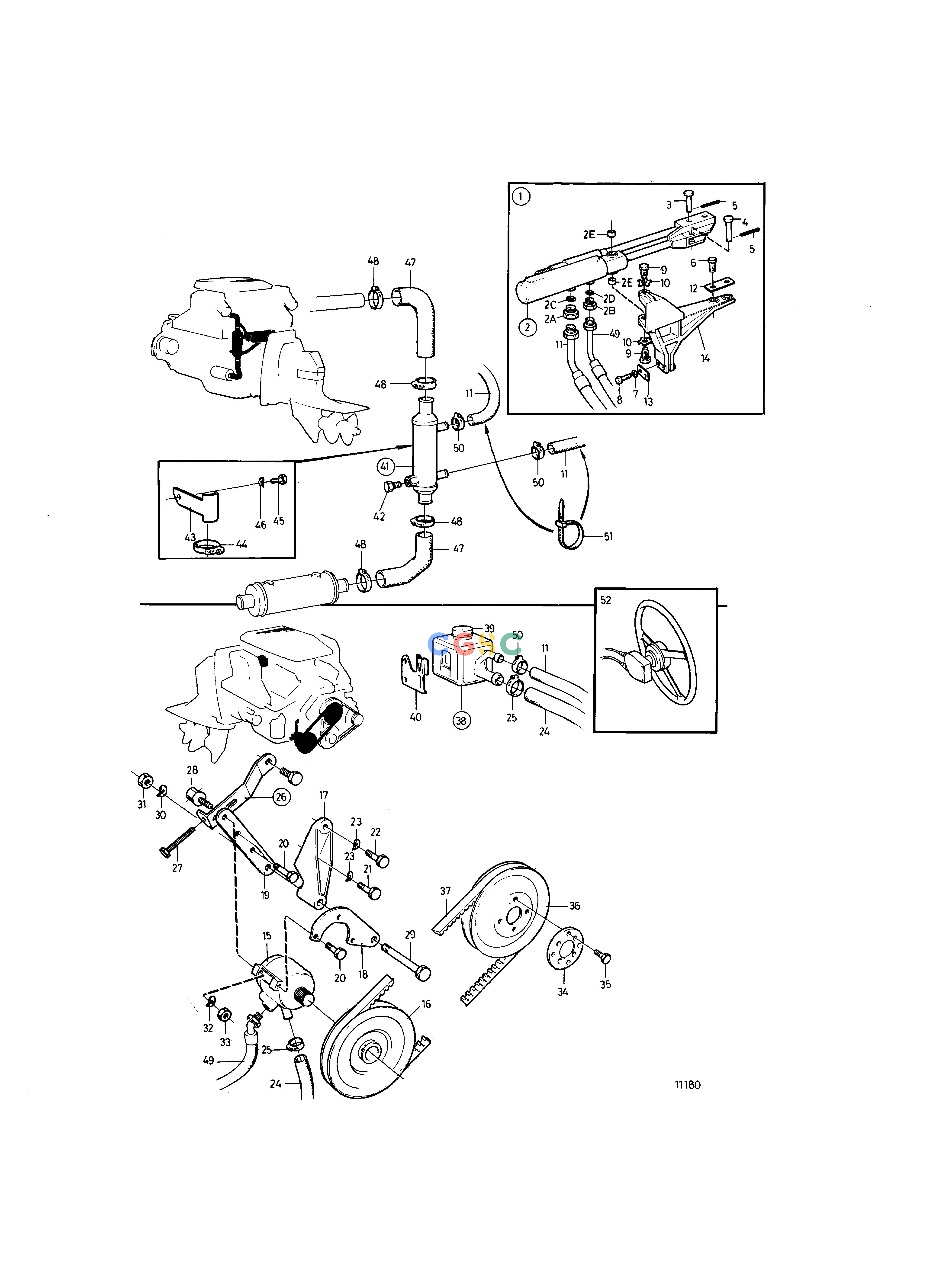

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1Steering SystemPower Steering Drive Unit DP-C, DP-D, DP-D1EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
635 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
872229
|
[1] |
Power steering kit
|
|
| 2. |
872215
|
[1] |
Steering cylinder
|
|
| 2A. |
872698
|
[1] |
Nipple
|
|
| 2B. |
872699
|
[1] |
Nipple
|
|
| 2C. |
955985
|
[1] |
O-ring
|
|
| 2D. |
955982
|
[1] |
O-ring
|
|
| 2E. |
872700
|
[2] |
Bushing
|
|
| 3. |
872491
|
[1] |
Clevis pin
|
|
| 4. |
872490
|
[1] |
Clevis pin
|
|
| 5. |
949791
|
[2] |
Split pin
|
|
| 6. |
977625
|
[2] |
Hexagon screw
|
|
| 7. |
941908
|
[2] |
Spring washer
|
|
| 8. |
970950
|
[2] |
Hexagon screw
|
|
| 9. |
872103
|
[2] |
Pivot pin
|
|
| 10. |
872104
|
[2] |
Lock washer
|
|
| 11. |
872217
|
[1] |
Return hose
|
L=3560mm
|
| 12. |
872311
|
[1] |
Tab washer
|
|
| 13. |
872369
|
[1] |
Tab washer
|
|
| 14. |
872443
|
[1] |
Bracket
|
|
| 14. |
872697
|
[1] |
Sealing ring kit
|
For 872215
|
| 15. |
1359649
|
[1] |
Servo pump
|
|
| 16. |
1378643
|
[1] |
Pulley
|
|
| 17. |
856320
|
[1] |
Bracket
|
|
| 18. |
856152
|
[1] |
Bracket
|
|
| 19. |
856153
|
[1] |
Bracket
|
|
| 20. |
955295
|
[5] |
Hexagon screw
|
|
| 21. |
940134
|
[1] |
Hexagon screw
|
|
| 22. |
955548
|
[1] |
Hexagon screw
|
|
| 23. |
941909
|
[2] |
Spring washer
|
|
| 24. |
941995
|
[1] |
Hose
|
L=660mm
|
| 25. |
961664
|
[2] |
Hose clamp
|
|
| 26. |
856154
|
[1] |
Tensioning arm
|
|
| 27. |
1346183
|
[1] |
Screw
|
|
| 28. |
1336961
|
[1] |
Screw
|
|
| 29. |
955555
|
[1] |
Hexagon screw
|
Early type
|
| 29. |
946473
|
[1] |
Flange screw
|
Late type
|
| 30. |
941909
|
[1] |
Spring washer
|
Early type
|
| 31. |
940157
|
[1] |
Hexagon nut
|
Early type
|
| 31. |
971099
|
[1] |
Flange lock nut
|
Late type
|
| 32. |
941907
|
[1] |
Spring washer
|
|
| 33. |
955782
|
[1] |
Hexagon nut
|
|
| 34. |
856487
|
[1] |
Adapter
|
|
| 35. |
955658
|
[4] |
Hexagon screw
|
|
| 36. |
1219961
|
[1] |
V-belt pulley
|
|
| 37. |
975093
|
[1] |
V-belt
|
|
| 38. |
6819752
|
[1] |
Reservoir
|
(1359621)
|
| 39. |
1359625
|
[1] |
Cover
|
|
| 40. |
856768
|
[1] |
Bracket
|
|
| 41. |
857153
|
[1] |
Oil cooler
|
|
| 42. |
192134
|
[1] |
Plug
|
|
| 43. |
857253
|
[1] |
Bracket
|
|
| 44. |
961671
|
[2] |
Hose clamp
|
|
| 45. |
955548
|
[1] |
Hexagon screw
|
|
| 46. |
941909
|
[1] |
Spring washer
|
|
| 47. |
856505
|
[1] |
Hose
|
|
| 48. |
961669
|
[4] |
Hose clamp
|
|
| 49. |
872216
|
[1] |
Pressure hose
|
|
| 50. |
961663
|
[3] |
Hose clamp
|
|
| 51. |
948210
|
[1] |
Cable tie
|
|
| 52. |
7736260_211
|
|
steering mechanism sts 330 with install. components
|
|
| 52. |
|
|
|
|
