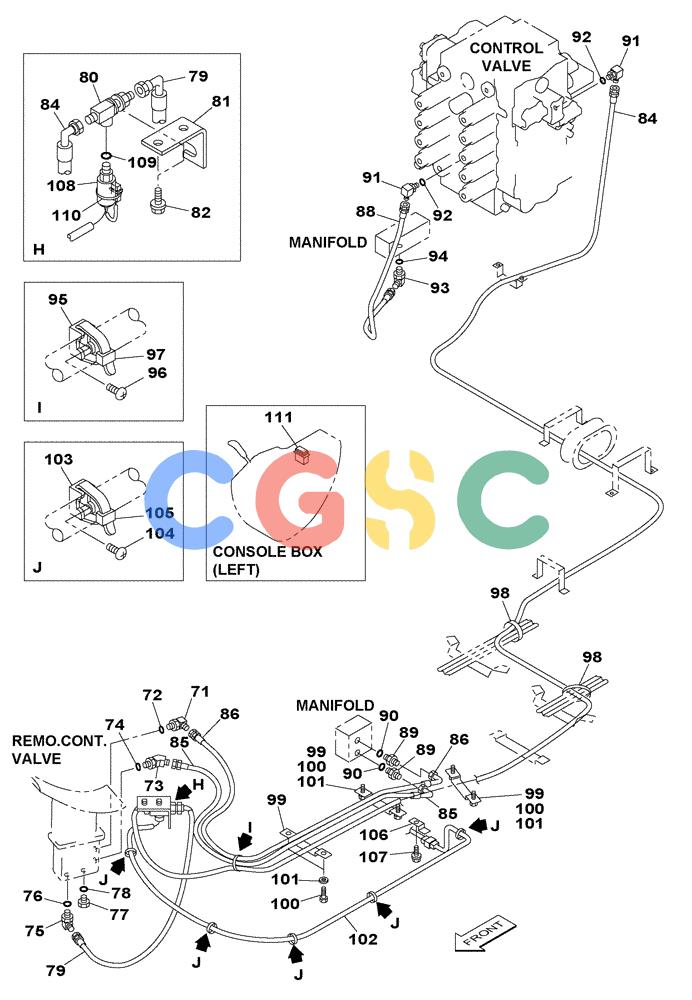

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-043-00[01]) - HYDRAULIC CIRCUIT - SINGLE ACTING CIRCUIT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
267 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 71. | 150933A1 | [1] | ELBOW | SUM |
| 72. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 73. | KHJ0994 | [1] | ADAPTER | SUM |
| 75. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 77. | 159002A1 | [1] | PLUG | SUM |
| 79. | 161483A1 | [1] | HOSE ASSY. | SUM |
| 80. | KHJ11470 | [1] | ADAPTER | SUM |
| 81. | KHJ2127 | [1] | BRACKET | SUM |
| 82. | 166345A1 | [2] | BOLT | SUMM8 x 16 Superseded by part number: 105R008Y016R |
| 84. | KHJ14020 | [1] | HYDRAULIC HOSE | SUM4950 mm |
| 85. | 164236A1 | [1] | HOSE ASSY. | SUM1000 mm |
| 86. | 159019A1 | [1] | HOSE ASSY. | SUM900 mm |
| 88. | 151877A1 | [1] | HOSE,63.00 mm ID x 1200.00 mm | SUM |
| 89. | 152127A1 | [2] | HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT | SUM |
| 91. | 156554A1 | [2] | ELBOW | SUM |
| 95. | 150860A1 | [1] | COLLAR | SUM |
| 96. | 840-168 | [1] | SCREW,Pan, M6 x 1 x 8mm, Cl 4.8 | CAS |
| 97. | 150496A1 | [1] | MOUNTING CLIP | SUM250 mm |
| 98. | 150071A1 | [1] | MOUNTING CLIP | SUM380 mm |
| 99. | KHJ1951 | [3] | CLAMP | SUM |
| 100. | 627-8012 | [6] | BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd | SUM Superseded by part number: 43231 |
| 101. | 153081A1 | [6] | WASHER | SUMW M8 |
| 102. | KHR3350 | [1] | HARNESS | SUM |
| 106. | 165405A1 | [1] | CLIP | SUM |
| 107. | 156559A1 | [1] | BOLT,High Strength, Hex, M6 x 12mm, W/ LW | SUMM6 X 12 |
| 108. | KHR10800 | [1] | PRESSURE SWITCH | SUM Superseded by part number: KHR24010 |
| 110. | 150067A1 | [1] | MOUNTING CLIP | SUM150 mm |
| 111. | KHR2913 | [1] | CAP | SUM |
