神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-008[02]) - RADIATOR GROUP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
270 次

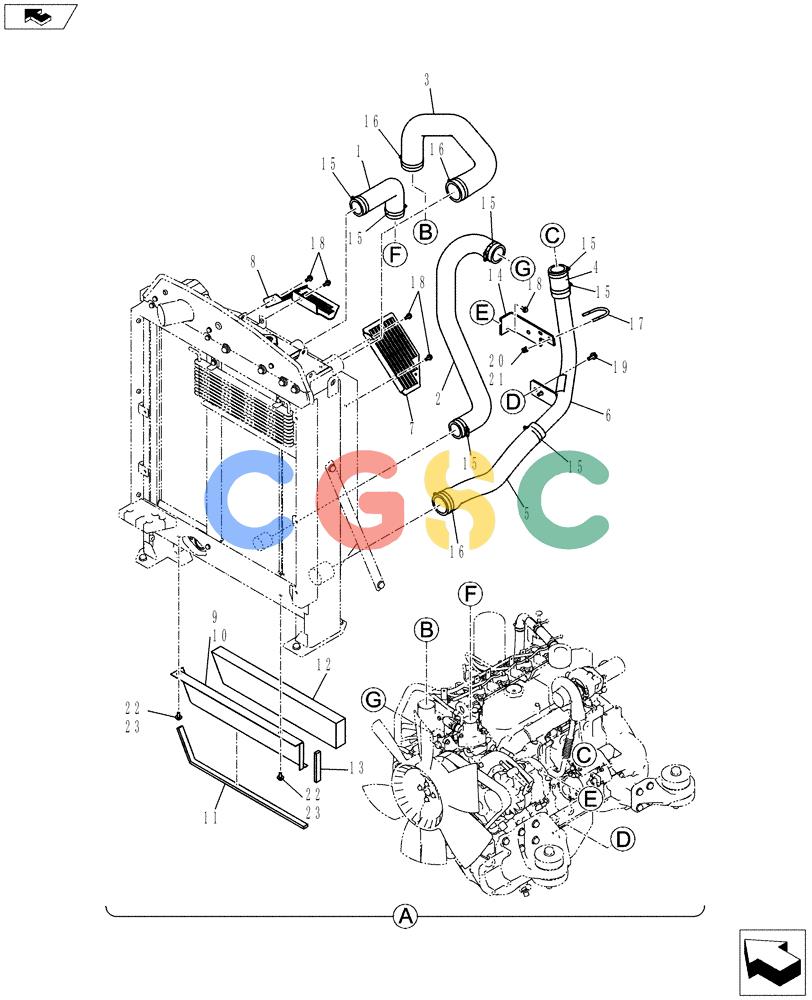

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YY05P01230P1 | [1] | FLEXIBLE HOSE | KOBRadiator |
| 2. | YY05P01231P1 | [1] | FLEXIBLE HOSE | KOBRadiator |
| 3. | YY05P01174P1 | [1] | FLEXIBLE HOSE | KOB |
| 4. | YY05P01175P1 | [1] | FLEXIBLE HOSE | KOB |
| 5. | YY05P01238P1 | [1] | FLEXIBLE HOSE | KOB |
| 6. | YY05P01194P1 | [1] | TUBE | KOB |
| 7. | YY05P01232P1 | [1] | GUARD | KOB |
| 8. | YY05P01227P1 | [1] | GUARD | KOB |
| 9. | YY05P01264F1 | [1] | PLATE | KOBAssy. |
| 10. | YY05P01265P1 | [1] | PLATE | KOB |
| 11. | YY05P01268P1 | [1] | SUCTION BOWL | KOBRubber |
| 12. | YY05P01266P1 | [1] | INSULATION | KOB |
| 13. | YY05P01269P1 | [1] | FLEXIBLE HOSE | KOBRubber |
| 14. | YY05P01225P1 | [1] | BRACKET | KOB |
| 15. | ZC16X06100 | [7] | CLIP | KOB |
| 16. | ZC16X07000 | [3] | CLIP | KOB |
| 17. | 2420T2948D4 | [1] | BOLT | KOBU |
| 18. | ZM73C08020 | [9] | BOLT,M8x20mm - Course Thread | KOBSems |
| 19. | ZM73C10030 | [1] | BOLT,M10x30mm - Course Thread | KOBSems |
| 20. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 21. | ZW16P08000 | [2] | WASHER | KOB |
| 22. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBCap |
| 23. | YR21C01161P1 | [2] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOB |
