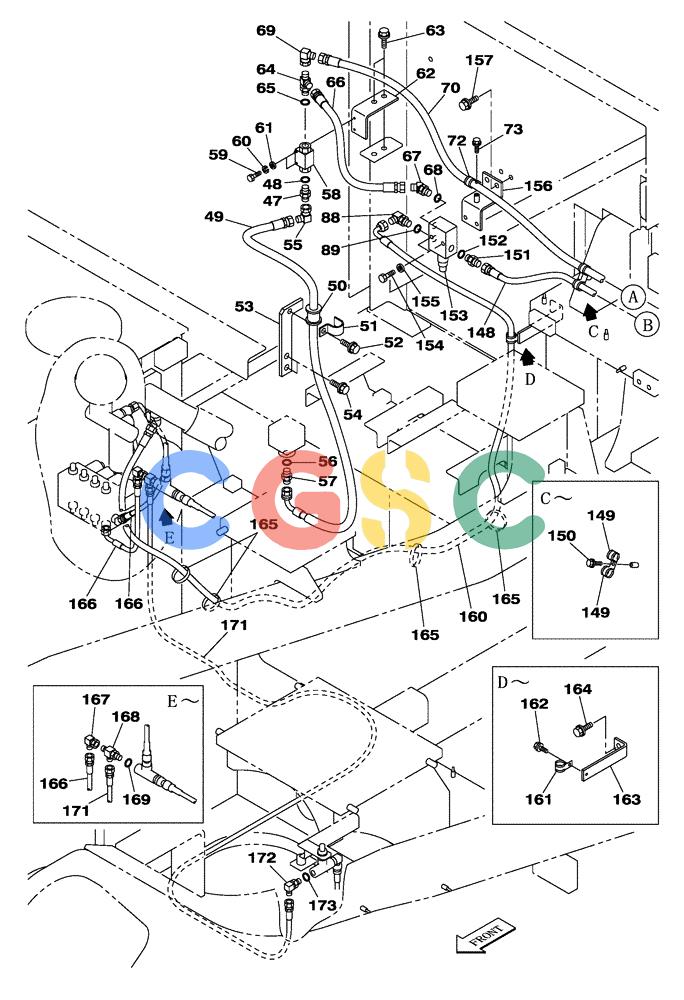

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-080-00[01]) - HYDRAULIC CIRCUIT - SELF-DETACHING COUNTERWEIGHT SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
282 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 47. | 152128A1 | [1] | HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT | SUM |
| 48. | 154475A1 | [1] | O-RING | SUM |
| 49. | KUJ10990 | [1] | HYDRAULIC HOSE,800.00 mm | SUM |
| 50. | 169268A1 | [1] | CLAMP | SUM Superseded by part number: HEJ0121 |
| 51. | 169267A1 | [1] | CLAMP | SUM Superseded by part number: HEJ0119 |
| 52. | 166347A1 | [1] | BOLT,Sems, M10 x 30mm | SUMM10 x 30 |
| 53. | KUJ11000 | [1] | BRACKET | SUM |
| 54. | 166352A1 | [2] | BOLT | SUMM12 x 30 |
| 55. | 153526A1 | [1] | ELBOW | SUM |
| 58. | KHJ1810 | [1] | VALVE | SUM Superseded by part number: KHJ17390 |
| 59. | 102R005Y045R | [2] | BOLT | SUMM5 x 45 |
| 60. | 892-11005 | [2] | LOCK WASHER,M5 | CAS Superseded by part number: 10569179 |
| 61. | 182-005SR | [2] | WASHER | SUMW5 |
| 62. | KWJ10920 | [1] | SUPPORT | SUM |
| 63. | 166052A1 | [2] | BOLT | SUMM10 x 25 Superseded by part number: 11106231 |
| 64. | 164107A1 | [1] | TEE,3/8" ORB x 3/8" - 19 NPT x 3/8" - 19 NPT | SUM |
| 66. | KHJ10320 | [1] | HYDRAULIC HOSE,9.52 mm ID x 340.00 mm | SUM |
| 67. | 157584A1 | [1] | ELBOW | SUM |
| 70. | KHJ15330 | [1] | HYDRAULIC HOSE | SUM2000 mm |
| 72. | KHJ1076 | [4] | CLAMP | SUM |
| 73. | 159602A1 | [4] | BOLT,Sems, Hex, M6 x 16mm | SUMM6 x 16 |
| 88. | 150916A1 | [1] | ELBOW,90º, 3/8" O-Ring x 3/8" | SUM |
| 148. | KHJ1572 | [1] | HYDRAULIC HOSE | SUM2100 mm |
| 153. | KUJ0289 | [1] | PRESSURE RELIEF VALVE | SUM |
| 154. | 827-8060 | [2] | BOLT,Hex, M8 x 1.25 x 60mm, Cl 10.9 | CAS Superseded by part number: 86625005 |
| 155. | 153081A1 | [2] | WASHER | SUMW M8 |
| 156. | KWJ10930 | [1] | SUPPORT | SUM |
| 160. | KHJ15250 | [1] | HYDRAULIC HOSE,9.52 mm ID x 3200.00 mm | SUM |
| 163. | KWJ10950 | [1] | SUPPORT | SUM |
| 165. | 150071A1 | [1] | MOUNTING CLIP | SUM380 mm |
| 166. | 167353A1 | [2] | HOSE,400.00 mm | SUM |
| 167. | 163814A1 | [1] | ELBOW | SUM |
| 168. | 159497A1 | [1] | TEE | SUM |
| 169. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 171. | 157790A1 | [1] | HOSE,6.3mm ID x 3000mm L | SUM3000 mm |
| 172. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
