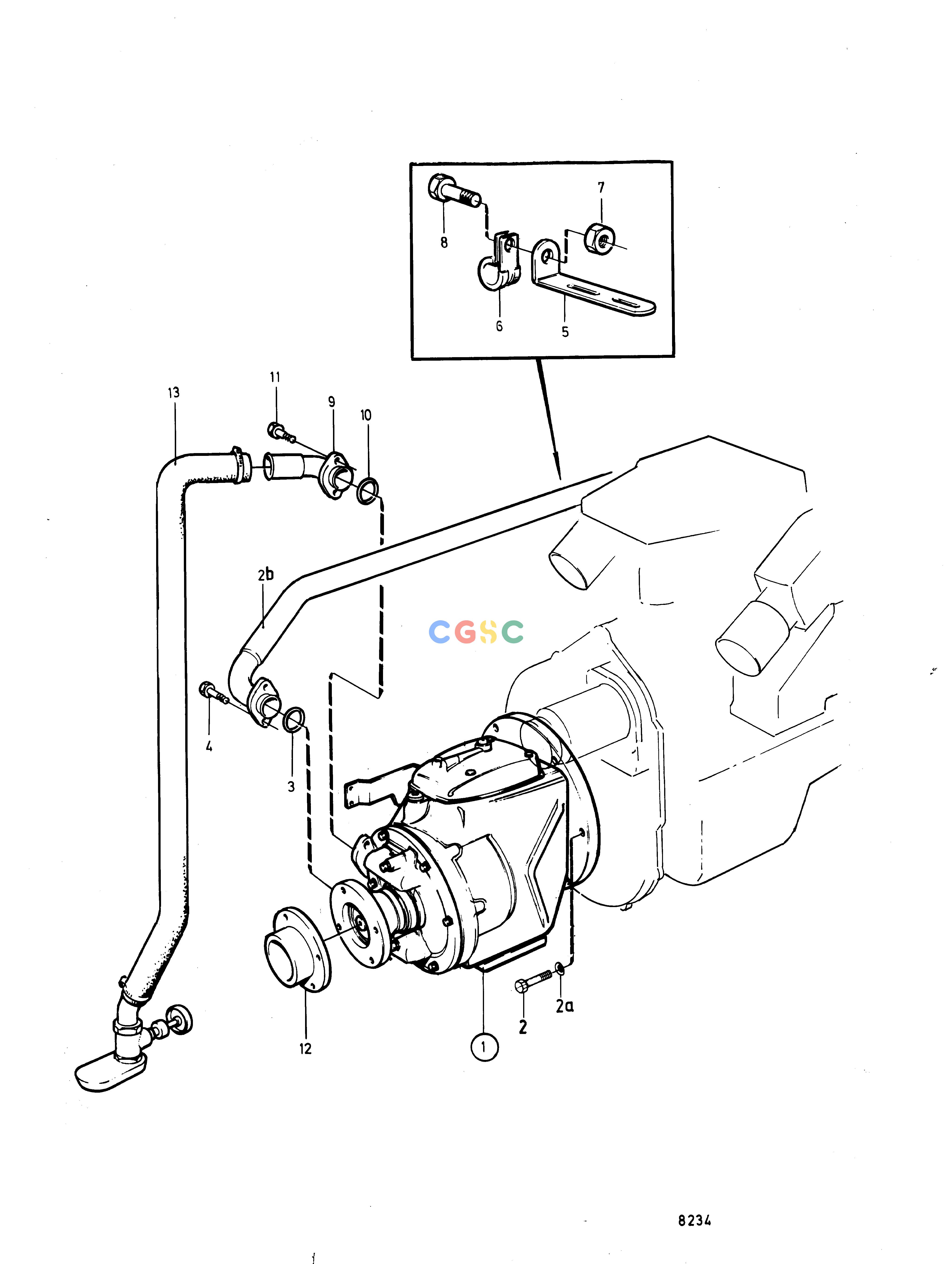

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsConnecting Components Reverse Gear MS4A, MS4BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
882 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
853397
|
[1] |
Reversing gear
|
Ratio 1,54:1
|
| 1. |
853781
|
[1] |
Reversing gear, reverse gear MS4A
|
The product number is placed on the reverse gear., Ratio 1,93:1
|
| 1. |
|
|
|
See group 4B
|
| 1. |
854900
|
[1] |
Reversing gear
|
Ratio 1,54:1
|
| 1. |
854901
|
[1] |
Reversing gear
|
Ratio 1,93:1
|
| 2. |
940160
|
[6] |
Hexagon screw
|
|
| 2A. |
941909
|
[6] |
Spring washer
|
|
| 2B. |
855896
|
[1] |
Suction pipe
|
|
| 3. |
842913
|
[1] |
Sealing ring
|
|
| 4. |
946544
|
[2] |
Flange screw
|
|
| 5. |
965556
|
[1] |
Bracket
|
SN70547-
|
| 6. |
952637
|
[1] |
Clamp
|
|
| 7. |
955781
|
[1] |
Hexagon nut
|
|
| 8. |
946544
|
[2] |
Flange screw
|
|
| 9. |
852968
|
[1] |
Coolant pipe
|
|
| 10. |
842913
|
[1] |
Sealing ring
|
|
| 11. |
946544
|
[1] |
Flange screw
|
|
| 12. |
|
|
|
See group 9
|
| 13. |
|
|
|
See group 9
|
