沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsConnecting Components Reverse Gear MS5BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
998 次

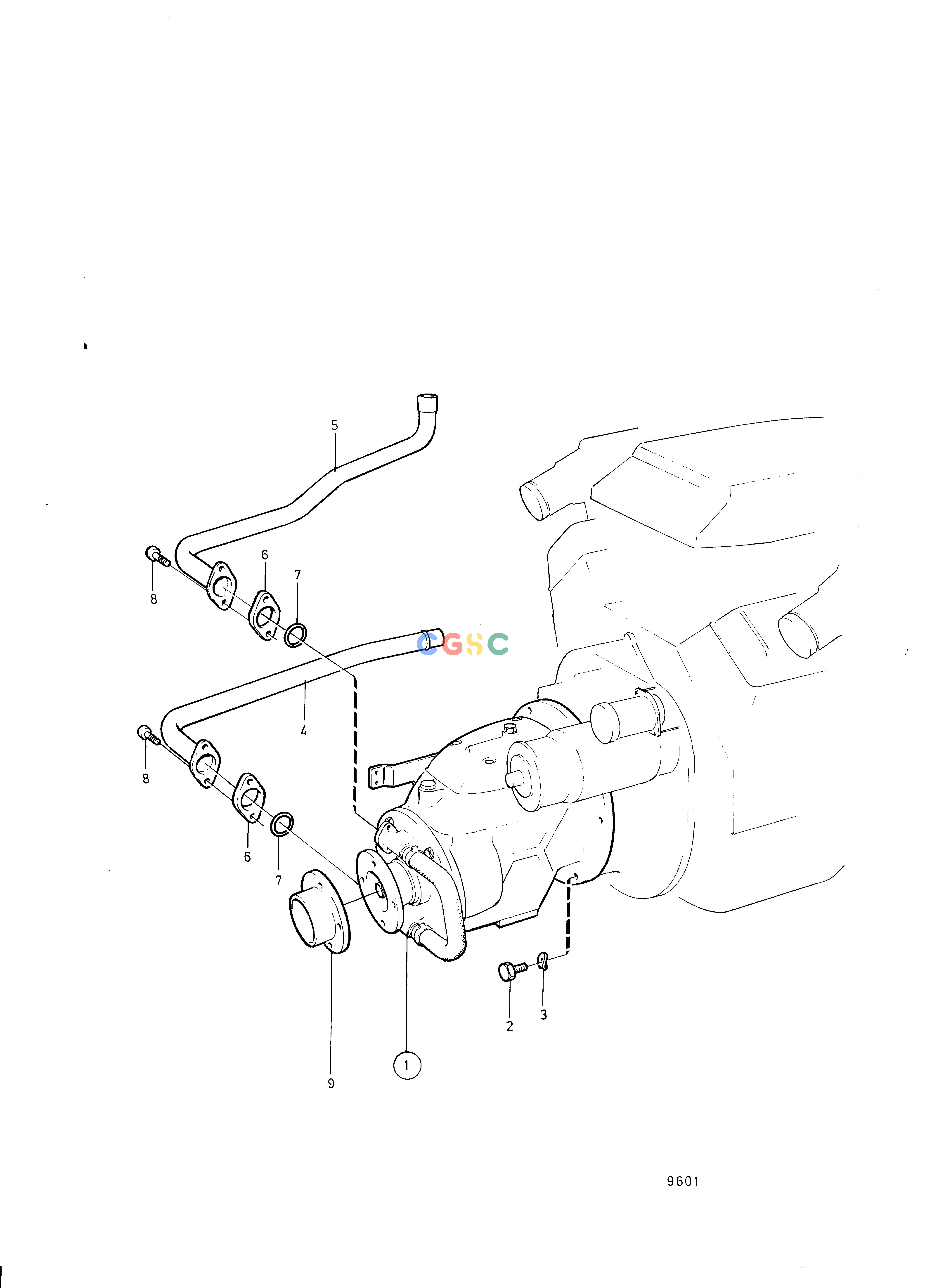

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854905
|
[1] |
Transmission
|
Ratio 1,55:1
|
| 1. |
|
|
|
|
| 1. |
854906
|
[1] |
Transmission
|
Ratio 1.94:1
|
| 1. |
854907
|
[1] |
Transmission
|
Ratio 2,40:1
|
| 2. |
940160
|
[6] |
Hexagon screw
|
|
| 3. |
941909
|
[6] |
Spring washer
|
|
| 4. |
856223
|
[1] |
Coolant pipe
|
|
| 5. |
856224
|
[1] |
Coolant pipe
|
|
| 6. |
854184
|
[2] |
Flange
|
|
| 7. |
925062
|
[2] |
O-ring
|
|
| 8. |
942001
|
[4] |
Hex. socket screw
|
|
| 9. |
946544
|
[1] |
Flange screw
|
See group 9
|
