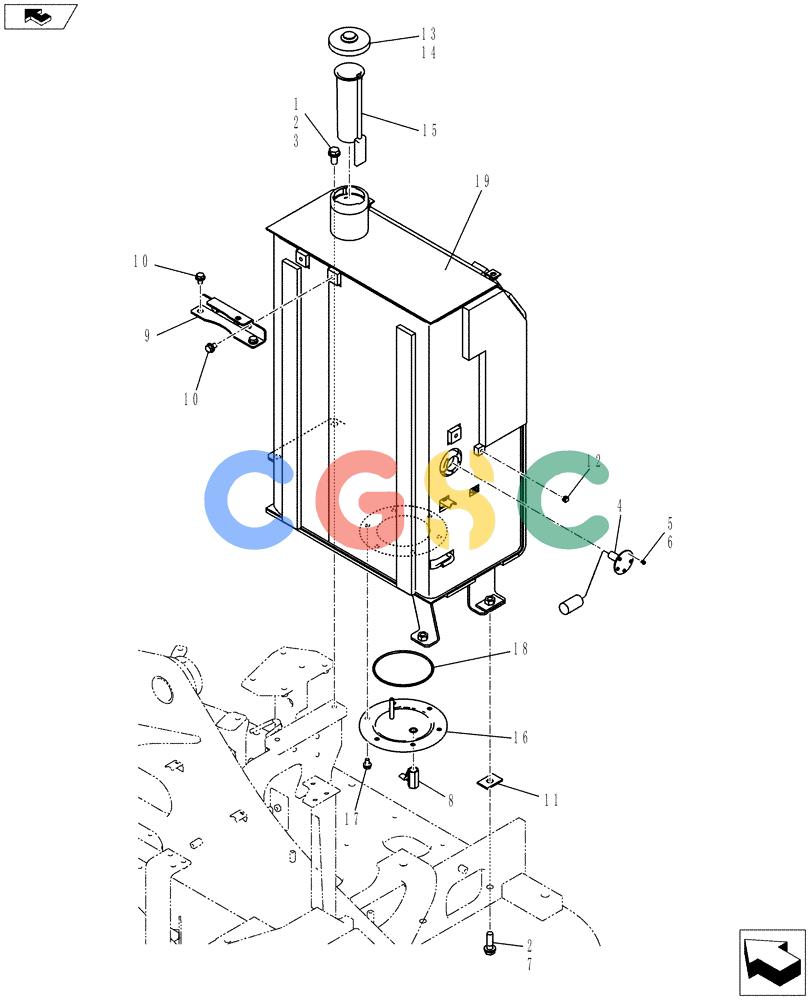

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-013[01]) - FUEL TANK INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
564 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY20P00059F1 | [1] | Fuel | |
| 1. | YY20P00060F1 | [1] | Fuel | |
| 2. | ZW16H16000 | [4] | WASHER | KOB |
| 3. | ZS18C16035 | [2] | SCREW,Hex, M16 x 35mm | KOBCap |
| 4. | YY52S00029F1 | [1] | SENSOR | KOBLevel Superseded by part number: YY52S00034F1 |
| 5. | ZW26X05000 | [5] | LOCK WASHER | KOBLock |
| 6. | ZS31C05012 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 12mm | KOBMachine |
| 7. | ZS18C16055 | [2] | SCREW,Hex, M16 x 55mm | KOBCap |
| 8. | YN25V00001P1 | [1] | VALVE | KOBStop |
| 9. | YY20P01107P1 | [1] | PLATE | KOB |
| 10. | ZM73C12020 | [4] | BOLT,M12x20mm - Course Thread | KOBSems |
| 11. | YY20P01139P1 | [3] | SHIM | KOB |
| 12. | YN13E01375P1 | [1] | CLIP,M8 x 8.20mm Shank | KOB |
| 13. | YY20P00057F1 | [1] | Fuel | |
| 14. | YN20P01034P2 | [1] | CAP | KOB |
| 15. | YF50V00001P1 | [1] | FILTER STRAINER | KOB |
| 16. | YN20P01258P1 | [1] | FLANGE | KOB |
| 17. | ZM73C10020 | [6] | BOLT,M10x20mm - Course Thread | KOBSems |
| 18. | ZD11G16000 | [1] | O-RING,5.7mm Thk x 159.3mm ID, 70 Duro | KOB |
| 19. | YY20P00035P1 | [1] | FUEL TANK | KOB |
