神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-012[03]) - FUEL LINES Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
823 次

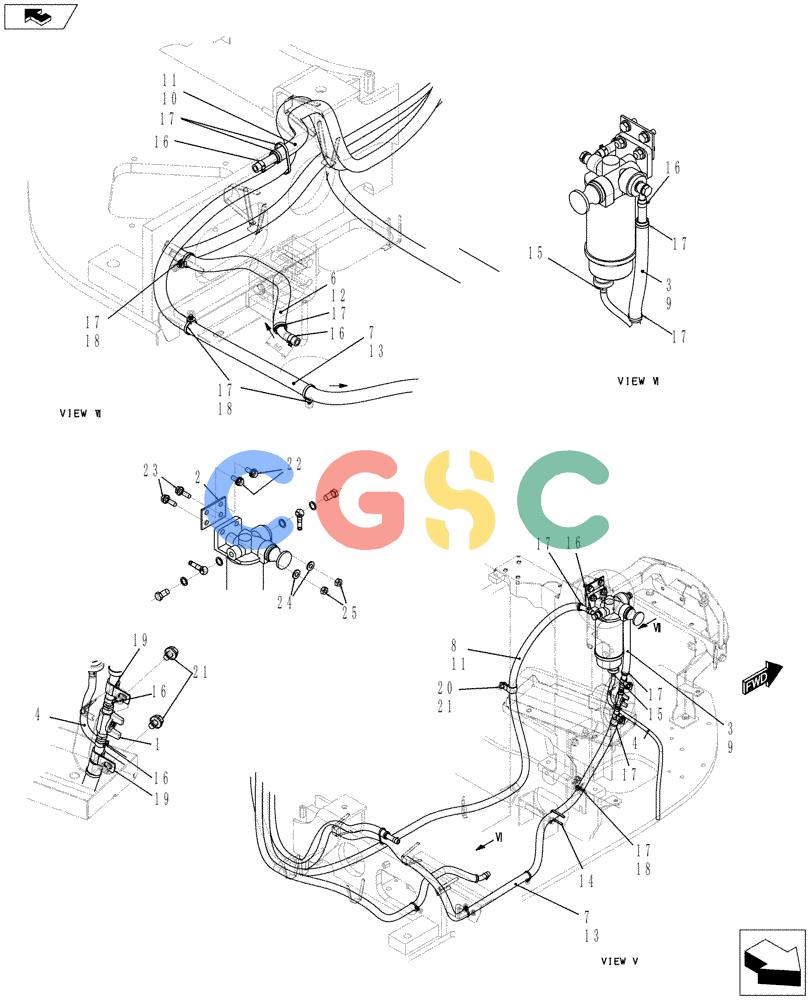

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN25V00004P1 | [1] | VALVE | KOBStop |
| 2. | YY21P01012P1 | [1] | PLATE | KOB |
| 3. | HX11F06036DX | [1] | HOSE,9.7mm ID x 360mm L | KOB |
| 4. | HX11Y06084DX | [1] | HOSE | KOB |
| 5. | HX11F06120DX | [1] | HOSE ASSY.,9.70mm ID x 1200mm L | KOB |
| 6. | HX11F06400DX | [1] | HOSE ASSY.,9.70mm ID x 4000mm L | KOB |
| 7. | HX11F06480DX | [1] | HOSE ASSY.,9.70mm ID x 4800mm L | KOB |
| 8. | YY21P01023P1 | [1] | HOSE ASSY. | KOB |
| 9. | HX81X19024DX | [1] | TUBE | KOB |
| 10. | HX81X19110DX | [1] | PIPE | KOB |
| 11. | HX81X19260DX | [1] | TUBE | KOB |
| 12. | HX81X19390DX | [1] | PIPE | KOB |
| 13. | HX81X19470DX | [1] | PIPE | KOB |
| 14. | 2432R233D3 | [1] | CLIP | KOB |
| 15. | PH05P01088D6 | [1] | CLIP | KOB |
| 16. | PH05P01088D7 | [10] | CLIP,13.6mm - 17.5mm | KOB |
| 17. | PY01P01043D2 | [20] | CABLE TIE,4.60mm W x 202mm L | KOB Superseded by part number: YT50C01100P1 |
| 18. | YN13E01375P1 | [5] | CLIP,M8 x 8.20mm Shank | KOB |
| 19. | ZC46X16011 | [2] | CLIP | KOB |
| 20. | ZC46X25011 | [1] | CLIP | KOB |
| 21. | ZM73C10016 | [3] | BOLT,M10x16mm - Course Thread | KOBSems |
| 22. | ZM73C10025 | [3] | BOLT,M10x25mm - Course Thread | KOBSems |
| 23. | ZM73C10035 | [2] | BOLT,M10x35mm - Course Thread | KOBSems |
| 24. | ZW16H10000 | [2] | WASHER | KOB |
| 25. | ZN18C10008 | [2] | NUT | KOB |
