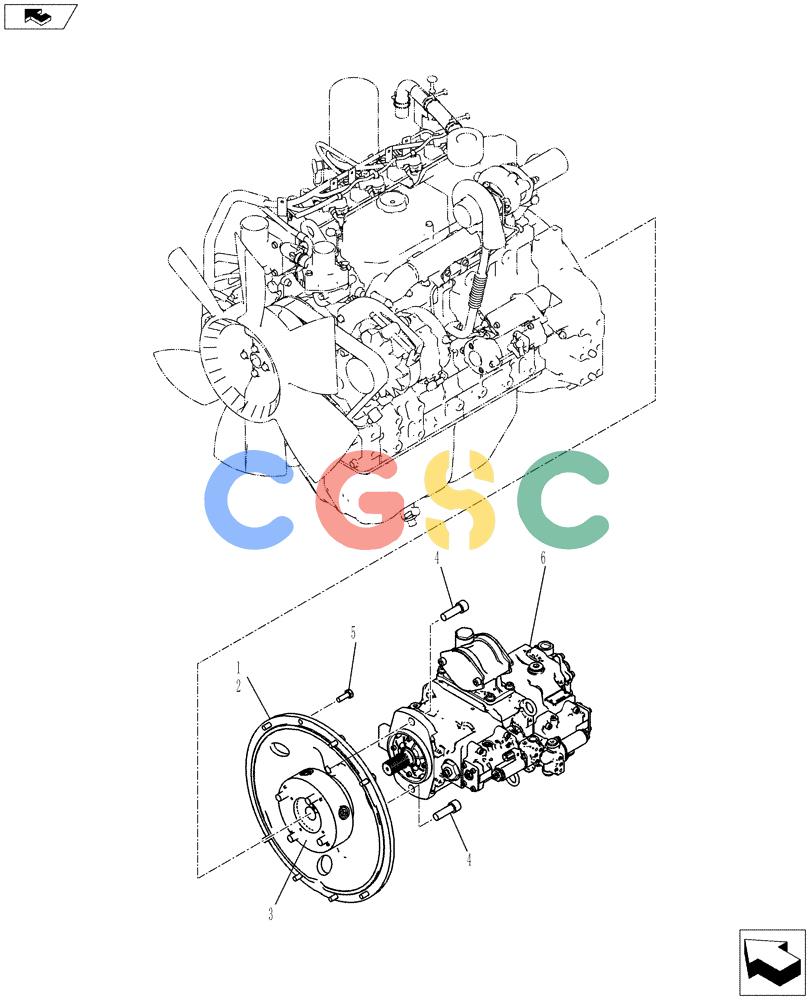

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-015[01]) - POWER TAKE OFF ASSEMBLY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
509 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY30P00011F1 | [1] | | |
| 1. | YY30P00006F1 | [1] | | |
| 2. | YY30P01008P1 | [1] | BRACKET | KOB Superseded by part number: |
| 3. | YM30P01007F1 | [1] | COUPLING | KOB |
| 4. | ZS23C16050 | [2] | CAPSCREW,Hex Socket Head, M16 x 50mm | KOBSCREW Cap |
| 5. | ZS18C10030 | [8] | SCREW,Hex, M10 x 30mm | KOBCap |
| 6. | YY10V00016F3 | [1] | HYDRAULIC PUMP | KOB Superseded by part number: YY10V00016F4 |
