纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-095-00[01]) - HYDRAULIC CIRCUIT - PLUG, BLANK-OFF (3-WAY - SMALL FLOW) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
924 次

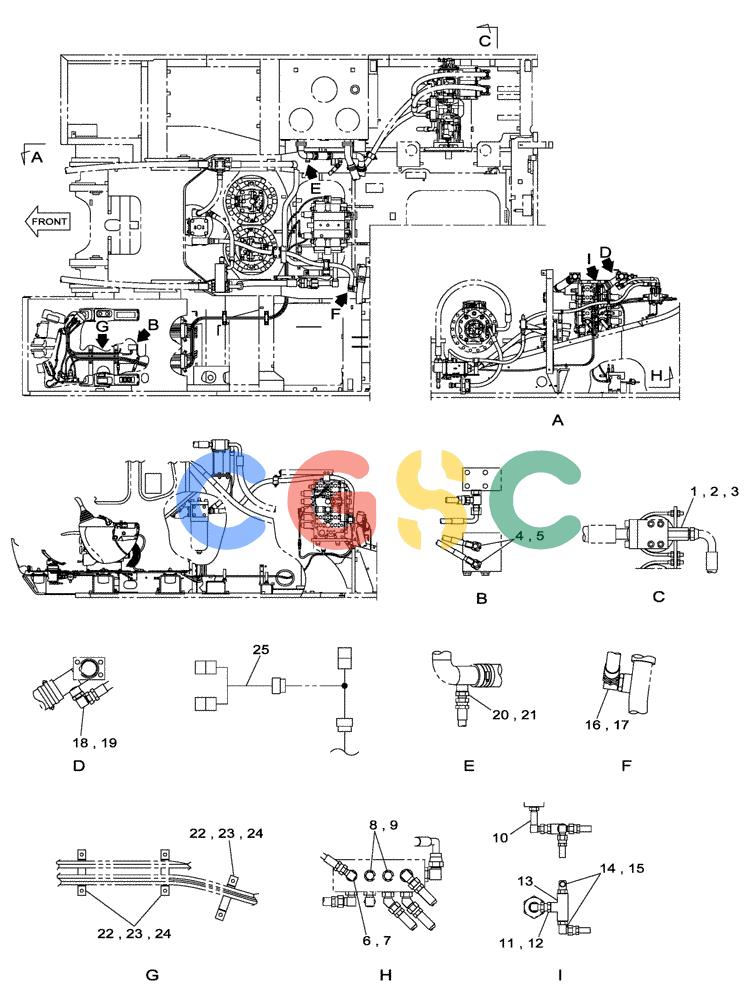

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KHJ1495 | [1] | ADAPTER | SUM |
| 2. | 154503A1 | [1] | O-RING | SUM |
| 3. | KHJ1360 | [1] | O-RING,0.07" Thk x 0.739" ID | SUM |
| 4. | 159497A1 | [2] | TEE | SUM |
| 5. | 154467A1 | [1] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 6. | 150913A1 | [1] | ELBOW,90º, 1/4" O-Ring x 1/4" | SUM |
| 8. | 159002A1 | [2] | PLUG | SUM |
| 10. | KHJ1178 | [1] | ELBOW | SUM |
| 11. | 162654A1 | [1] | HYD CONNECTOR | SUM |
| 13. | 158186A1 | [1] | PRESSURE RELIEF VALVE | SUM Superseded by part number: KHJ26180 |
| 16. | 157582A1 | [1] | ELBOW,90º, 1 1/4" O-Ring x 1 1/4" | SUM |
| 17. | 154559A1 | [1] | O-RING | SUM |
| 18. | 157580A1 | [1] | ELBOW,90º, 3/4" O-Ring x 3/4" | SUM |
| 20. | 151654A1 | [1] | HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT | SUM |
| 22. | KHJ1951 | [3] | CLAMP | SUM |
| 23. | 627-8012 | [6] | BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd | SUM Superseded by part number: 43231 |
| 24. | 153081A1 | [6] | WASHER | SUM |
| 25. | KHR3353 | [1] | HARNESS | SUM |
