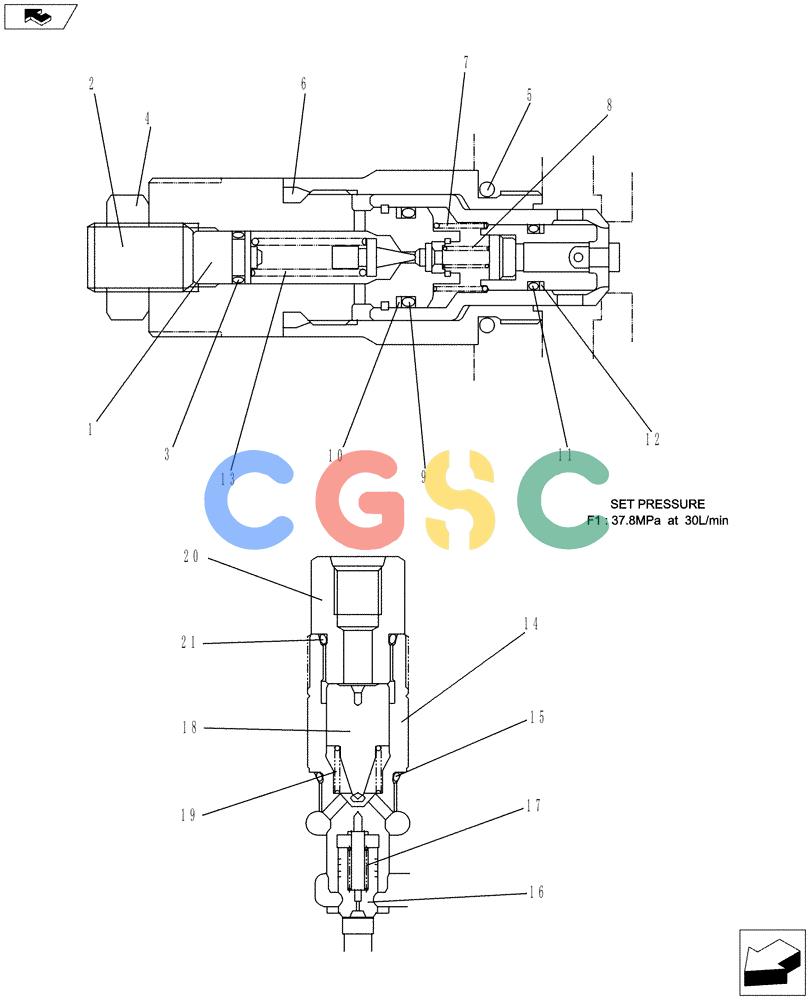

神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-017[08]) - VALVE INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
212 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN22V00002S612 | [1] | SPRING SEAT | KOB |
| 2. | YN22V00002S651 | [1] | ADJUSTMENT SCREW | KOB |
| 3. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 4. | YN22V00001S671 | [1] | LOCK NUT | KOB |
| 5. | ZD12P02400 | [1] | O-RING | KOB |
| 6. | ZD12P02240 | [1] | O-RING | KOB |
| 7. | YN22V00001S521 | [1] | SPRING | KOB |
| 8. | YN22V00002S522 | [1] | SPRING | KOB |
| 9. | YN22V00001S561 | [1] | O-RING | KOB Superseded by part number: HD16P01600G1 |
| 10. | YN22V00001S562 | [1] | BACK-UP RING | KOB |
| 11. | YN22V00002S563 | [1] | O-RING | KOB Superseded by part number: HD16P01000G1 |
| 12. | YN22V00002S564 | [1] | RING | KOBBack Up |
| 13. | 2436R750S512 | [1] | SPRING | KOB |
| 14. | YN30V00120S101 | [1] | PLUG | KOB |
| 15. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOB |
| 16. | YN30V00120S201 | [1] | POPPET | KOB |
| 17. | YN30V00120S202 | [1] | SPRING | KOB |
| 18. | YN30V00120S301 | [1] | POPPET | KOB |
| 19. | YN30V00120S302 | [1] | SPRING | KOB |
| 20. | YN30V00120S401 | [1] | PLUG | KOB |
| 21. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
