神钢零件查询(ED150-2) - BLADE RUNNER EXCAVATOR/DOZER ASN LH01-01001 (1/09-12/12) (01-017[07]) - VALVE INSTALLATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
849 次

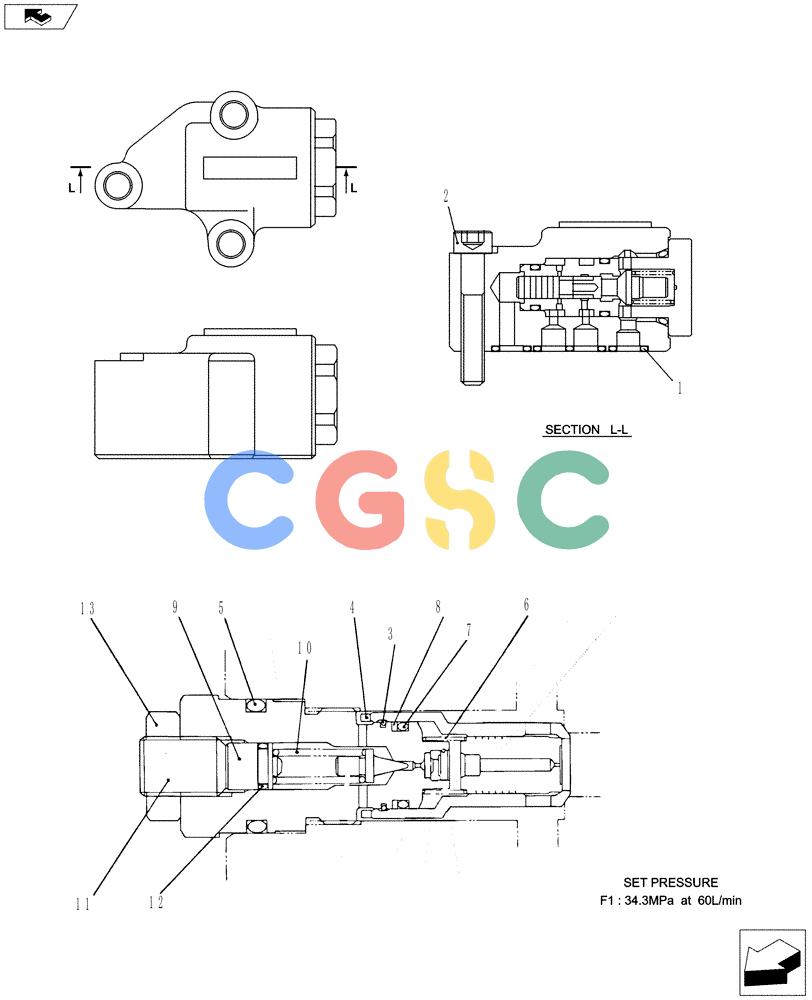

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZD12P00700 | [4] | O-RING,1.6mm Thk x 6.8mm ID, 90 Duro | KOB |
| 2. | ZS23C06035 | [3] | SCREW,Hex Socket Head, M6 x 35mm | KOBCap |
| 3. | YN22V00001S121 | [1] | RING | KOB |
| 4. | YN22V00001S122 | [1] | SPACER | KOB |
| 5. | ZD12P02500 | [1] | O-RING | KOBID 24.7mm x OD 28.2mm |
| 6. | YN22V00001S521 | [1] | SPRING | KOB |
| 7. | YN22V00001S561 | [1] | O-RING | KOB Superseded by part number: HD16P01600G1 |
| 8. | YN22V00001S562 | [1] | BACK-UP RING | KOB |
| 9. | YN22V00002S612 | [1] | SPRING SEAT | KOB |
| 10. | 2436R750S512 | [1] | SPRING | KOB |
| 11. | YN22V00002S651 | [1] | ADJUSTMENT SCREW | KOB |
| 12. | ZD12P00800 | [1] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 13. | YN22V00001S671 | [1] | LOCK NUT | KOB |
