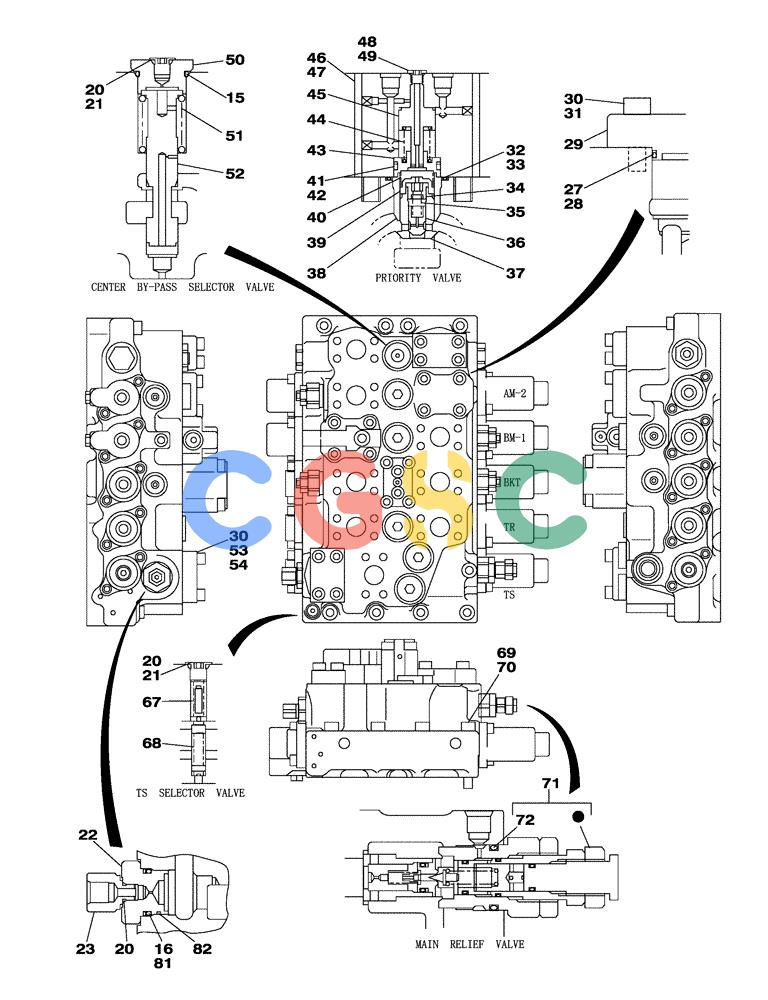

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-202-00[01]) - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
370 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 15. | 154555A1 | [1] | O-RING | SUM |
| 16. | 154535A1 | [1] | O-RING | SUM |
| 20. | 154467A1 | [3] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 21. | 160306A1 | [2] | CAP | SUM |
| 22. | LR00762 | [1] | CAP | SUM |
| 23. | LR00763 | [1] | CAP | SUM |
| 27. | 154549A1 | [1] | O-RING | SUM |
| 28. | 154017A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 29. | LW00271 | [1] | COVER | SUM |
| 30. | 108R014Z045B | [12] | BOLT | SUM |
| 31. | LA00598 | [4] | SPRING WASHER | SUM |
| 32. | LE00610 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 33. | 164222A1 | [1] | O-RING | SUM |
| 34. | LK00235 | [1] | CAP | SUM |
| 35. | LG00263 | [1] | COMPRESSION SPRING | SUM |
| 36. | LJ00603 | [1] | CHECK VALVE | SUM |
| 37. | LJ00875 | [1] | VALVE POPPET | SUM |
| 38. | LH00294 | [1] | SLEEVE VALVE | SUM |
| 39. | LS00093 | [1] | GUIDE | SUM |
| 40. | LG00256 | [1] | COMPRESSION SPRING | SUM |
| 41. | 154529A1 | [1] | O-RING | SUM |
| 42. | 154002A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 43. | LR00423 | [1] | PLATE | SUM |
| 44. | LG00262 | [1] | COMPRESSION SPRING | SUM |
| 45. | LJ00598 | [1] | PISTON | SUM |
| 46. | LW00272 | [1] | COVER | SUM |
| 47. | 108R014Z080B | [4] | BOLT | SUM |
| 48. | 160902A1 | [1] | CAP | SUM |
| 49. | 154455A1 | [1] | O-RING | SUM |
| 50. | LK00234 | [1] | CAP | SUM |
| 51. | LG00261 | [1] | COMPRESSION SPRING | SUM |
| 52. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 53. | LH00208 | [2] | FIXING BRACKET | SUM |
| 54. | LBQ6222 | [2] | O-RING | SUM |
| 67. | LG00259 | [1] | COMPRESSION SPRING | SUM |
| 69. | 108R016Z100B | [8] | BOLT | SUMM16 x 100 |
| 70. | LA00597 | [8] | WASHER | SUM |
| 71. | LJ00577 | [1] | VALVE | SUM |
| 81. | 154006A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 82. | LK00231 | [1] | CAP | SUM |
