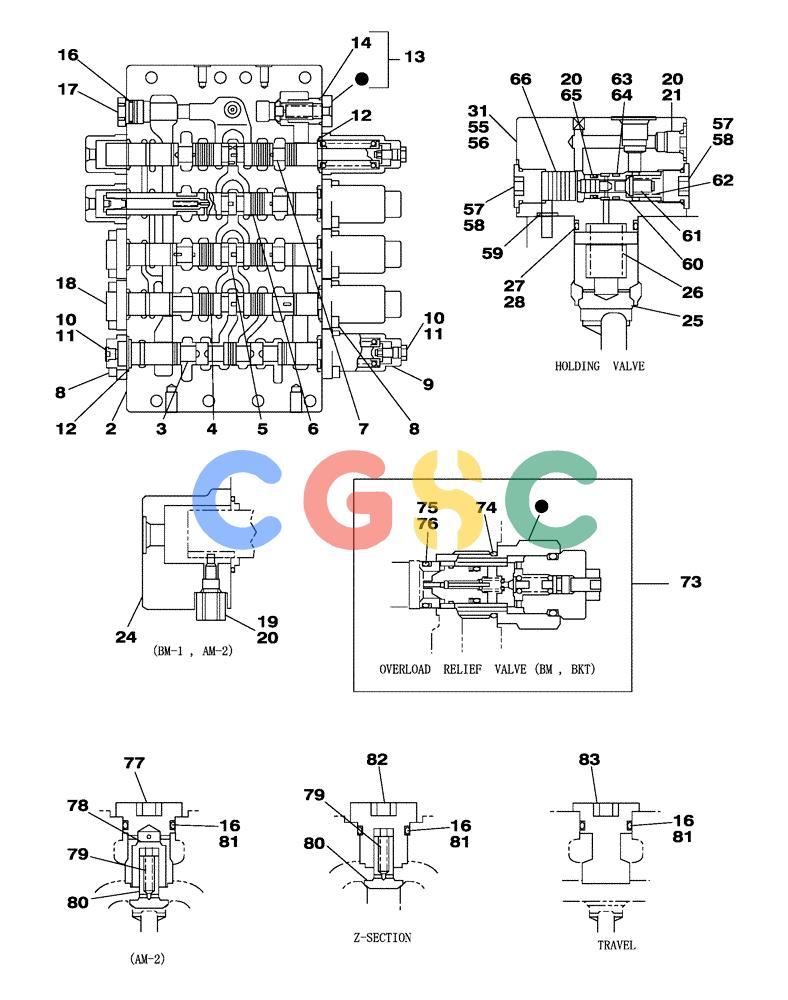

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-203-00[01]) - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
603 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 8. | 108R012Z030N | [20] | BOLT | SUM |
| 9. | LW00268 | [5] | COVER | SUM |
| 10. | 156263A1 | [2] | CAP | SUM |
| 11. | 154475A1 | [2] | O-RING | SUM |
| 12. | LBQ6226 | [10] | O-RING | SUM |
| 13. | LJ00580 | [1] | VALVE, PRESSURE RELI | SUMEF |
| 14. | 154555A1 | [1] | O-RING | SUM |
| 16. | 154535A1 | [6] | O-RING | SUM |
| 17. | LK00239 | [1] | PLUG | SUM |
| 18. | LW00266 | [3] | COVER | SUM |
| 19. | LK00238 | [2] | PLUG | SUM |
| 20. | 154467A1 | [4] | O-RING,10.8mm ID x 2.4mm Width | SUM |
| 21. | 160306A1 | [1] | CAP | SUM |
| 24. | LW00269 | [2] | COVER | SUM |
| 25. | LJ00583 | [1] | VALVE POPPET | SUM |
| 26. | LG00257 | [1] | COMPRESSION SPRING | SUM |
| 27. | 154549A1 | [1] | O-RING | SUM |
| 28. | 154017A1 | [2] | BACK-UP RING | SUMRING, BACK-UP |
| 31. | LA00598 | [4] | SPRING WASHER | SUM |
| 55. | LW00267 | [1] | COVER | SUM |
| 56. | 108R014Z040B | [4] | BOLT | SUM |
| 57. | 160903A1 | [2] | CAP | SUM |
| 58. | 154487A1 | [2] | O-RING | SUM |
| 59. | 154463A1 | [1] | O-RING | SUM |
| 60. | LH00206 | [1] | SLEEVE VALVE | SUM |
| 61. | LJ00584 | [1] | VALVE POPPET | SUM |
| 62. | LG00260 | [1] | COMPRESSION SPRING | SUM |
| 63. | 154402A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 64. | 155063A1 | [1] | O-RING | SUM |
| 65. | 153955A1 | [1] | O-RING | SUM |
| 66. | LJ00597 | [1] | PISTON | SUM |
| 73. | LJ00878 | [4] | VALVE, PRESSURE RELI | SUMEF |
| 74. | 154525A1 | [1] | O-RING | SUM |
| 75. | 153973A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 76. | 154493A1 | [1] | O-RING | SUM |
| 77. | LK00236 | [1] | CAP | SUM |
| 78. | LJ00601 | [1] | CHECK VALVE | SUM |
| 79. | 156079A1 | [4] | SPRING | SUM |
| 80. | LJ00600 | [4] | CHECK VALVE | SUM |
| 81. | 154006A1 | [6] | BACK-UP RING | SUMRING, BACK-UP |
| 82. | LK00231 | [4] | CAP | SUM |
| 83. | LK00232 | [1] | CAP | SUM |
