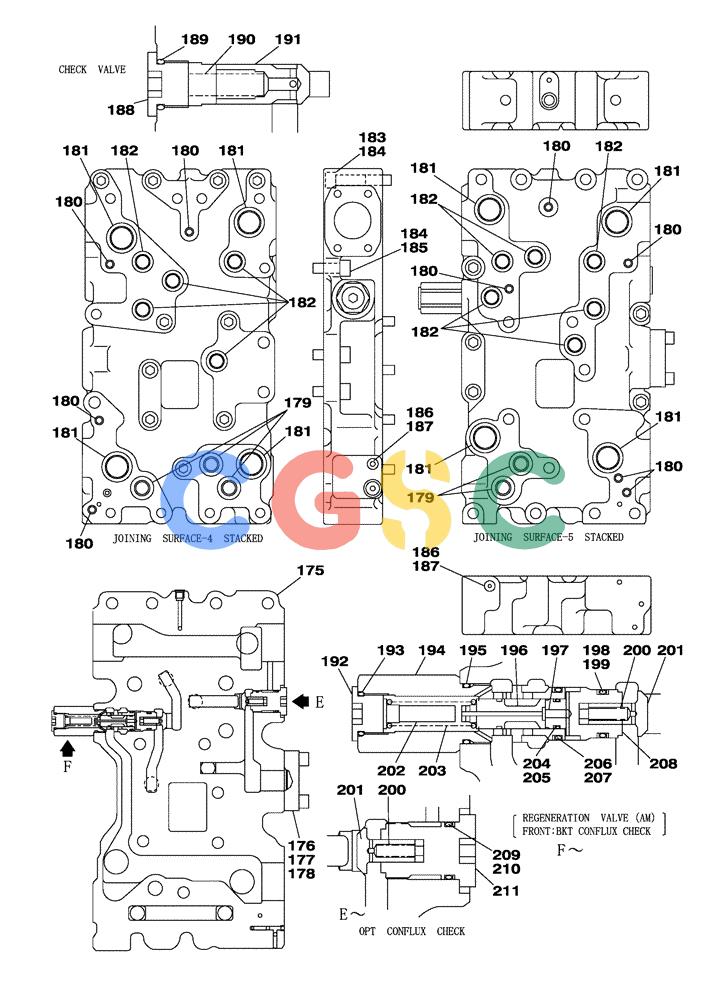

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-206-00[01]) - CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
522 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 175. | NSS | [1] | NOT SERVICED SEPARATELY | CONHousing |
| 176. | LH00208 | [1] | FIXING BRACKET | SUM |
| 177. | LBQ6222 | [1] | O-RING | SUM |
| 178. | 108R014Z045B | [4] | BOLT | SUM |
| 179. | 155211A1 | [5] | O-RING | SUM Superseded by part number: 86529541 |
| 180. | 154465A1 | [10] | O-RING | SUM |
| 181. | 154593A1 | [8] | O-RING | SUM |
| 182. | 154525A1 | [11] | O-RING | SUM |
| 183. | LA00589 | [10] | BOLT,Hex Skt Hd | SUM |
| 184. | LA00597 | [15] | WASHER | SUM |
| 185. | 108R016Z045B | [5] | BOLT | SUM |
| 186. | 160902A1 | [2] | CAP | SUM |
| 187. | 154455A1 | [2] | O-RING | SUM |
| 188. | 156263A1 | [1] | CAP | SUM |
| 189. | 154475A1 | [1] | O-RING | SUM |
| 190. | LG00255 | [1] | COMPRESSION SPRING | SUM |
| 191. | LJ00602 | [1] | CHECK VALVE | SUM |
| 192. | 156262A1 | [1] | CAP | SUM |
| 193. | 155067A1 | [1] | O-RING | SUM |
| 194. | LH00204 | [1] | SLEEVE VALVE | SUM |
| 195. | 154539A1 | [1] | O-RING | SUM |
| 197. | LJ00596 | [1] | JACK PISTON | SUM |
| 198. | 153986A1 | [2] | SPECIAL NUT | SUM |
| 199. | 154508A1 | [1] | O-RING | SUM |
| 200. | 156079A1 | [2] | SPRING | SUM |
| 201. | LJ00600 | [2] | CHECK VALVE | SUM |
| 202. | LS00094 | [1] | GUIDE | SUM |
| 203. | LG00258 | [1] | COMPRESSION SPRING | SUM |
| 204. | 153964A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 205. | 154479A1 | [1] | O-RING | SUM |
| 206. | 153994A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 207. | 154519A1 | [1] | O-RING | SUM |
| 208. | LH00205 | [1] | SLEEVE VALVE | SUM |
| 209. | 154535A1 | [1] | O-RING | SUM |
| 210. | 154006A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 211. | LR00425 | [1] | CAP | SUM |
