纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-272-00[01]) - HAND CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
257 次

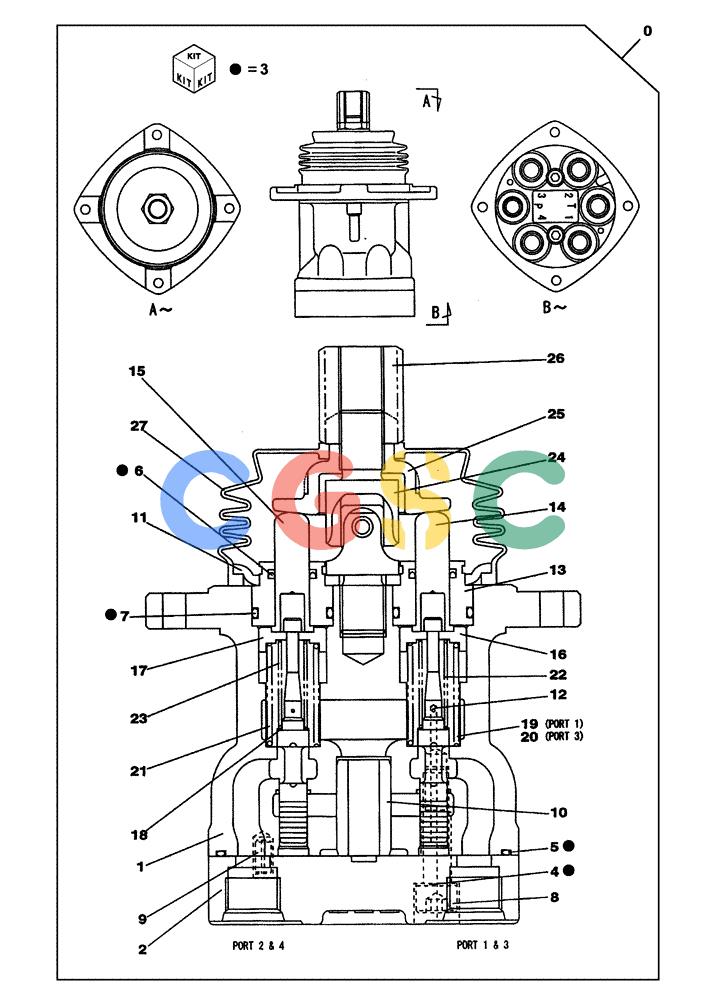

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | KHJ12430 | [1] | CONTROL BLOCK | SUM |
| 1. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 2. | LR00876 | [1] | PLATE | SUM |
| 3. | LE01001 | [1] | SEAL | SUM |
| 5. | LE00748 | [1] | O-RING | SUM |
| 6. | CDP0818 | [4] | OIL SEAL | SUM |
| 7. | 154491A1 | [4] | O-RING | SUM |
| 8. | 862-8035 | [2] | HEX SOC SCREW,M8 x 35mm, Cl 12.9 | SUM |
| 9. | 738-1510 | [1] | LOCK PIN,M5 x 10, Slotted | SUM Superseded by part number: 338W050Z010B |
| 10. | LB00521 | [1] | BUSHING | SUM |
| 11. | LR00537 | [1] | PLATE | SUM |
| 13. | 160070A1 | [4] | PLUG | SUM |
| 14. | 160026A1 | [2] | THREADED ROD | SUM |
| 15. | 160027A1 | [2] | THREADED ROD | SUM |
| 16. | LR00538 | [2] | SPRING SEAT | SUM |
| 17. | LR00539 | [2] | SPRING SEAT | SUM |
| 18. | LA00057 | [4] | SET OF WASHERS | SUM |
| 19. | LG005470 | [1] | SPRING | SUM |
| 20. | LG005480 | [1] | SPRING | SUM |
| 21. | LG005490 | [2] | SPRING | SUM |
| 22. | LG00439 | [2] | COMPRESSION SPRING | SUM |
| 23. | LG00440 | [2] | COMPRESSION SPRING | SUM |
| 24. | 155255A1 | [1] | FLEXIBLE JOINT | SUM |
| 25. | LR00540 | [1] | PLATE | SUM |
| 26. | LUC0051 | [1] | SPECIAL NUT | SUM |
| 27. | LQ00024 | [1] | BELLOWS | SUM Superseded by part number: LQ000580 |
