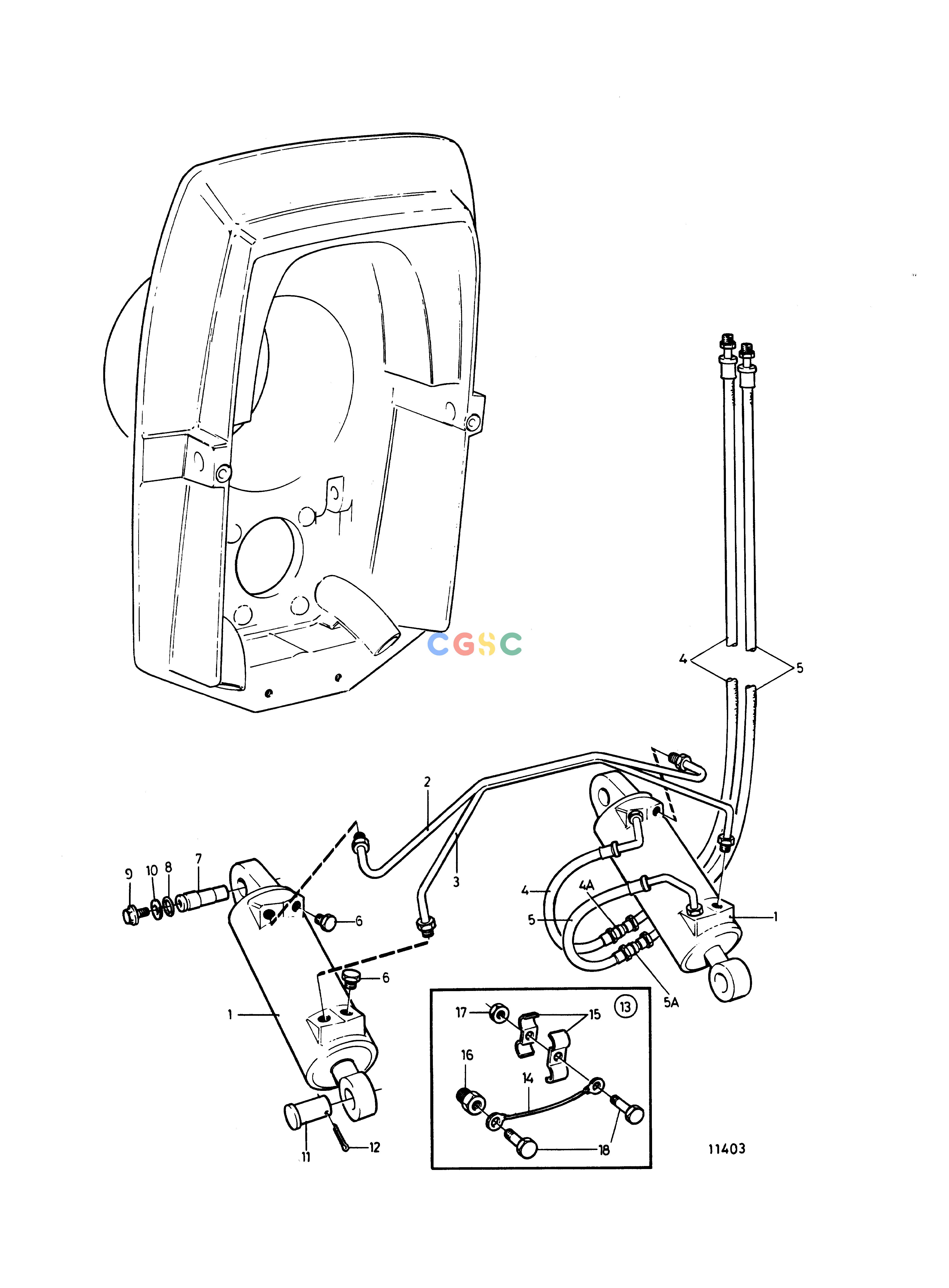

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsHydraulic Cylinders and Ground Cable KitEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
160 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854695
|
[2] |
Hydraulic cylinder
|
|
| 2. |
854696
|
[1] |
Tube
|
|
| 3. |
854697
|
[1] |
Tube
|
|
| 4. |
854700
|
[1] |
Hydraulic hose
|
|
| 4A. |
960214
|
[1] |
O-ring
|
|
| 5. |
854701
|
[1] |
Hydraulic hose
|
|
| 5A. |
960214
|
[1] |
O-ring
|
|
| 6. |
852879
|
[2] |
Plug
|
|
| 7. |
872382
|
[2] |
Spindle
|
|
| 8. |
925053
|
[2] |
O-ring
|
|
| 9. |
853060
|
[2] |
Flange screw
|
|
| 10. |
853059
|
[2] |
Washer
|
|
| 11. |
872126
|
[2] |
Clevis pin
|
See group 4C
|
| 12. |
967707
|
[2] |
Split pin
|
See group 4C
|
| 13. |
854625
|
[1] |
Set
|
|
| 14. |
|
|
|
|
| 15. |
854628
|
[2] |
Clamp
|
|
| 16. |
872207
|
[1] |
Nipple
|
|
| 17. |
944456
|
[1] |
Hexagon nut
|
|
| 18. |
963545
|
[2] |
Hexagon screw
|
|
