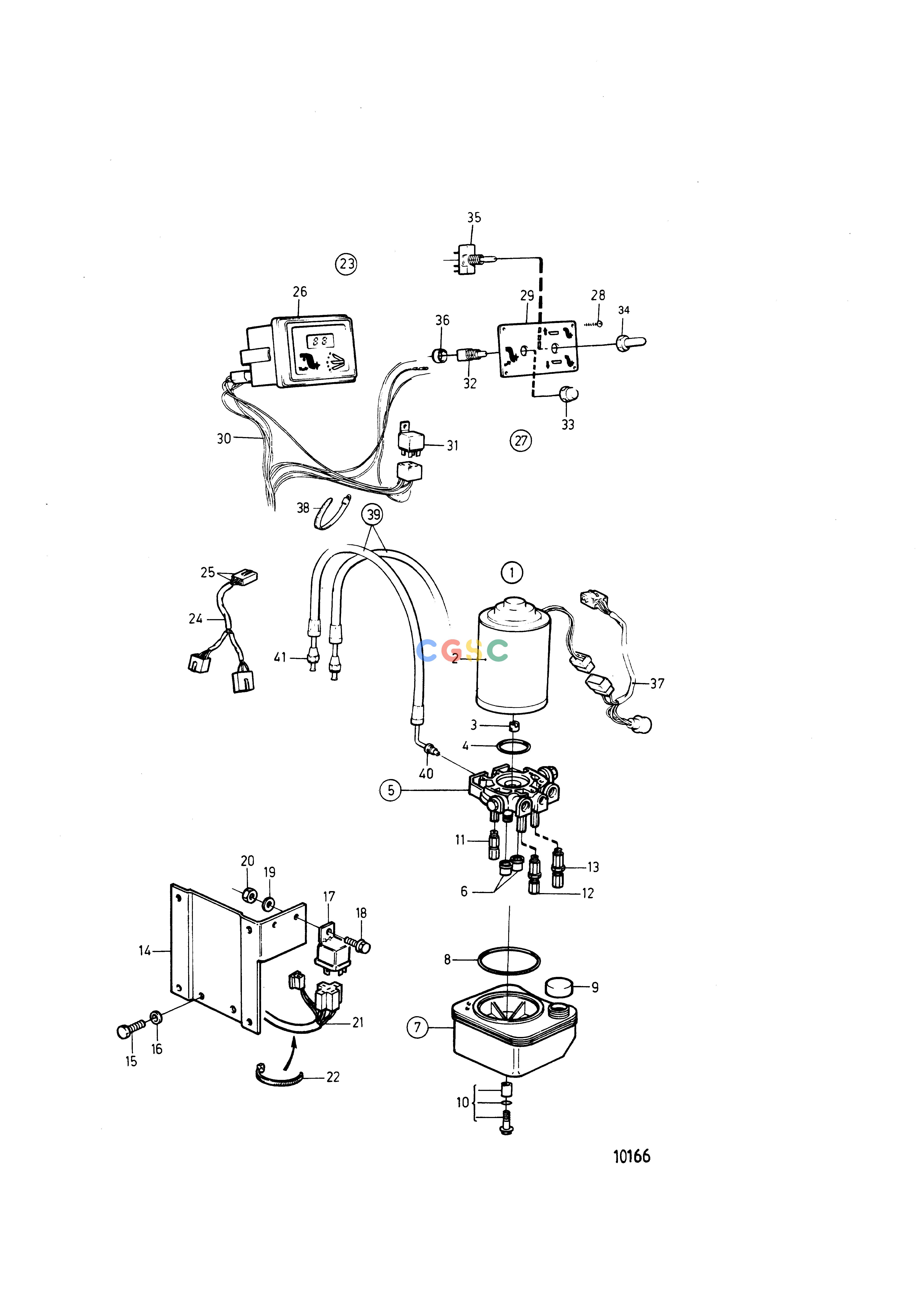

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsHydraulic Pump, Trim Instrument and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
816 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854346
|
[1] |
Hydraulic pump
|
|
| 2. |
854525
|
[1] |
Electric motor
|
|
| 3. |
854526
|
[1] |
Clutch
|
|
| 4. |
854527
|
[1] |
O-ring
|
|
| 5. |
854528
|
[1] |
Valve housing
|
|
| 6. |
854530
|
[2] |
Filter
|
|
| 7. |
854531
|
[1] |
Reservoir
|
|
| 8. |
854532
|
[1] |
O-ring
|
|
| 9. |
854533
|
[1] |
Cover
|
|
| 10. |
854534
|
[1] |
Small parts kit
|
|
| 11. |
854535
|
[1] |
Hydraulic pump
|
|
| 12. |
854536
|
[1] |
High-pressure unit
|
|
| 13. |
854537
|
[1] |
Pressure box
|
|
| 14. |
854438
|
[1] |
Bracket
|
|
| 15. |
970945
|
[2] |
Hexagon screw
|
|
| 16. |
941908
|
[2] |
Spring washer
|
|
| 17. |
854357
|
[2] |
Relay
|
|
| 18. |
948663
|
[2] |
Flange screw
|
|
| 19. |
941905
|
[2] |
Spring washer
|
|
| 20. |
955780
|
[2] |
Hexagon nut
|
|
| 21. |
|
|
|
See group 3
|
| 22. |
948210
|
[1] |
Cable tie
|
|
| 23. |
853067
|
[1] |
Instrument panel
|
For dual station
|
| 24. |
|
|
|
|
| 25. |
|
|
|
See group 3
|
| 26. |
828731
|
[1] |
Trimmer
|
Repl by 872571
|
| 27. |
853866
|
[1] |
Control panel
|
|
| 28. |
828647
|
[4] |
Screw
|
|
| 29. |
853865
|
[1] |
Control panel
|
|
| 30. |
|
|
|
See group 3
|
| 31. |
853545
|
[1] |
Relay kit
|
|
| 32. |
828584
|
[1] |
Toggle switch
|
|
| 33. |
828586
|
[1] |
Nut
|
|
| 34. |
828743
|
[1] |
Blind nut
|
|
| 35. |
828742
|
[1] |
Switch
|
|
| 36. |
828740
|
[2] |
Spacer washer
|
|
| 37. |
853032
|
[1] |
Cable block
|
|
| 37. |
948294
|
[1] |
Housing
|
9-pol
|
| 37. |
965822
|
[1] |
Cable terminal
|
3,5X1X2,5
|
| 37. |
853498
|
[1] |
Anode kit
|
3-pol
|
| 37. |
853521
|
[1] |
Cable terminal
|
For 853498
|
| 38. |
949666
|
[1] |
Cable tie
|
|
| 39. |
852839
|
[2] |
Hose
|
|
| 40. |
87698
|
[2] |
Fitting screw
|
|
| 41. |
954320
|
[2] |
Fitting nut
|
|
