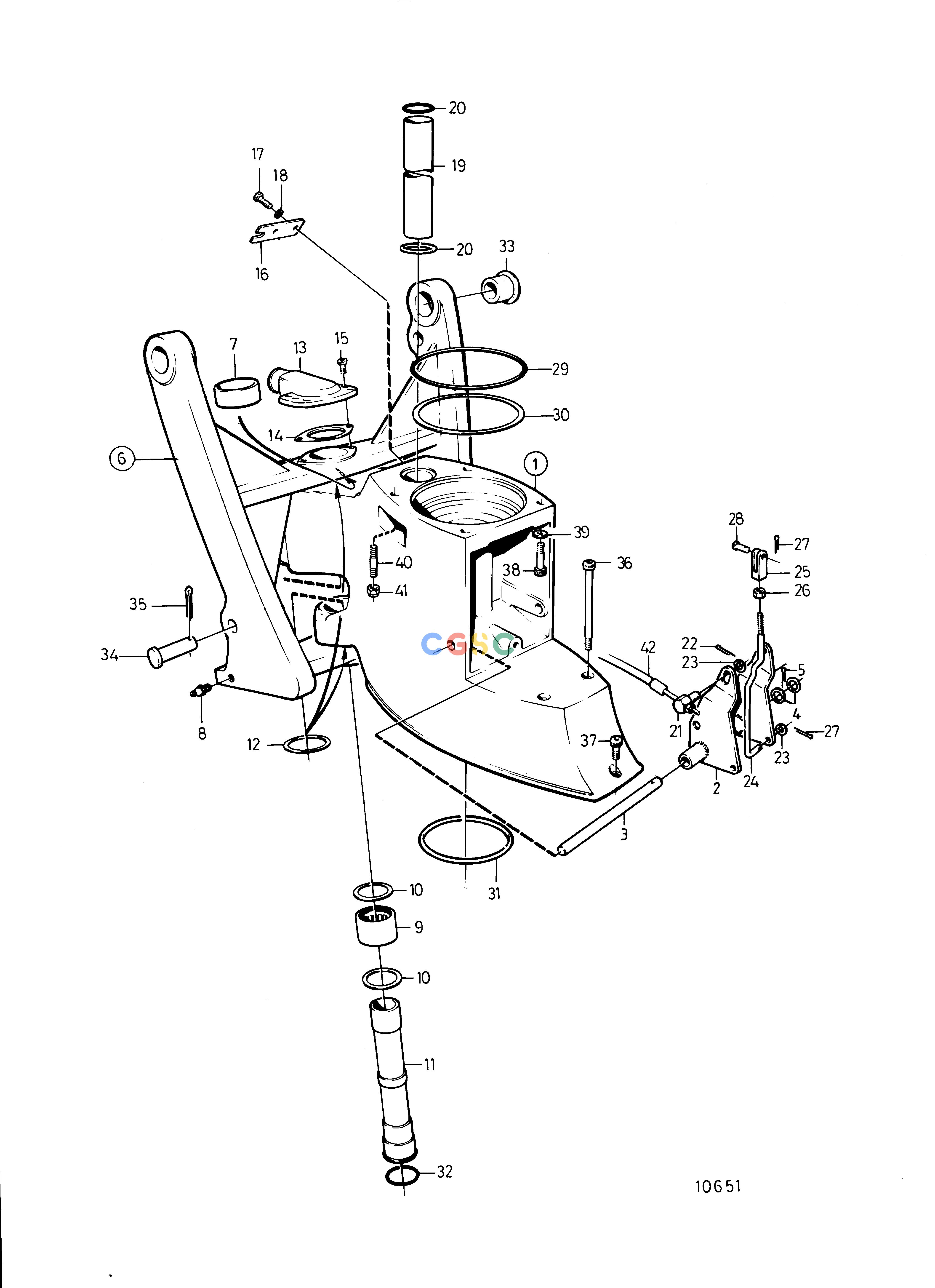

沃尔沃零件查询430; 430A; 430B; 431A; 431B; 432A; 434A; 500B; 501B; 570A; 572A; 740B; DP-A; DP-A1; DP-A2; DP-C; DP-C1; DP-C1 1.95; DP-C1 2.30; DP-D; DP-D1; DP-D1TransmissionsIntermediate HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
340 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
854937
|
[1] |
Intermediate housing
|
|
| 2. |
897829
|
[1] |
Gear yoke
|
|
| 3. |
897447
|
[1] |
Shaft
|
|
| 4. |
897511
|
[2] |
Washer
|
|
| 5. |
17253
|
[1] |
Split pin
|
|
| 6. |
872034
|
[1] |
Fork
|
|
| 7. |
853062
|
[1] |
Bearing bushing
|
|
| 8. |
940194
|
[1] |
Lubricating nipple
|
|
| 9. |
183391
|
[1] |
Needle roller bearin
|
|
| 10. |
181620
|
[2] |
Sealing ring
|
|
| 11. |
814386
|
[1] |
Steering knuckle
|
|
| 12. |
897696
|
[2] |
Washer
|
|
| 13. |
854031
|
[1] |
Hose connection
|
|
| 14. |
814356
|
[1] |
Seal
|
|
| 15. |
941813
|
[2] |
Hex. socket screw
|
|
| 16. |
853078
|
[1] |
Cable attachment
|
|
| 17. |
940168
|
[2] |
Hexagon screw
|
|
| 18. |
940191
|
[2] |
Washer
|
|
| 19. |
897644
|
[1] |
Tube
|
|
| 20. |
125017
|
[2] |
O-ring
|
|
| 21. |
804312
|
[1] |
Cube
|
|
| 22. |
17276
|
[1] |
Split pin
|
|
| 23. |
940191
|
[2] |
Washer
|
|
| 24. |
897448
|
[1] |
Control rod
|
|
| 25. |
813954
|
[1] |
Fork
|
|
| 26. |
940190
|
[1] |
Hexagon nut
|
|
| 27. |
17253
|
[2] |
Split pin
|
|
| 28. |
192662
|
[1] |
Split pin
|
|
| 29. |
925259
|
[1] |
O-ring
|
|
| 30. |
941826
|
[1] |
Shim
|
TH=0,05mm
|
| 30. |
941827
|
[1] |
Shim
|
TH=0.20mm
|
| 30. |
948230
|
[1] |
Shim
|
TH=0.35mm
|
| 31. |
925256
|
[1] |
O-ring
|
|
| 32. |
941820
|
[1] |
O-ring
|
|
| 33. |
876507
|
[1] |
Bushing kit
|
|
| 34. |
872126
|
[2] |
Clevis pin
|
|
| 35. |
967707
|
[2] |
Split pin
|
|
| 36. |
941808
|
[2] |
Hex. socket screw
|
|
| 37. |
941809
|
[1] |
Hex. socket screw
|
|
| 38. |
959456
|
[2] |
Hex. socket screw
|
|
| 39. |
853095
|
[2] |
Washer
|
|
| 40. |
|
|
|
Included in upper gear unit.
|
| 41. |
941885
|
[2] |
Lock nut
|
|
| 42. |
|
|
|
See group 9
|
