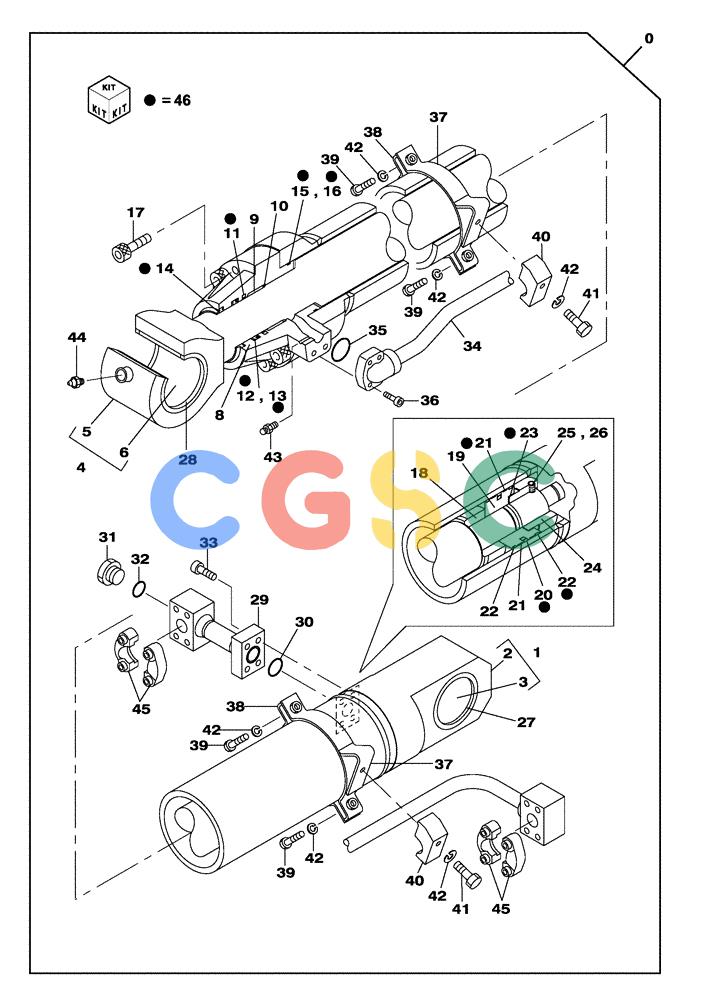

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (08-308-00[01]) - BUCKET CYLINDER - BOOM (8.40 M) - DIPPER (3.60 - 4.40 - 5.60 M) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
792 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | KUV10040 | [1] | BUCKET CYLINDER | SUM |
| 1. | LR00461 | [1] | HYD CYL SLEEVE | SUM |
| 2. | NSS | [1] | NOT SERVICED SEPARATELY | CON |
| 3. | KUV0037 | [1] | BUSHING | SUM |
| 4. | LB010950 | [1] | PISTON ROD | SUM |
| 6. | KUV0035 | [1] | BUSHING | SUM |
| 8. | LU002210 | [1] | CYLINDER END CAP | SUM |
| 9. | LA00624 | [1] | LOCKING RING | SUM |
| 10. | LMU0120 | [1] | RING | SUM |
| 11. | LE012410 | [1] | RING | SUM |
| 12. | LE00485 | [1] | WIPER SEAL | SUM |
| 13. | LE00633 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 14. | LE01006 | [1] | OIL SCRAPER RING | SUM Superseded by part number: LE015210 |
| 15. | 154861A1 | [1] | O-RING | SUM |
| 16. | LE00636 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 17. | 108R030W100N | [8] | BOLT | SUMM30 x 100 |
| 18. | LE012070 | [1] | WASHER, SEALING | SUMSEAL WASHER |
| 19. | LJ00628 | [1] | JACK PISTON | SUM |
| 20. | LE00637 | [1] | RING | SUM |
| 21. | LE012470 | [2] | SCRAPER RING | SUM |
| 22. | LE00639 | [2] | SEALING STRIP | SUM |
| 23. | LH00214 | [1] | SHIM | SUM |
| 24. | LA00799 | [1] | NUT | SUM |
| 25. | LUU0144 | [1] | SCREW | SUM |
| 26. | LPU0095 | [1] | BALL | SUM |
| 27. | LE00653 | [2] | WIPER SEAL | SUM |
| 28. | LE00654 | [2] | WIPER SEAL | SUM |
| 29. | LR00448 | [1] | PIPE ASSY. | SUM |
| 30. | 154595A1 | [1] | O-RING | SUM |
| 31. | LK00249 | [1] | PLUG | SUM |
| 32. | 154568A1 | [1] | O-RING | SUM |
| 33. | 108R016Z060N | [4] | BOLT | SUMM16 x 60 |
| 34. | LR012340 | [1] | TUBE | SUM |
| 35. | 154579A1 | [1] | O-RING | SUM |
| 36. | LA00751 | [4] | BOLT,Hex Skt Hd | SUMM14 x 90 |
| 37. | LD001210 | [2] | CLAMP BRACKET | SUM |
| 38. | LD001110 | [2] | CLAMP BRACKET | SUM |
| 39. | 828-14050 | [4] | BOLT,Hex, M14 x 2 x 50mm, Cl 10.9 | CASM14 x 50 |
| 40. | 155736A1 | [2] | HALF-FLANGE | SUM Superseded by part number: LS003200 |
| 41. | LA00616 | [2] | BOLT | SUM |
| 42. | 892-16014 | [6] | LOCK WASHER,M14, Hvy | SUM |
| 43. | LJ00624 | [1] | BLEEDER | SUM |
| 44. | 153630A1 | [1] | LUBE NIPPLE | SUM |
| 46. | LZ007100 | [1] | SEAL KIT | SUM |
