神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-030) - DOZER ANGLE CYLINDER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
556 次

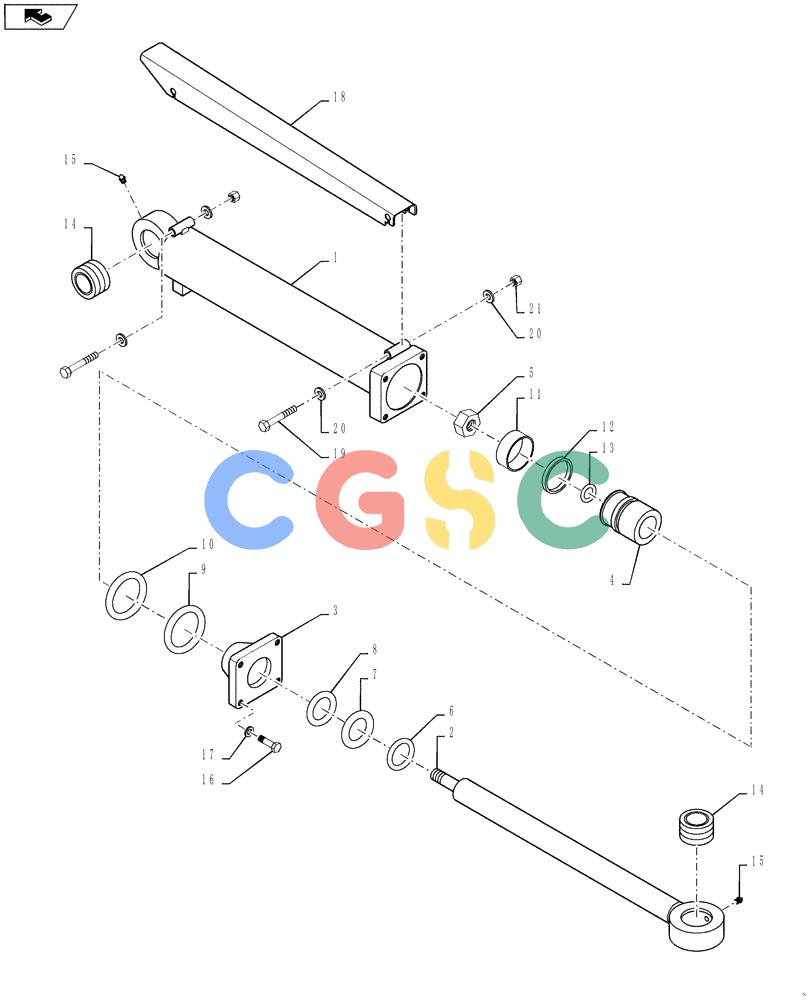

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | AW317-002-559 | [1] | CYLINDER | KOBHyd Assy - Angle Includes 1-21 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBarrel |
| 2. | AW317-100-263 | [1] | ROD | KOB |
| 3. | AW719-400-018 | [1] | HEAD | KOBCylinder |
| 4. | AW719-501-024 | [1] | PISTON | KOB |
| 5. | AW545-029-003 | [1] | Grip 1-1/4-12 UNF | Grip 1-1/4-12 UNF |
| 6. | NSS | [1] | NOT SOLD SEPARAT | CONRod Wiper (Order Kit) |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONRod Steal (Order Kit) |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONBuffer Seal (Order Kit) |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring (Order Kit) |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONBack-Up Ring (Order Kit) |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONWear Ring (Order Kit) |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONPiston Seal (Order Kit) |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring (Order Kit) |
| 14. | AW511-065-009 | [2] | BEARING | KOBSpherical |
| 15. | AW563-041-002 | [2] | Grease Fitting | |
| 16. | AW545-059-048 | [4] | BOLT | KOB5/8-11 x 2 1/4" |
| 17. | AW545-077-002 | [4] | WASHER | KOB5/8" |
| 18. | AW317-300-064 | [1] | GUARD | KOBCylinder |
| 19. | AW545-059-021 | [2] | 1/2-20 x 3 1/2" | |
| 20. | AW545-072-005 | [4] | WASHER | KOBFlat 1/2" |
| 21. | AW545-072-003 | [2] | 1/2-20 UNF Nylock Nut | |
| . . | AW558-021-020 | [1] | SEAL KIT | KOBContains Ref 6-13 |
