神钢零件查询(ED180) - BLADE RUNNER EXCAVATOR/DOZER ASN YLU0001 (1/99-12/01) (12-029) - DOZER LIFT CYLINDER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
874 次

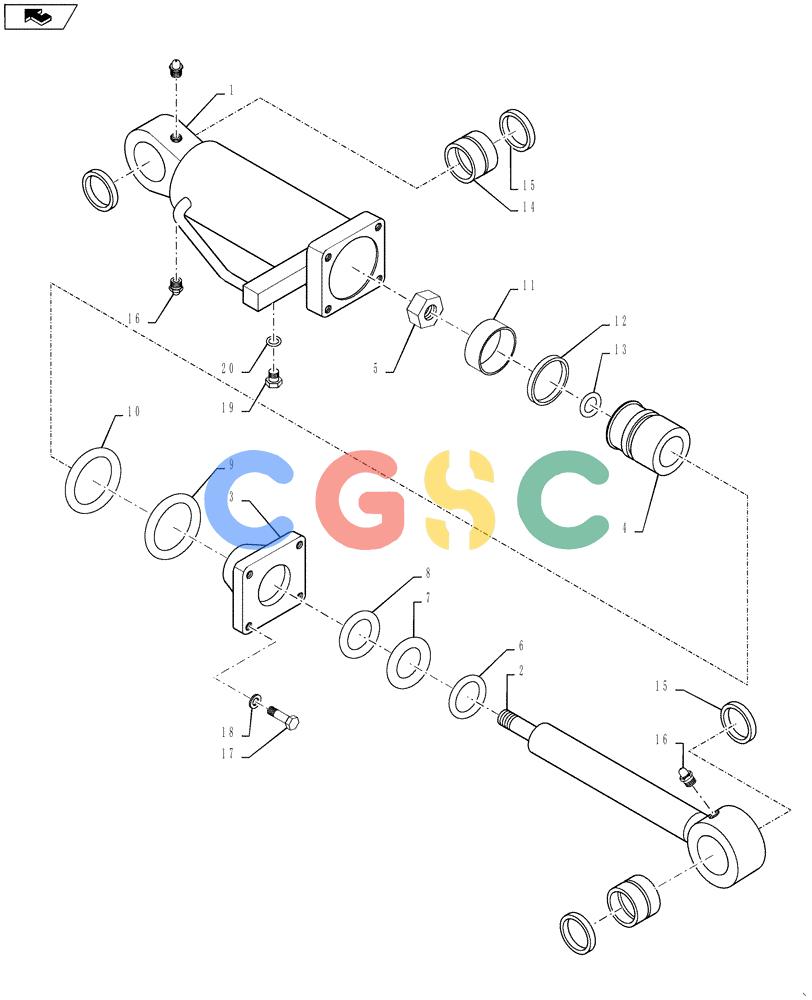

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | AW317-002-557 | [1] | LIFT CYLINDER | KOBComplete Assy - Includes 1-20 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONBarrel |
| 2. | AW317-100-262 | [1] | ROD | KOB |
| 3. | AW719-400-022 | [1] | HEAD | KOB |
| 4. | AW719-501-027 | [1] | Piston | Piston |
| 5. | AW545-029-004 | [1] | NUT | KOBGrip 1-1/2-12 UNF |
| 6. | AW530-025-012 | [1] | | |
| 7. | AW530-024-007 | [1] | | |
| 8. | AW530-024-023 | [1] | Buffer | Buffer |
| 9. | AW535-030-244 | [1] | O-RING | KOB |
| 10. | AW535-040-002 | [1] | BACK-UP RING | KOB |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONWear Ring (Order Kit) |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONPiston Seal (Order Kit) |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONO-Ring (Order Kit) |
| 14. | AW713-030-184 | [2] | BUSHING | KOB |
| 15. | AW570-025-019 | [4] | | |
| 16. | AW563-041-002 | [3] | | |
| 17. | AW545-059-048 | [4] | BOLT | KOB5/8-11 X 2 1/4" |
| 18. | AW545-077-002 | [4] | WASHER | KOB5/8" |
| 19. | AW551-059-008 | [4] | | |
| 20. | AW545-029-004 | [4] | NUT | KOB |
| . . | AW558-021-025 | [1] | SEAL KIT | KOBContains Ref 6-13 |
