纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (09-004-00[01]) - COUNTERWEIGHT - SOUNDPROOFING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
489 次

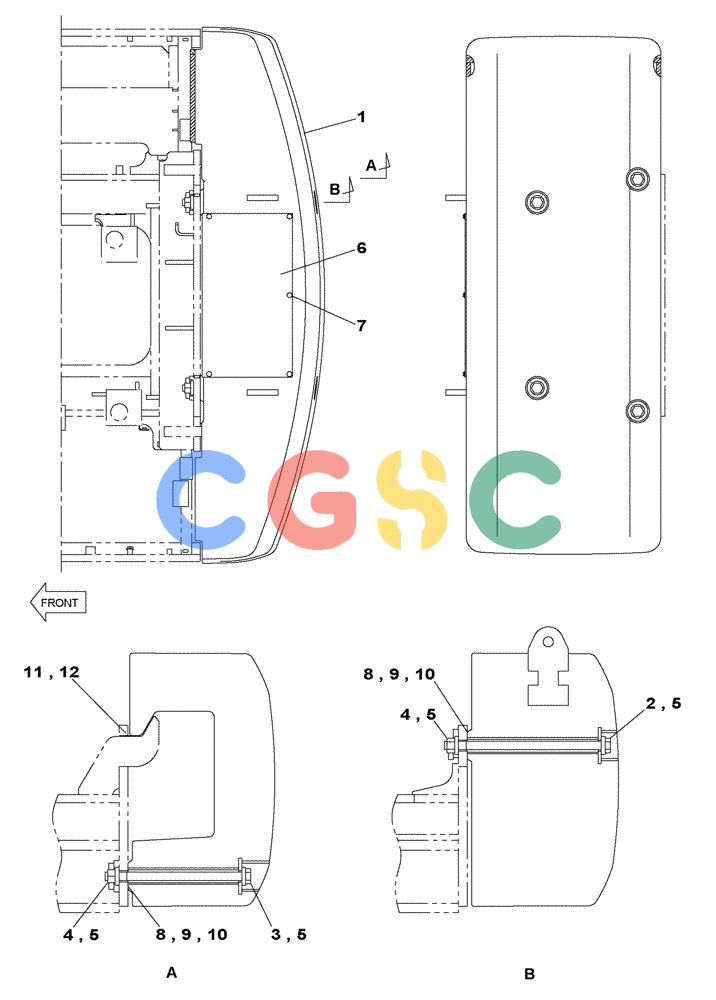

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUB0191Y1 | [1] | WEIGHT PACKAGE | SUM Superseded by part number: KUB0191Y2 |
| 2. | KUB10300 | [2] | BOLT | SUMM42 x 810 |
| 3. | 163649A1 | [2] | BOLT,High Strength, Hex, M42 x 700mm | SUMM42 x 700 |
| 4. | 166UR042VN | [4] | NUT | SUMU M42 Superseded by part number: KUB10970 |
| 5. | 150400A1 | [8] | WASHER | SUMW42 Superseded by part number: KUB10960 |
| 6. | KUB0133Y1 | [1] | COVER | SUM |
| 7. | 152718A1 | [5] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 8. | 151020A1 | [1] | ADJUSTING PLATE | SUM2.0 mm |
| 9. | 151023A1 | [1] | ADJUSTING PLATE | SUM3.2 mm |
| 10. | 151028A1 | [1] | ADJUSTING PLATE | SUM4.5 mm |
| 11. | KUB0110 | [1] | SHIM,2.3mm Thk | SUM |
| 12. | KUB0111 | [1] | SHIM,3.2mm Thk | SUM |
