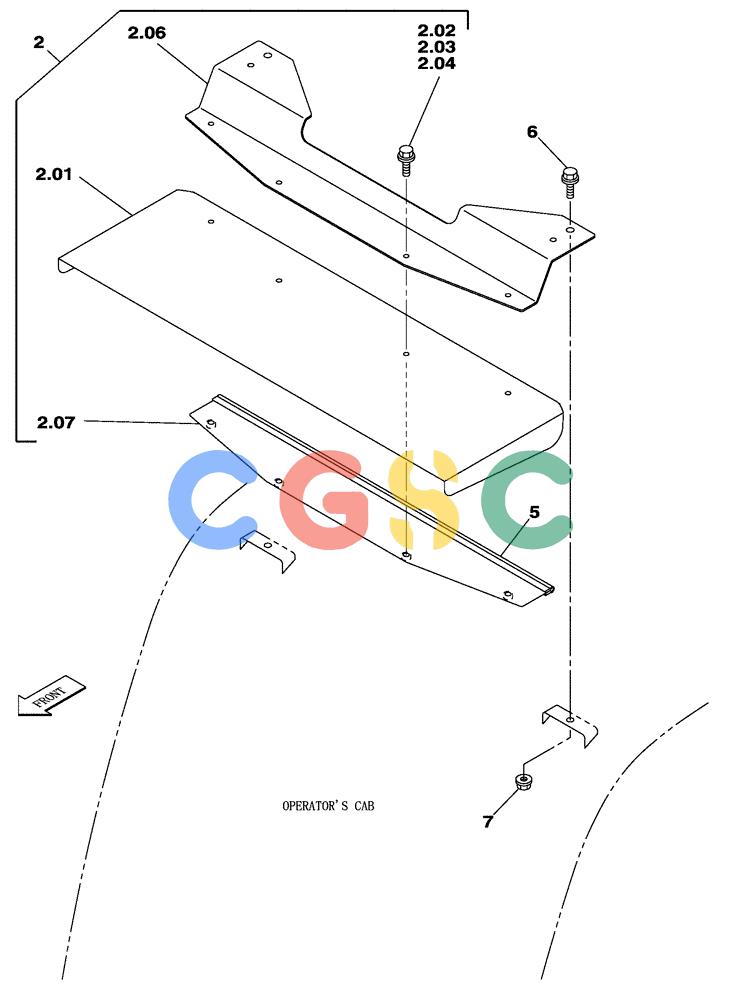

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR TIER 3 (7/06-) (09-042-00[01]) - CAB - VISOR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
838 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 2. | KHN2999 | [1] | DEFLECTOR | SUM |
| 2.01. | KHN2899 | [1] | DEFLECTOR | SUM |
| 2.02. | 627-8020 | [4] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | CAS Superseded by part number: 43233 |
| 2.03. | 183-108VR | [4] | SPRING WASHER | SUMSW 8 |
| 2.04. | 895-11008 | [4] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 2.06. | KHN2898 | [1] | BRACKET | SUM |
| 2.07. | KHN2900 | [1] | HOLDER | SUM |
| 5. | KHN2901 | [1] | RUBBER STRIP | SUM |
| 6. | 166352A1 | [2] | BOLT | SUM |
| 7. | 150475A1 | [2] | FLANGE NUT | SUMN M12 |
