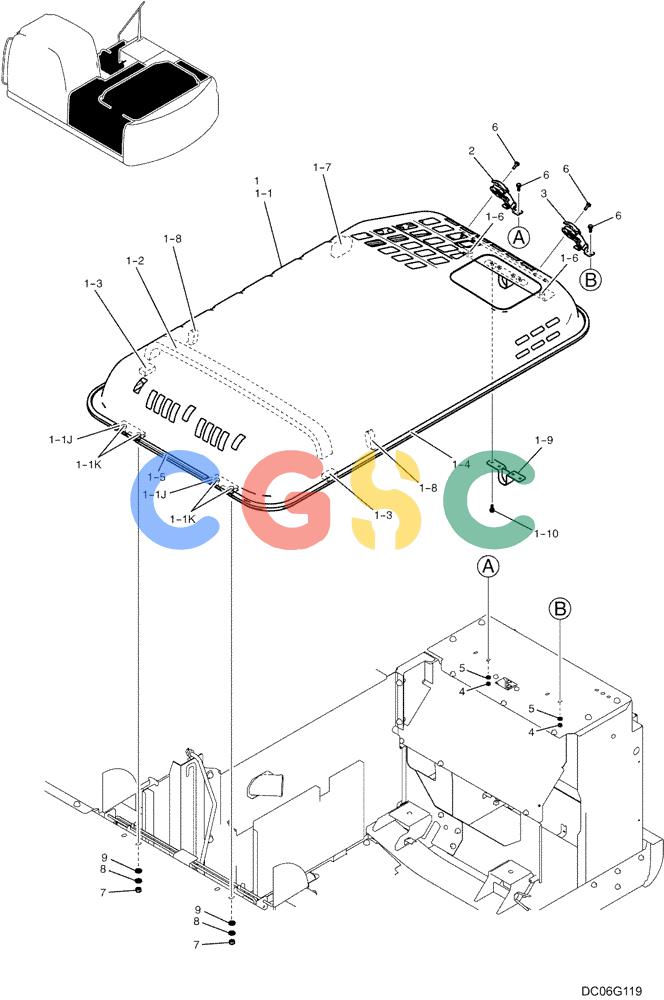

纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (1.061[00]) - GUARD INSTALLATION, (BONNET) (YN21C00099F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
356 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN22C00034F1 | [1] | Bonnet (Hood) Assembly, Incls. Refs. 1-1 - 1-10 | |
| 1-1. | YN22C01309P2 | [1] | HOOD | KOBIncls. Refs. 1-1J & 1-1K, Replaces YN22C01309P1 -- Change 6 hole position Date 03/17/2006 - 02/26/2007 Superseded by part number: YN22C01309P3 |
| 1-1J. | LC22C01028P1 | [2] | HINGE | KOB |
| 1-1K. | ZS12C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm Superseded by part number: ZS18C12030 |
| 1-2. | YN22C01177P1 | [1] | INSULATOR | SM Superseded by part number: LQ22C01189P1 |
| 1-3. | YN22C01182P1 | [2] | INSULATOR | SM |
| 1-4. | YN22C01283D4 | [1] | SEALING STRIP,5290mm L | SMSTRIP, WEATHER |
| 1-5. | YR21C01251D5 | [1] | SEALING STRIP | SMSTRIP, WEATHER |
| 1-6. | 2416T13435 | [2] | RUBBER | KOB |
| 1-7. | 2406Z304 | [1] | HANDLE | KOB |
| 1-8. | YN22C01297P1 | [2] | FOAM INSULATION | KOB |
| 1-9. | YN22C01287P1 | [1] | PLATE | KOB |
| 1-10. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 2. | LC21C01811P2 | [1] | LATCH | SMCatch, Replaces LC21C01811P1 |
| 3. | LC21C01812P2 | [1] | HANDLE | SMCatch, Replaces LC21C01812P1 Superseded by part number: LC21C01811P2 |
| 4. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 5. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 7. | ZN18C12010 | [4] | NUT | KOBM12x1.75mm |
| 8. | 2418T10357 | [4] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 9. | YN21C03749P1 | [2] | SHIM | KOB(1.6) |
