纽荷兰零件查询(E215B) - CRAWLER EXCAVATOR - TIER 3 (NA) - ASN N7DA21001 (1/07-) (9.032[00]) - FAN DRIVE INSTALLATION New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
221 次

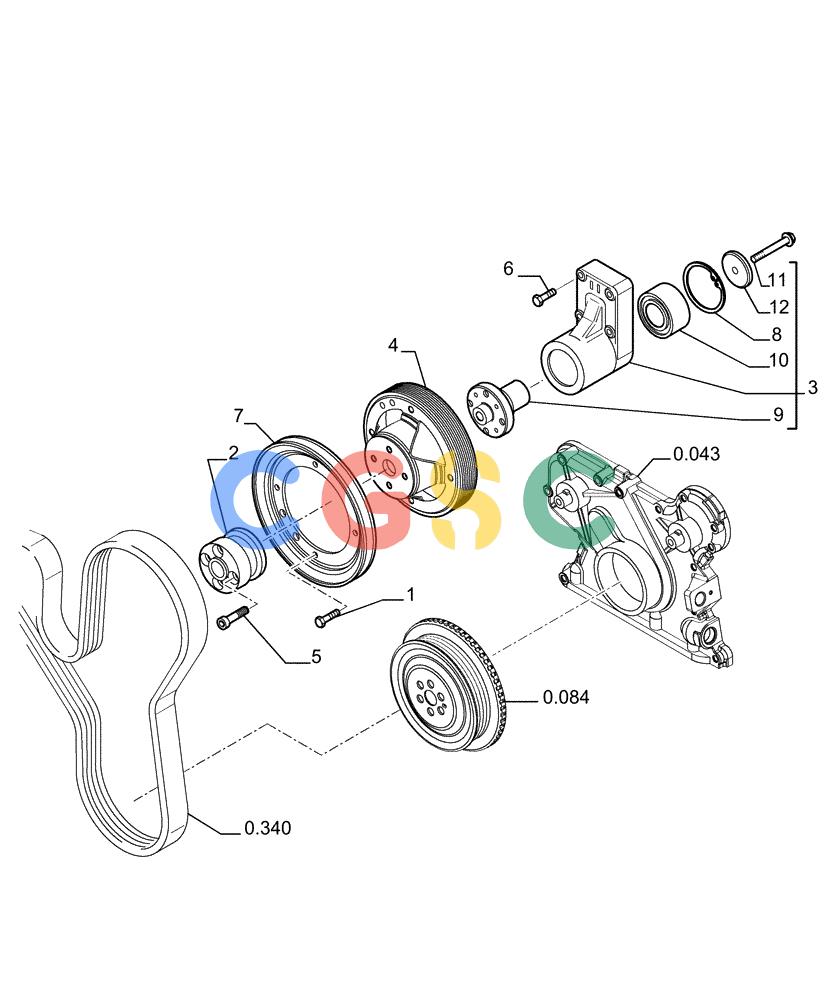

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 16673635 | [4] | BOLT,Hex, M8 x 1.25 x 20mm, Full Thd | TORReplaces 16586324 Superseded by part number: 16978124 |
| 2. | 2854320 | [1] | SPACER | TORReplaces 504054732 Superseded by part number: 504054732 |
| 3. | 2855881 | [1] | FAN HOUSING | TOR Superseded by part number: 504202791 |
| 4. | 2853233 | [1] | PULLEY,178mm OD | TORReplaces 500389850 Superseded by part number: 500389850 |
| 5. | 4899109 | [4] | SCREW,Hex, M10 x 1.5 x 80 | BAS |
| 6. | 4899078 | [4] | SCREW,Hex Flg, M8 x 1.25 x 45 | TORM08x1.25x45mm, Replaces 4895323 -- M08x1.25x40mm |
| 7. | 2853447 | [1] | PULLEY,228mm OD | SM Superseded by part number: 500389865 |
| 8. | 2852171 | [1] | SNAP RING | TORReplaces 500395697 Superseded by part number: 32324 |
| 9. | 4892426 | [1] | HUB | TOR |
| 10. | 4892732 | [1] | BALL BEARING,34mm ID x 64mm OD x 37mm W | TOR |
| 11. | 16592824 | [1] | BOLT,M10 x 1.5 x 70mm | TOR Superseded by part number: 16676834 |
| 12. | 4890732 | [1] | RETAINER,11.50mm ID x 52mm OD x 7mm | TOR |
