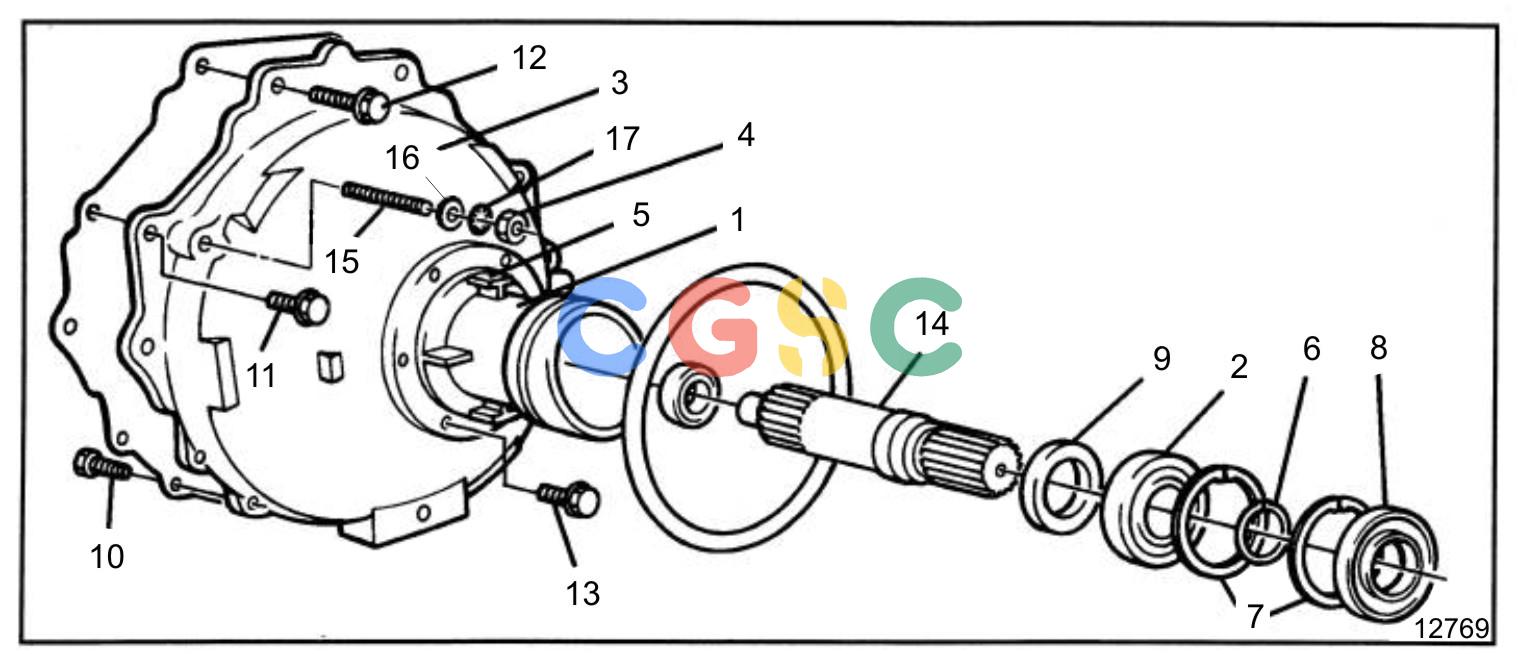

沃尔沃零件查询5.0FIPHUBCE; 5.0FIPHUCCE; 5.0FIPHUECE; 5.0FIPHURCE; 5.0FIPHUSCE; 5.0FLPHUB; 5.0FLPHUC; 5.0FLPHUE; 5.0FLPHUR; 5.0FLPHUS; 5.8FIIHUBCE; 5.8FIIEngineFlywheel Housing and Primary ShaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
902 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3851963
|
[1] |
Flywheel housing
|
Replaced by 3856698
|
| 1. |
3856698
|
[1] |
Flywheel housing
|
Last version
|
| 2. |
3851019
|
[1] |
Ball bearing, primary shaft
|
|
| 3. |
3853003
|
[1] |
Cover
|
|
| 4. |
3852065
|
[2] |
Nut, ground stud, flywheel hsg
|
|
| 5. |
804262
|
[1] |
Plug, bearing housing
|
|
| 6. |
914462
|
[1] |
Snap ring, primary shaft
|
|
| 7. |
914533
|
[2] |
Snap ring, primary shaft
|
|
| 8. |
958860
|
[1] |
Sealing ring, primary shaft
|
|
| 9. |
958859
|
[1] |
Sealing ring, primary shaft
|
|
| 10. |
3853398
|
[2] |
Flange screw, flywheel cover
|
|
| 11. |
3853558
|
[2] |
Screw, flywheel hsg to engine
|
|
| 12. |
3853626
|
[2] |
Flange screw, flywheel hsg to engine
|
|
| 13. |
191844
|
[6] |
Hexagon screw
|
|
| 14. |
873013
|
[1] |
Primary shaft
|
|
| 15. |
3852754
|
[2] |
Stud, flywheel hsg to engine ground
|
|
| 16. |
3852058
|
[2] |
Washer, ground stud
|
|
| 17. |
3852002
|
[2] |
Tab washer, ground stud
|
|
