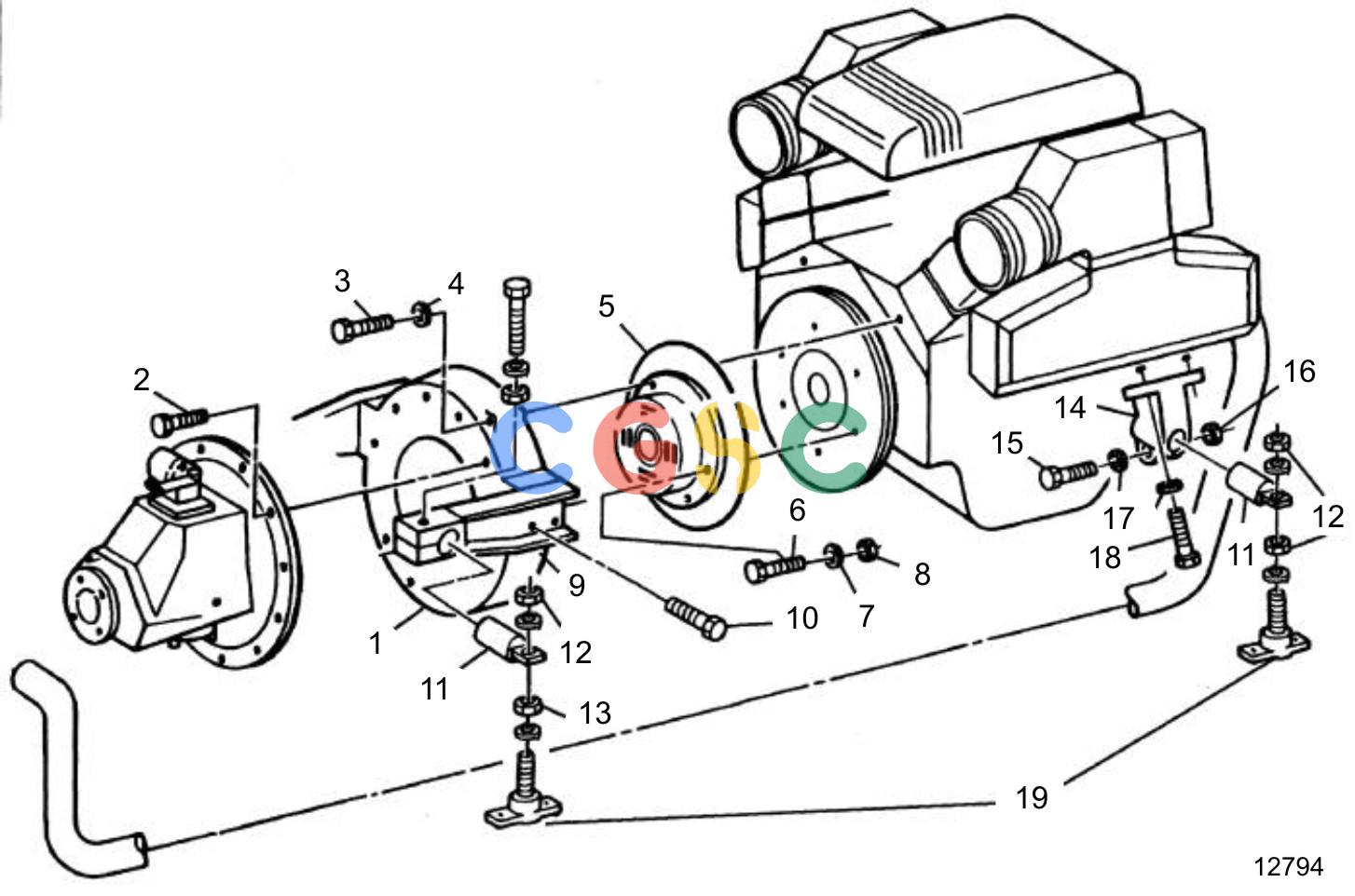

沃尔沃零件查询5.0FIPHUBCE; 5.0FIPHUCCE; 5.0FIPHUECE; 5.0FIPHURCE; 5.0FIPHUSCE; 5.0FLPHUB; 5.0FLPHUC; 5.0FLPHUE; 5.0FLPHUR; 5.0FLPHUS; 5.8FIIHUBCE; 5.8FIIEngineInboard Mounting ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3851723
|
[1] |
Flywheel housing
|
|
| 1. |
3853003
|
[1] |
Cover
|
Not shown
|
| 1. |
3852421
|
[5] |
Screw, flywheel cover to hsg
|
Not shown
|
| 2. |
|
|
|
Part not sold
|
| 3. |
955555
|
[4] |
Hexagon screw, flywheel housing to engine
|
|
| 4. |
941909
|
[6] |
Spring washer, screw, flywheel housing
|
|
| 5. |
3850520
|
[1] |
Oscillation damper, flywheel
|
|
| 6. |
3854495
|
[6] |
Stud, dampener to flywheel
|
|
| 7. |
3854496
|
[6] |
Washer, dampener to flywheel
|
|
| 8. |
3854497
|
[6] |
Lock nut, dampener to flywheel
|
|
| 9. |
3851758
|
[2] |
Adapter kit, rear mount
|
|
| 10. |
965187
|
[8] |
Flange screw, rear engine mount to flywheel hsg
|
|
| 11. |
3807621
|
[4] |
Anchorage
|
|
| 12. |
955860
|
[4] |
Hexagon nut
|
|
| 13. |
955860
|
[2] |
Hexagon nut, rear mount
|
|
| 14. |
3851757
|
[2] |
Engine anchorage, front mount to engine block
|
|
| 15. |
955551
|
[4] |
Hexagon screw, mount assy, pin clamp
|
|
| 16. |
950355
|
[4] |
Lock nut, mount assy, pin clamp
|
|
| 17. |
941909
|
[4] |
Spring washer, mount assy, spring clamp
|
|
| 18. |
3853626
|
[4] |
Flange screw, front mount bracket to engine
|
|
| 19. |
841247
|
[1] |
Dowel
|
|
| 20. |
955902
|
[4] |
Washer
|
|
| 20. |
941914
|
[4] |
Spring washer
|
|
